5-12
POWR
E
TIMING BELT

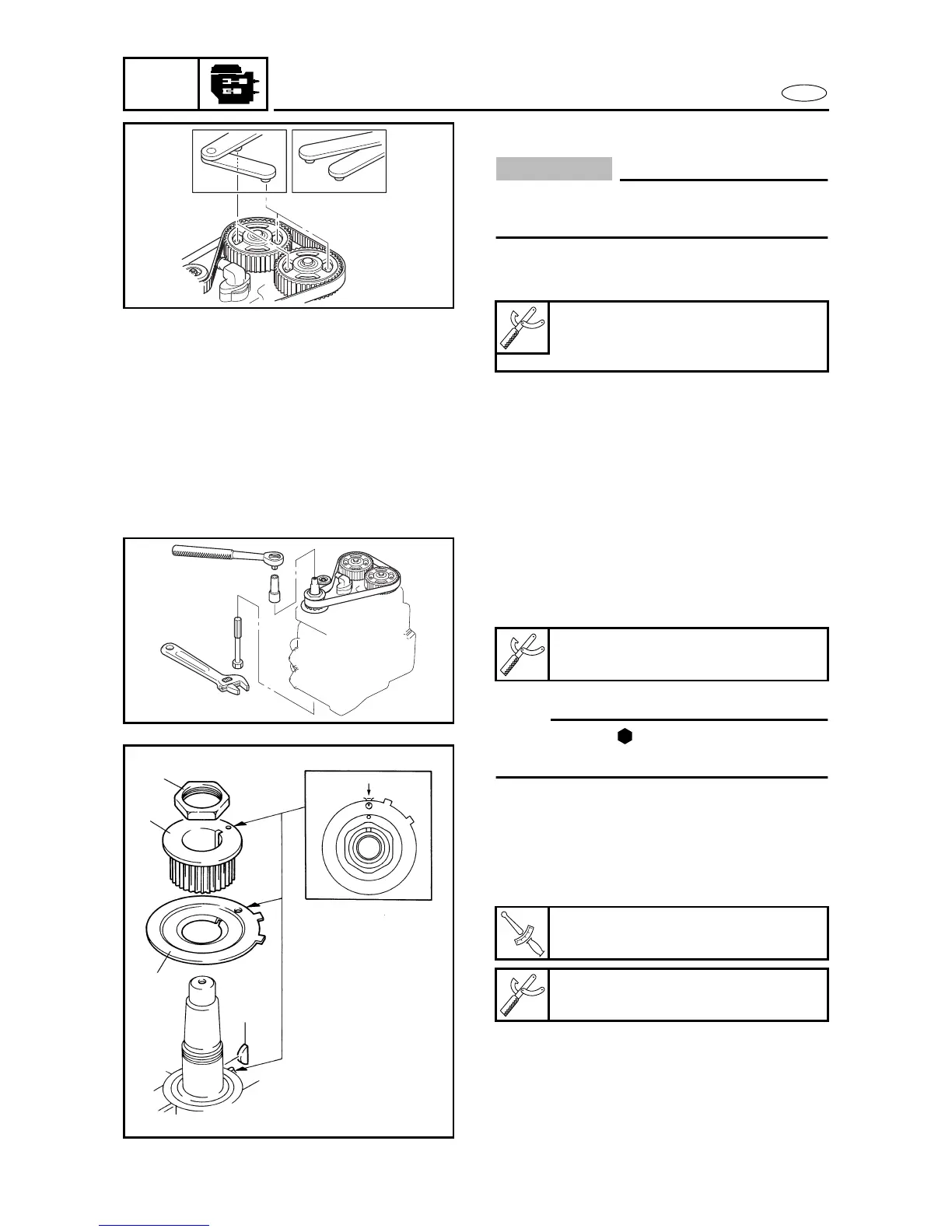

REMOVING THE DRIVEN SPROCKET 5
CAUTION:
Make sure cylinder #1’s position is at TDC
before removal.
Remove:
• Bolt
Å For USA and Canada
ı For worldwide
Flywheel magnet assembly
holder
YB-06139 / 90890-06522
Å
ı
5130
REMOVING/INSTALLING THE DRIVE
SPROCKET
5
1. Remove:
•Nut
NOTE:
A deep socket ( : 46 mm, 76 mm deep) is
required for this service.
2. Install:
• Woodruff key 1
• Pick-up rotor 2
• Drive sprocket 3
• Drive sprocket nut 4
Crankshaft holder
YB-06552 / 90890-06552
T
R
.
.
Drive sprocket nut
265 Nm (27.0 m • kgf, 192 ft • lb)
Crankshaft holder
YB-06552 / 90890-06552
5140
4
3
2
1
5150
