Yamaha F115A - Disassembling;Assembling the Fuel Filter

4-29
FUEL
E
FUEL FILTER
FUEL FILTER
4

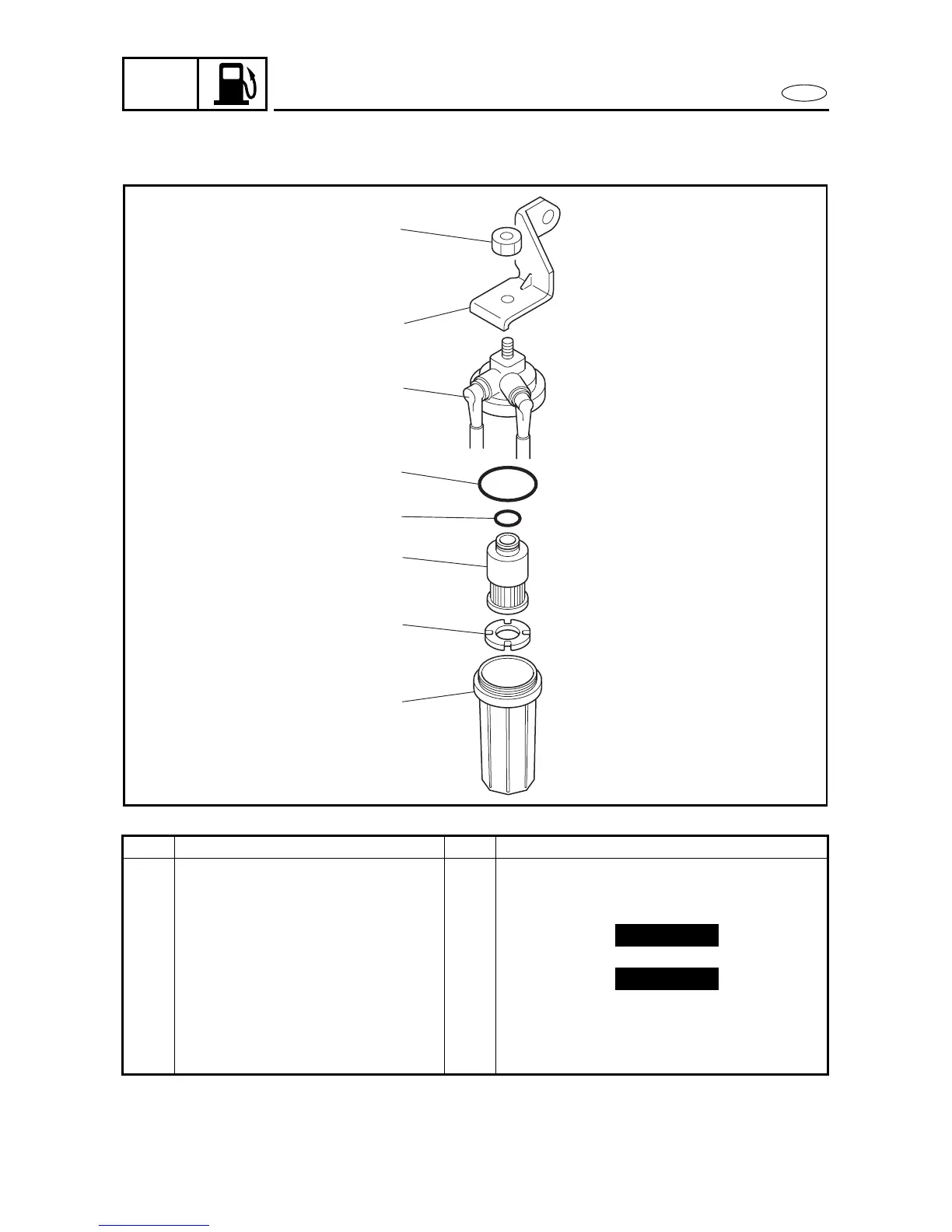

DISASSEMBLING/ASSEMBLING THE FUEL FILTER
Order Job/Part Q’ty Remarks
1 Nut 1
2 Fuel filter bracket 1
3 Fuel filter cup 1
4 O-ring 1 2.0 × 32.2 mm
5 Fuel filter element 1
6 O-ring 1 1.5 × 13.5 mm
7 Float 1
8 Fuel filter cap 1
For assembly, reverse the disassembly
procedure.
4220
1
2
4
8
6
5
7
3
Not reusable
Not reusable
