PROPELLER SHAFT HOUSING ASSEMBLY
(REGULAR ROTATION MODELS)

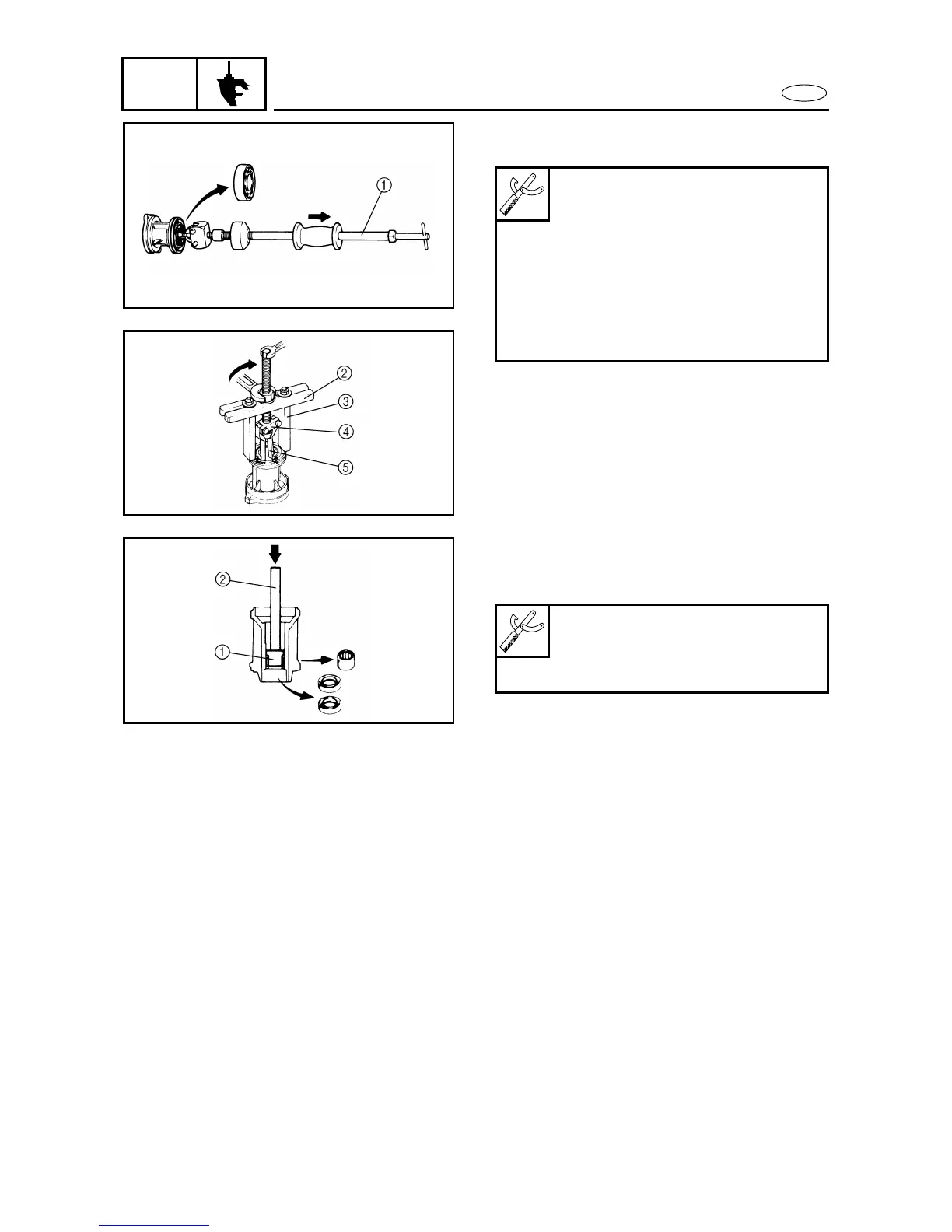

2. Remove:
• Ball bearing
Å For USA and Canada
ı For worldwide
Slide hammer............................ 1
YB-06096
Guide plate................................ 2
90890-06501
Guide plate stand ..................... 3
90890-06538
Bearing puller............................ 4
90890-06535
Small universal claws .............. 5
90890-06536
6160
Å
6170
ı
3. Remove:
• Oil seal
• Needle bearing
Bearing/oil seal attachment .... 1
YB-06196 / 90890-06653
Driver rod .................................. 2
YB-06071 / 90890-06652
6180
CHECKING THE REVERSE GEAR 6
Check:
• Teeth
• Dogs
Wear/damage → Replace the reverse
gear.
CHECKING THE BEARING 6
Check:
• Bearing
Pitting/rumbling → Replace.
CHECKING THE PROPELLER SHAFT
HOUSING
6
Check:
• Propeller shaft housing
Cracks/damage → Replace.
