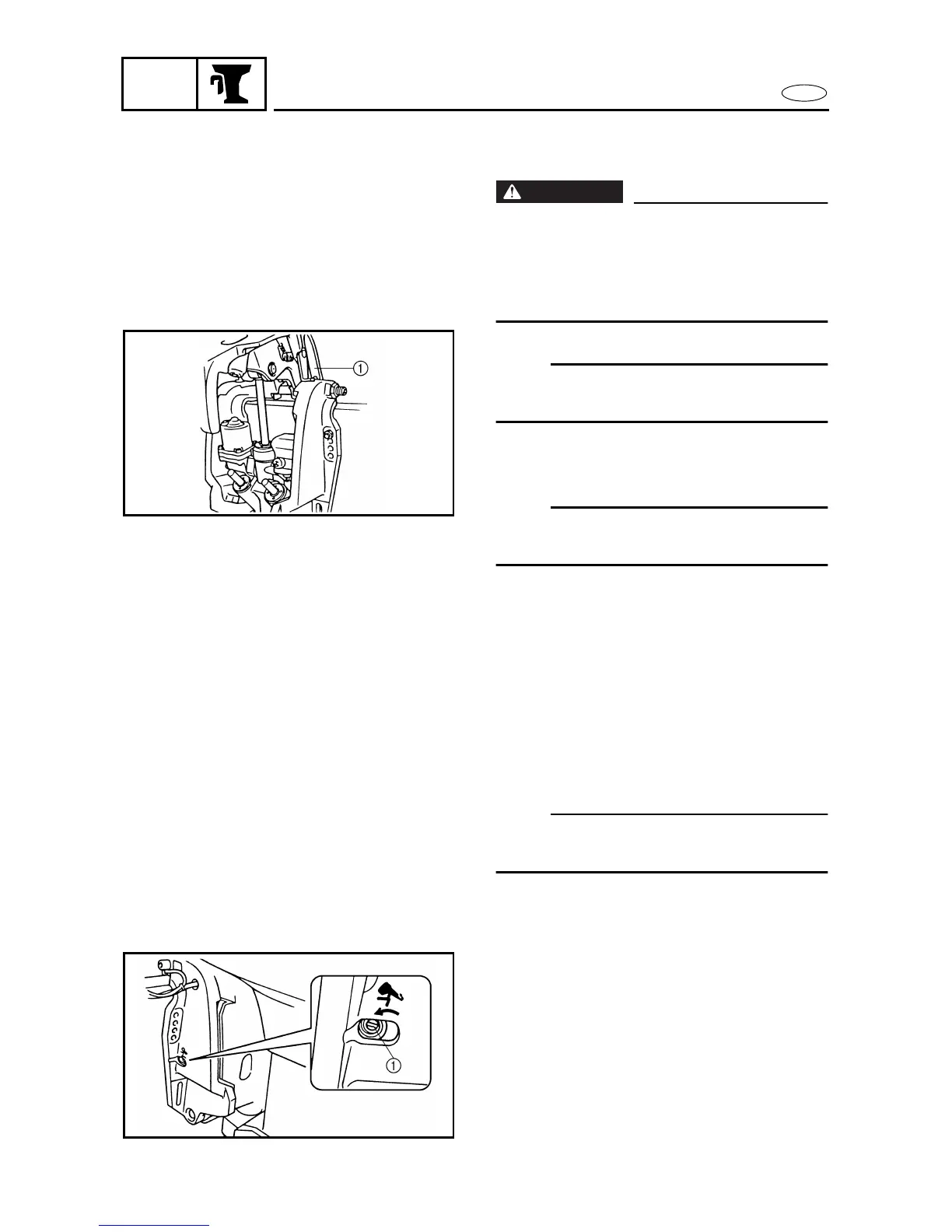

POWER TRIM AND TILT UNIT
REMOVING THE POWER TRIM AND
TILT UNIT
WARNING
After tilting up the outboard, be sure to
support it with the tilt stop levers.
Otherwise, the outboard could suddenly
lower if the power trim and tilt unit should
lose fluid pressure.
NOTE:
Tilt up the outboard and then turn the tilt
stop levers 1 to support it.
Remove:
• Power trim and tilt unit
NOTE:
Slightly lower the tilt ram assembly and
then remove the power trim and tilt unit.
7140
BLEEDING THE POWER TRIM AND
TILT UNIT
NOTE:
Install the power trim and tilt unit onto the
outboard before bleeding.
Bleed:
• Air bubbles
(from the power trim and tilt unit)
Bleeding steps
(1) Connect the battery leads to the bat-
tery.
(2) Loosen the manual valve 1 by turning
it counterclockwise until it stops.
7150
