HIGH-PRESSURE FUEL PUMP
4

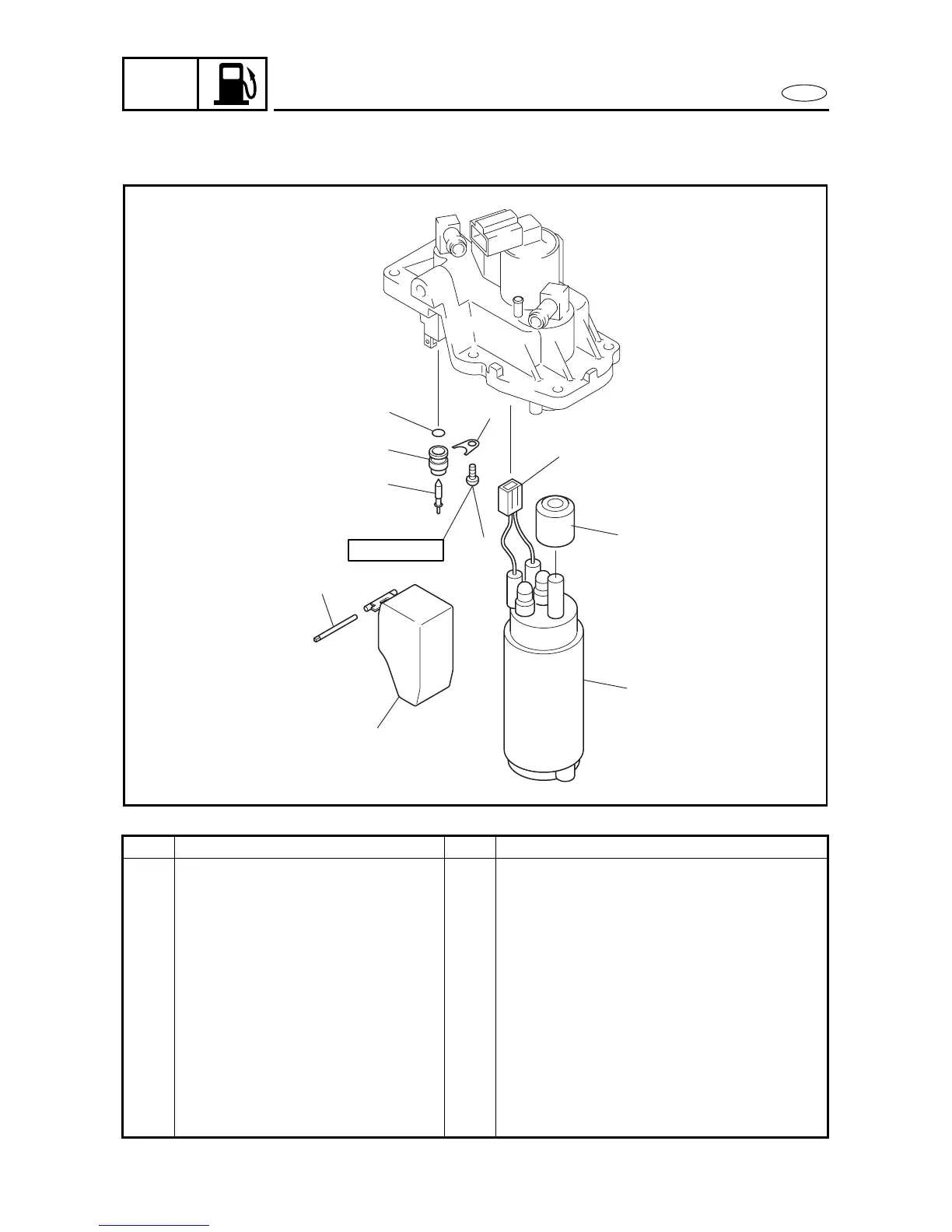

DISASSEMBLING/ASSEMBLING THE HIGH-PRESSURE FUEL PUMP
Order Job/Part Q’ty Remarks
1 Float pin 1
2 Float 1
3 Needle valve 1
4 Screw 1
5 Retainer 1
6 Collar 1
7 O-ring 1 1.35 × 7 mm
8 High-pressure fuel pump 1
9 Grommet 1
10 High-pressure fuel pump
connector
1
For assembly, reverse the disassembly
procedure.
4130
9
10
5
4
3
6
7
2
1
8
3 × 8 mm
HIGH-PRESSURE FUEL PUMP
