IGNITION SYSTEM
CHECKING THE BATTERY 8
Refer to “CHECKING THE BATTERY”
on page 3-21.

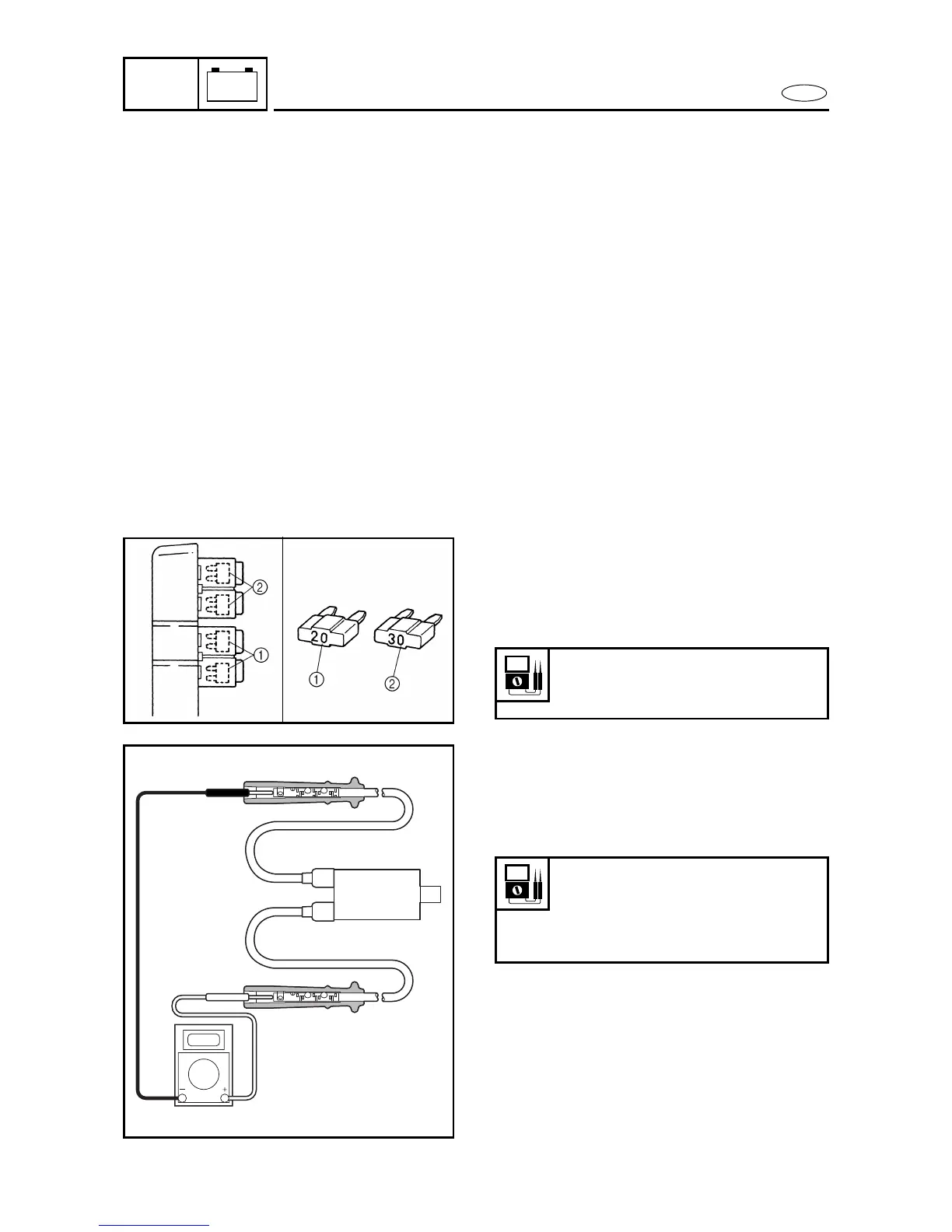

CHECKING THE FUSES 8
1. Check:
• Fuse holder continuity
No continuity → Check the fuse holder
leads.
2. Check:
• Fuse holder lead continuity
No continuity → Replace the fuse
holder.
Continuity → Check the fuse.
3. Check:
• Fuse continuity
No continuity → Replace.
• Fuse rating
Out of specification → Replace.
Fuse rating
1: 12 V - 20 A
2: 12 V - 30 A
8180
MEASURING THE IGNITION COIL
ASSEMBLY
8
Measure:
• Ignition coil assembly resistance
Out of specification → Replace.
Ignition coil assembly resistance
18.97 - 35.23 kΩ
(For cylinder No. 1, 4)
18.55 - 34.45 kΩ
(For cylinder No. 2, 3)
8240
