Yamaha F115A - Checking the Dog Clutch; Checking the Propeller Shaft; Assembling the Propeller Shaft Housing; Assembling the Reverse Gear

6-15
E
LOWR

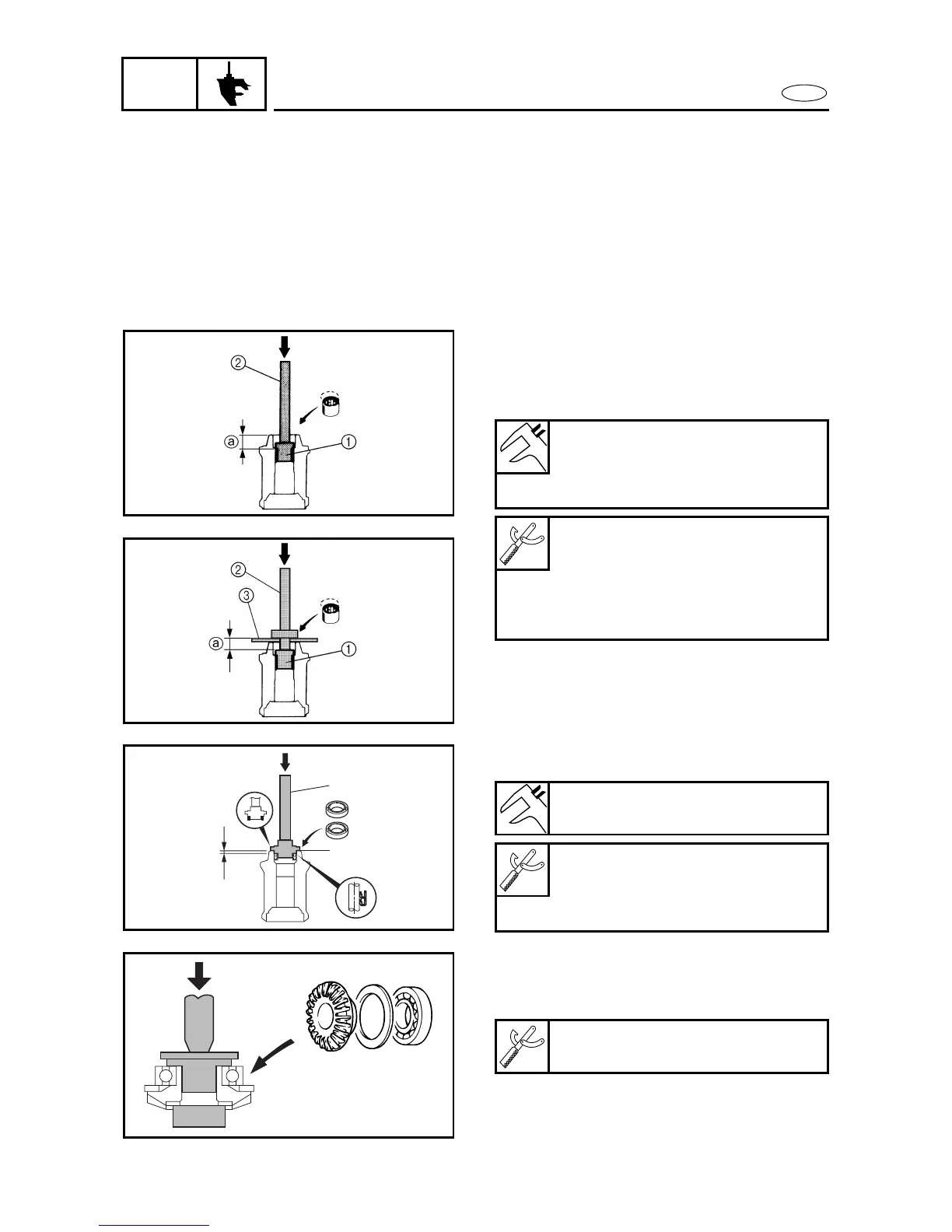

PROPELLER SHAFT HOUSING ASSEMBLY
(REGULAR ROTATION MODELS)
CHECKING THE DOG CLUTCH 6
Check:
• Dog clutch
Damage/wear → Replace.
CHECKING THE PROPELLER SHAFT 6
Check:
• Propeller shaft
Damage/wear → Replace.
ASSEMBLING THE PROPELLER
SHAFT HOUSING
6
1. Install:
• Needle bearing
Å For USA and Canada
ı For worldwide
2. Install:
• Oil seal
Needle bearing installation
position a
24.75 - 25.25 mm
(0.974 - 0.994 in)
Bearing/oil seal attachment .... 1
YB-06196 / 90890-06653
Driver rod .................................. 2
YB-06071 / 90890-06604
Bearing/oil seal depth plate .... 3
90890-06603
Oil seal installation position a
4.75 - 5.25 mm (0.187 - 0.207 in)
Bearing/oil seal attachment .... 1
YB-06195
Driver rod .................................. 2
YB-06071
6190
Å
6200
ı
6210
a
1
2
ASSEMBLING THE REVERSE GEAR 6
Install:
• Ball bearing
Bearing/oil seal attachment
YB-06200 / 90890-06661
6220
