Yamaha F115A - FLYWHEEL MAGNET ASSEMBLY

5-1
POWR
E
FLYWHEEL MAGNET ASSEMBLY
FLYWHEEL MAGNET ASSEMBLY
5

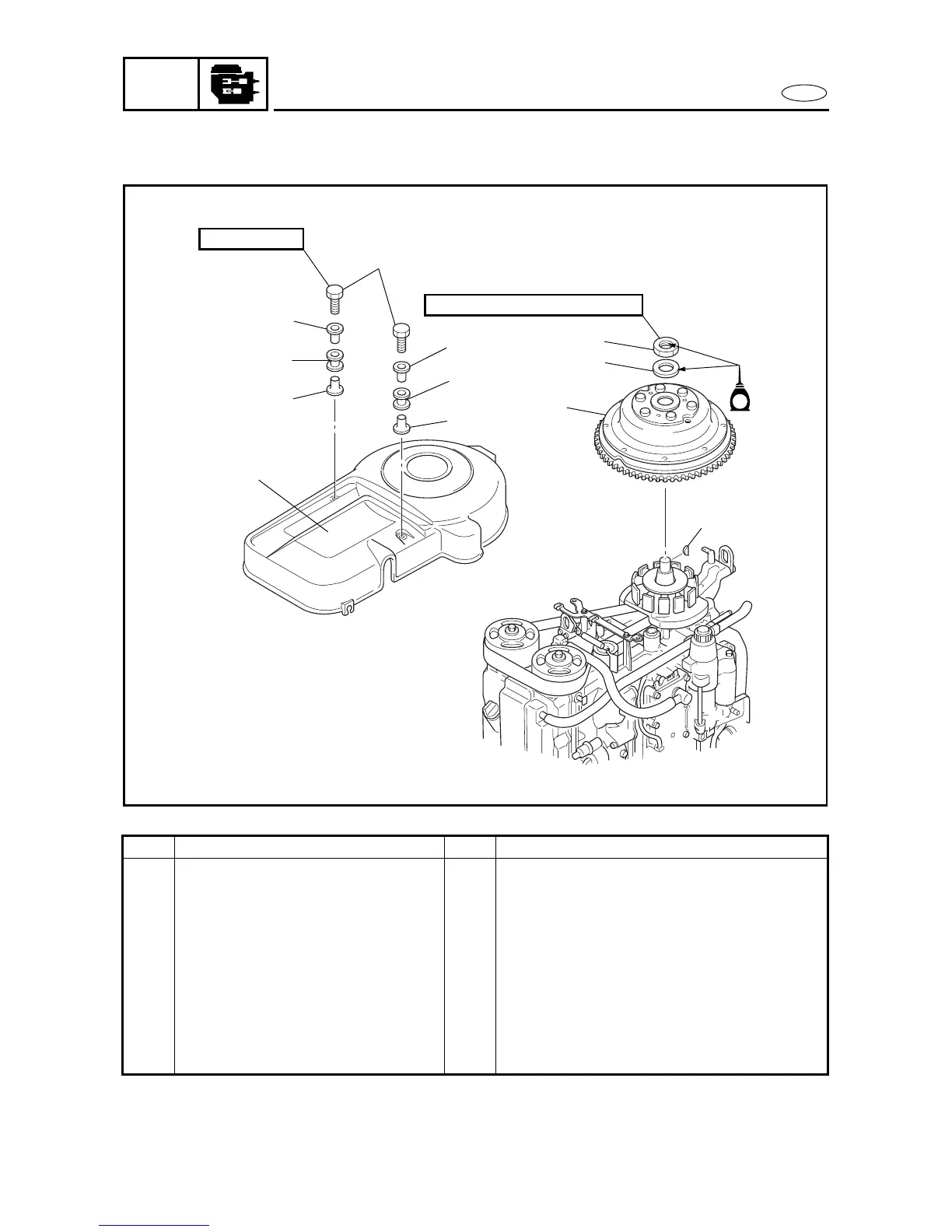

REMOVING/INSTALLING THE FLYWHEEL MAGNET ASSEMBLY 5
Order Job/Part Q’ty Remarks
1 Bolt 2
2 Collar 4
3 Grommet 2
4 Flywheel cover 1
5 Flywheel magnet nut 1
6 Washer 1
7 Flywheel magnet assembly 1
8 Woodruff key 1
For installation, reverse the removal
procedure.
5010
1
4
2
3
2
5
6
7
8
190 Nm (19 m • kgf, 137 ft • Ib)
8 × 20 mm
E
2
3
2
