8-35
–+
ELEC
E
POWER TRIM AND TILT SYSTEM

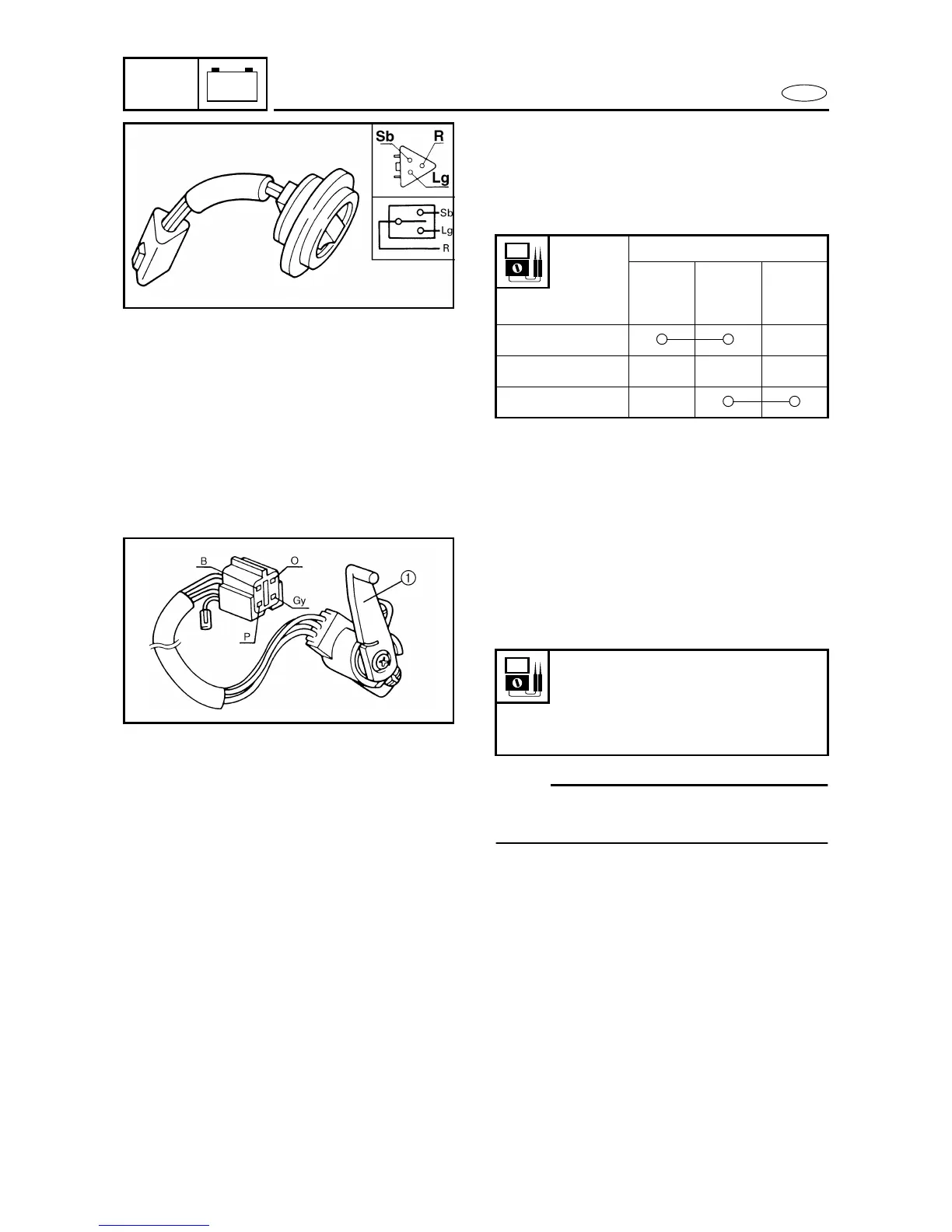

CHECKING THE TRAILER SWITCH
CONTINUITY
8
Check:
• Trailer switch continuity
Out of specification → Replace.
Switch
position
Lead color
Sky blue
(Sb)
Red (R)
Light
green
(Lg)
Up
Free
Down
8550
MEASURING THE TRIM SENSOR
RESISTANCE
8
Measure:
• Trim sensor resistance
Out of specification → Replace.
NOTE:
Turn the lever 1 and measure the resis-
tance as it gradually changes.
Trim sensor resistance
Pink (P) – Black (B)
582 - 873 Ω at 20 ˚C (68 ˚F)
Orange (O) – Black (B)
800 - 1,200 Ω at 20 ˚C (68 ˚F)
8560
