Yamaha F115A - Disassembling;Assembling the Propeller Shaft Assembly

6-12
E
LOWR
PROPELLER SHAFT HOUSING ASSEMBLY
(REGULAR ROTATION MODELS)
6

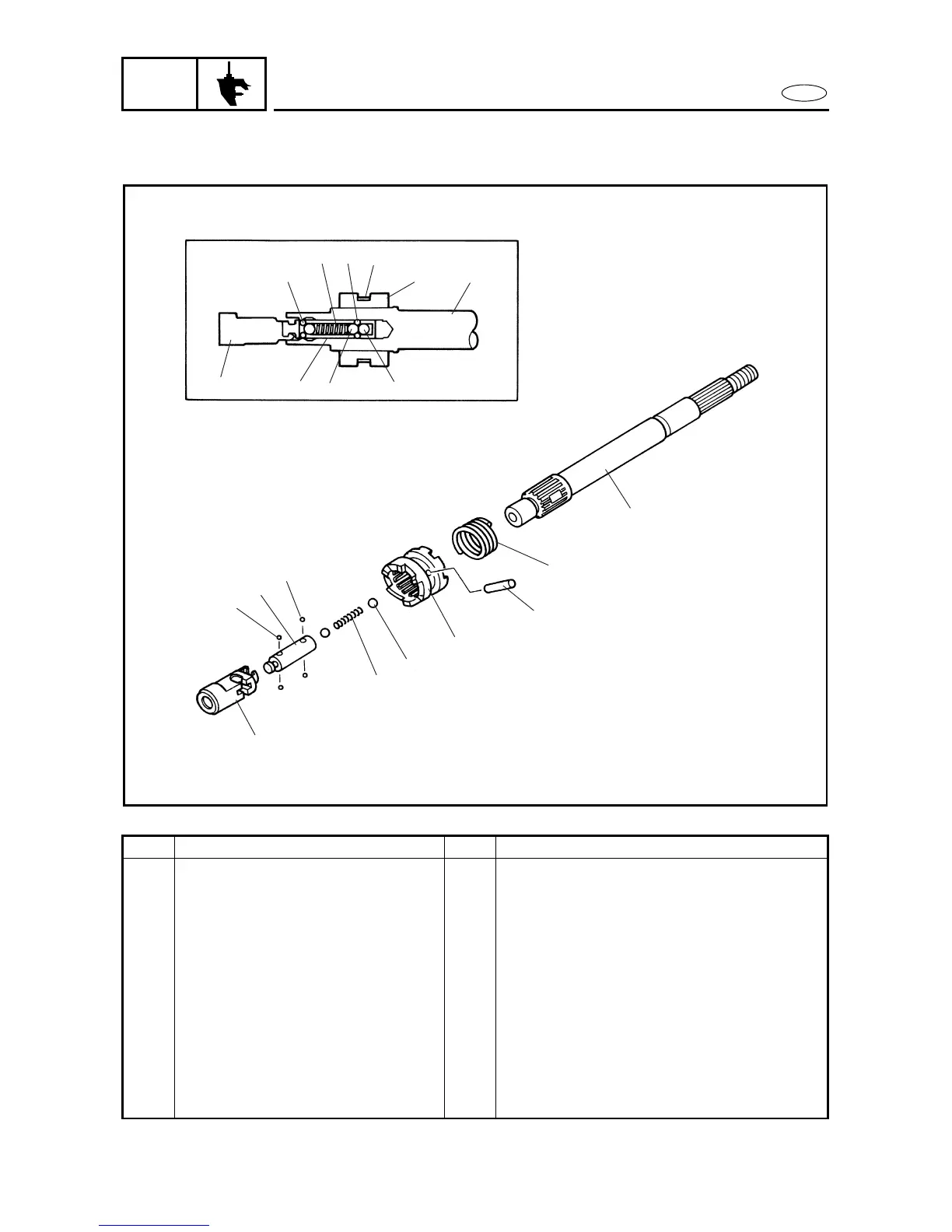

DISASSEMBLING/ASSEMBLING THE PROPELLER SHAFT ASSEMBLY 6
Order Job/Part Q’ty Remarks
1 Spring 1
2 Pin 1
3 Dog clutch 1
4 Shift rod joint 1
5 Shift rod joint slider 1
6 Ball 2
7 Ball 2
8 Spring 1
9 Ball 2
10 Propeller shaft 1
For assembly, reverse the disassembly
procedure.
4
5
9
2
10
3
1
6
8
7
6
5
7
4
9
8
3
2
1
10
