Yamaha F115A - HIGH-PRESSURE FUEL LINE

4-8
FUEL
E
HIGH-PRESSURE FUEL LINE
HIGH-PRESSURE FUEL LINE
4

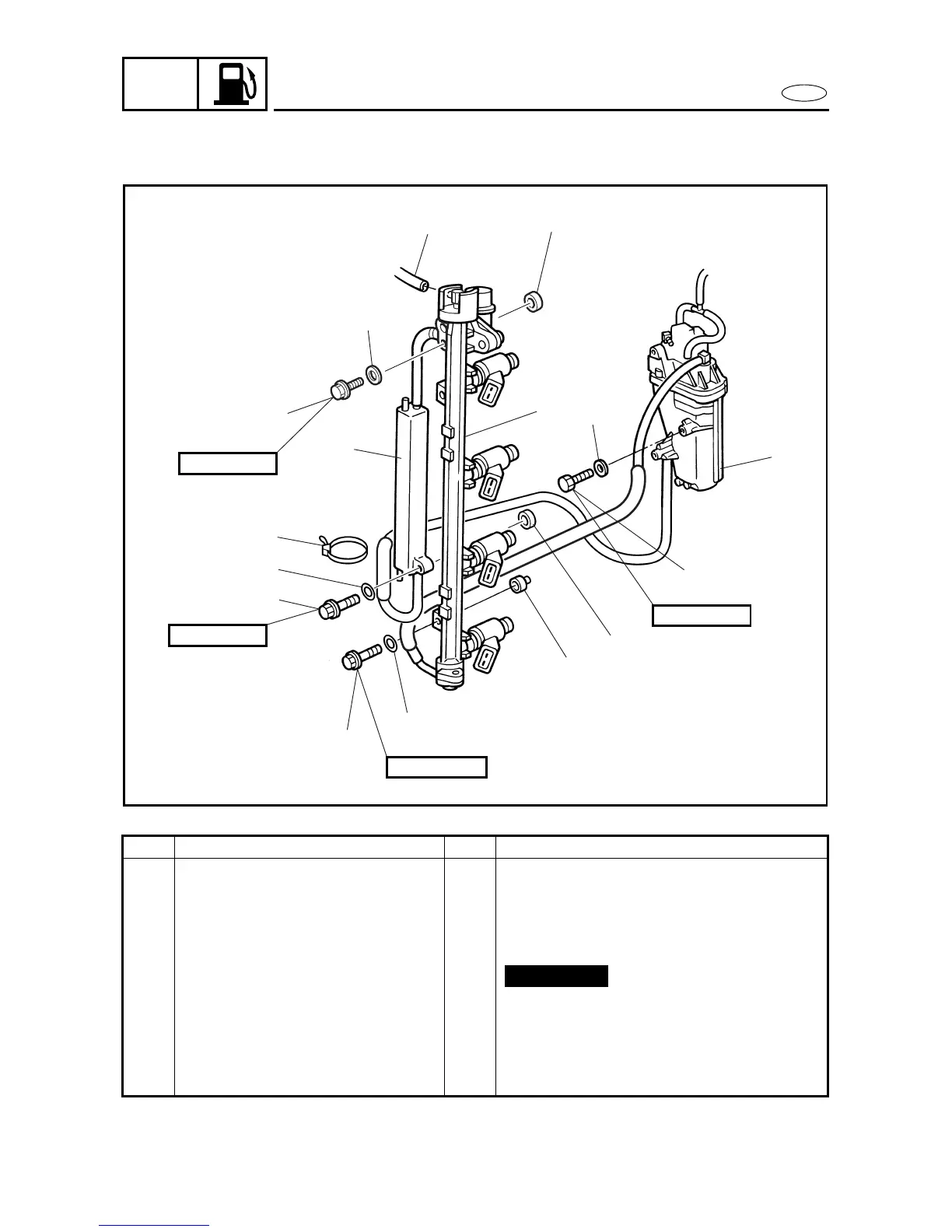

REMOVING/INSTALLING THE HIGH-PRESSURE FUEL LINE 4
Order Job/Part Q’ty Remarks
Intake assembly Refer to “INTAKE ASSEMBLY” on page
4-3.
1 Bolt 3
2 Washer 3
3 Vapor separator 1
4 Plastic locking tie 2
5 Bolt 2
6 Washer 2
7 Fuel cooler 1
8 Collar 2
Continued on next page.
1
3
2
15
11
10
6
4
5
7
9
14
8
8 × 45 mm
6 × 30 mm
6 × 25 mm
12
13
16
6 × 10 mm
4040
Not reusable
