IDLE SPEED CONTROL ASSEMBLY
IDLE SPEED CONTROL ASSEMBLY
4

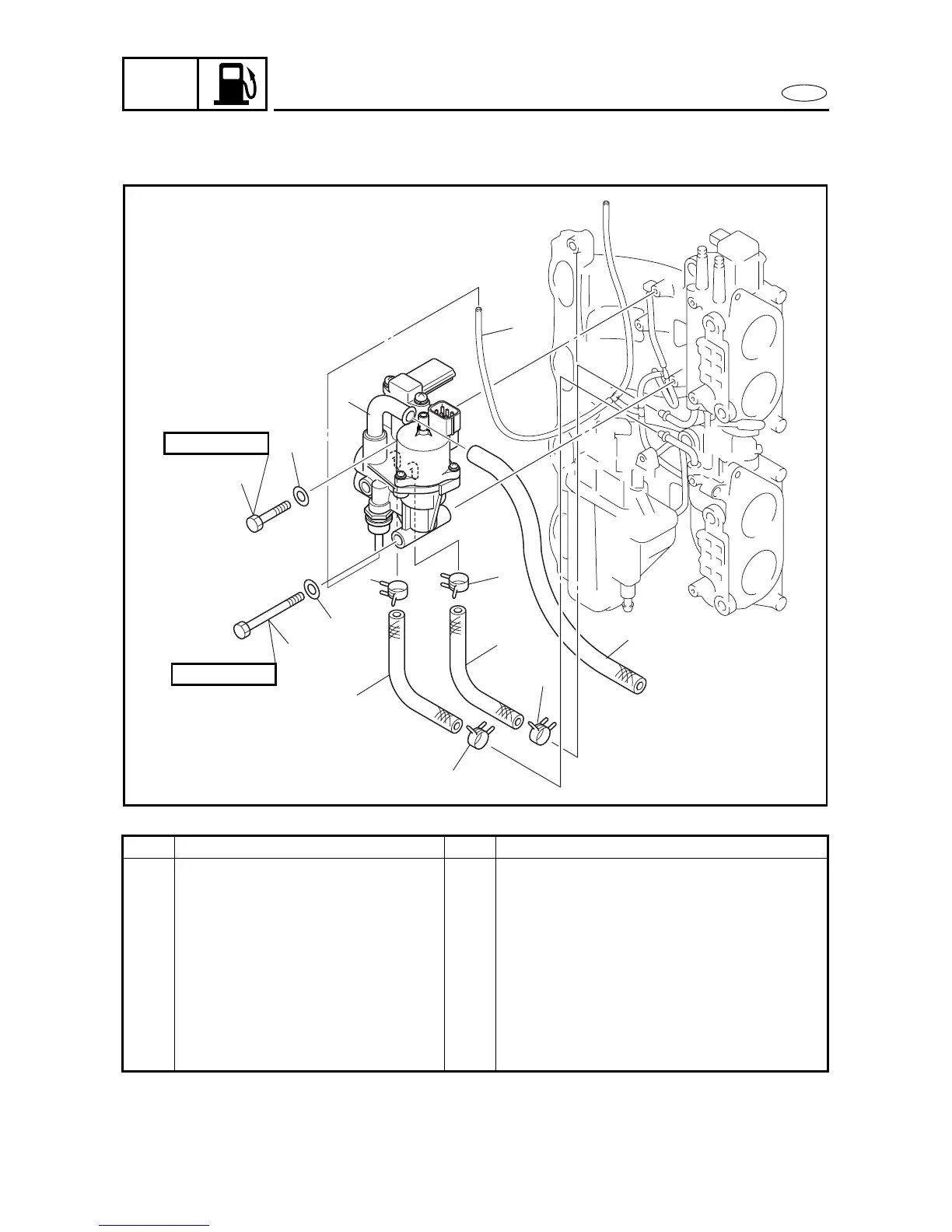

REMOVING/INSTALLING THE IDLE SPEED CONTROL ASSEMBLY 4
Order Job/Part Q’ty Remarks
Intake assembly Refer to “INTAKE ASSEMBLY” on page
4-3.
1 Hose 1 (idle speed control assembly-to-intake
silencer)
2 Bolt 1
3 Washer 1
4 Bolt 2
5 Washer 2
6 Hose clamp 4
Continued on next page.
2
3
4
5
6
8
6
10
6
7
1
9
6
6 × 24 mm
6 × 60 mm
4150
To Next Page
