Yamaha F115A - Assembling the Forward Gear; Assembling the Propeller Shaft Housing Assembly

6-42
E
LOWR

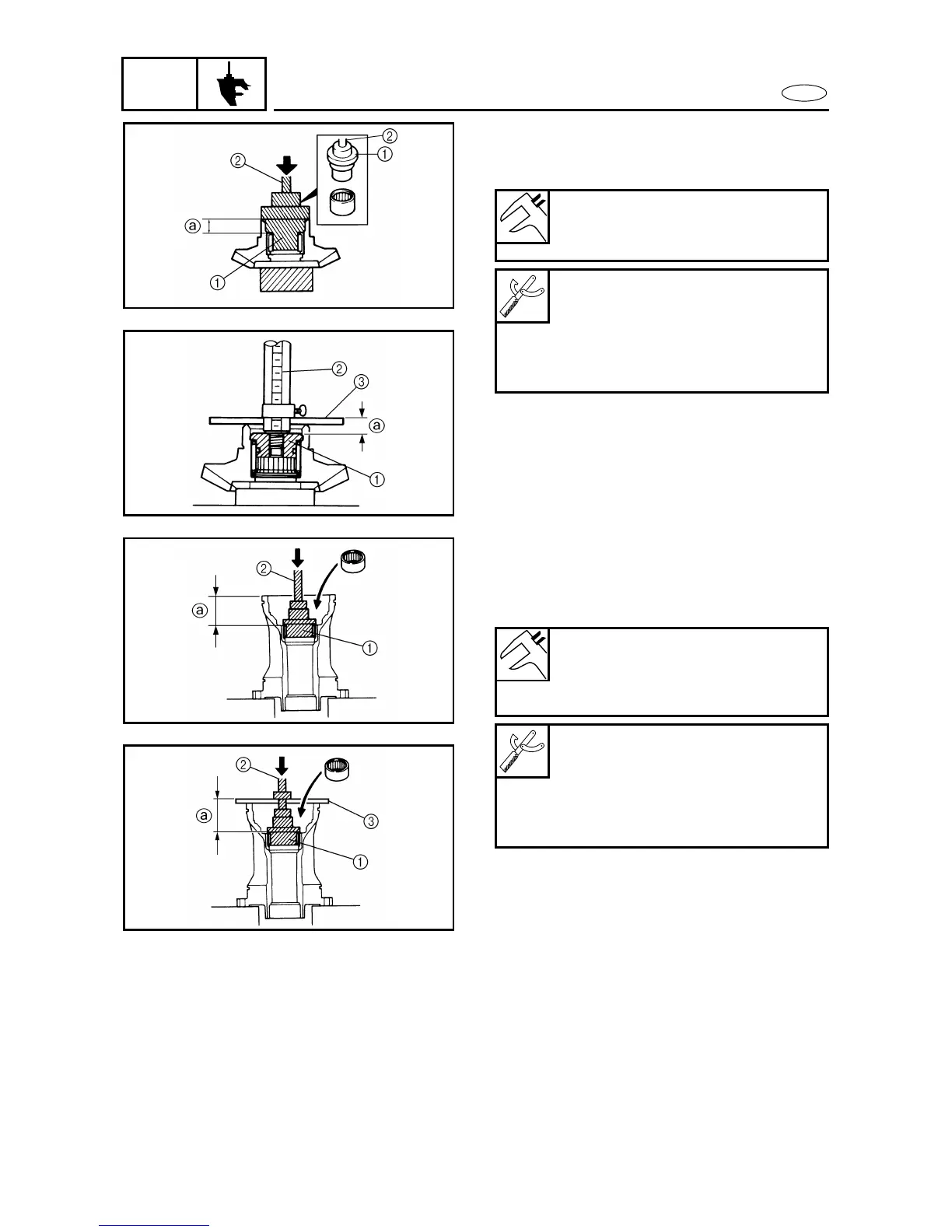

ASSEMBLING THE FORWARD GEAR 6
Install:
• Needle bearing
Å For USA and Canada
ı For worldwide
Needle bearing installation
position a
10.25 - 10.75 mm (0.40 - 0.42 in)
Bearing/oil seal attachment .... 1
YB-06378 / 90890-06610
Driver rod .................................. 2
YB-06071 / 90890-06604
Bearing/oil seal depth plate .... 3
90890-06603
6570
Å
6580
ı
ASSEMBLING THE PROPELLER
SHAFT HOUSING ASSEMBLY
6
1. Install:
• Needle bearing
Å For USA and Canada
ı For worldwide
Needle bearing installation
position a
34.25 - 34.75 mm
(1.348 - 1.368 in)
Bearing/oil seal attachment .... 1
YB-06337 / 90890-06608
Driver rod .................................. 2
YB-06071 / 90890-06604
Bearing/oil seal depth plate .... 3
90890-06603
6590
Å
6600
ı
PROPELLER SHAFT HOUSING ASSEMBLY
(COUNTER ROTATION MODELS)
