Yamaha F115A - POWER TRIM AND TILT UNIT

7-29
BRKT
E
POWER TRIM AND TILT UNIT
POWER TRIM AND TILT UNIT
7

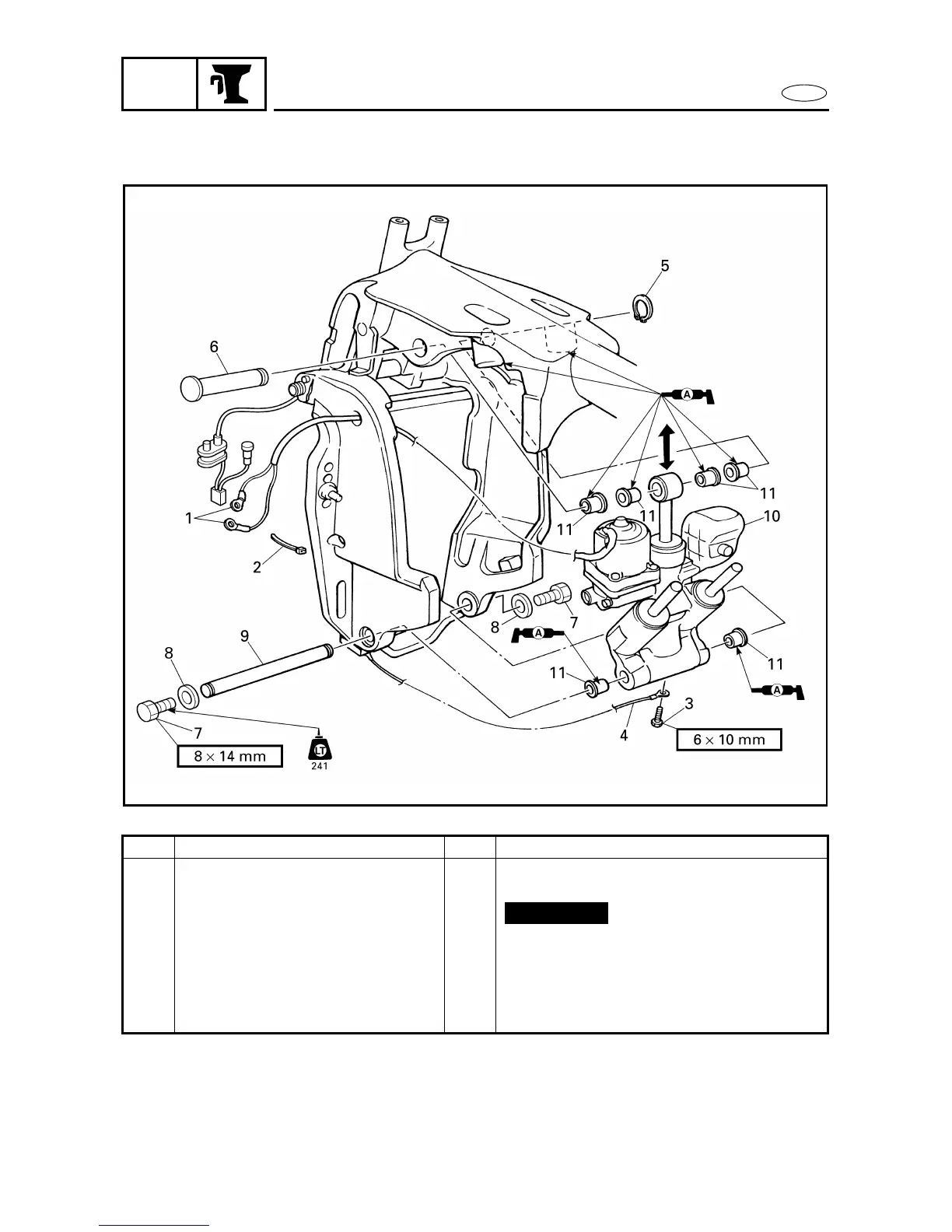

REMOVING/INSTALLING THE POWER TRIM AND TILT UNIT
Order Job/Part Q’ty Remarks
Tilt up the outboard
1 Power trim and tilt lead 2
2 Plastic locking tie 3
3 Bolt 1
4 Ground lead 1
5 Circlip 1
6 Upper mounting pin 1
Continued on next page.
7130
Not reusable
