Yamaha F115A - Removing;Installing the Vapor Separator

4-15
FUEL
E
VAPOR SEPARATOR
VAPOR SEPARATOR
4

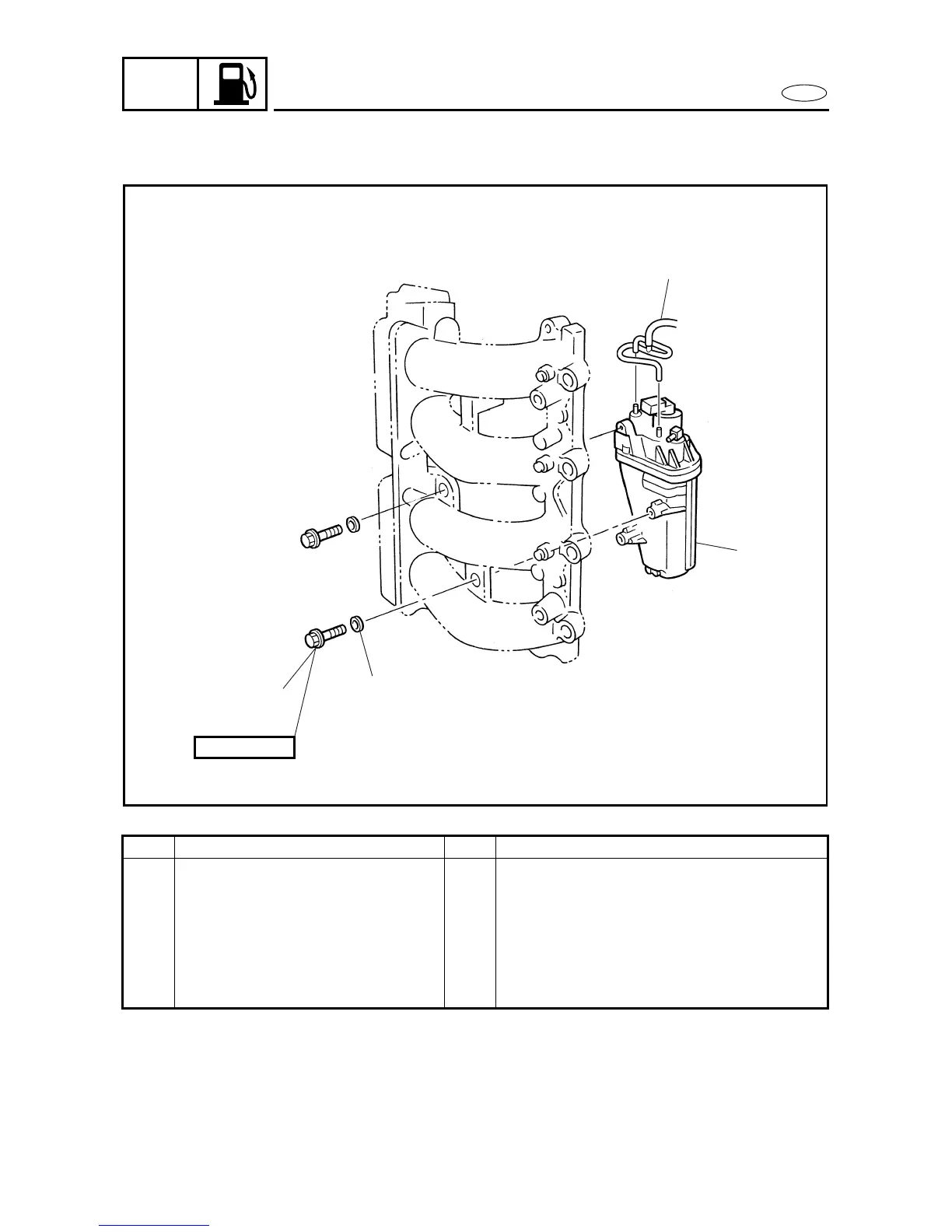

REMOVING/INSTALLING THE VAPOR SEPARATOR
Order Job/Part Q’ty Remarks
Fuel hoses Refer to “FUEL HOSES” on page 4-14.
1 Bolt 3
2 Washer 3
3 Hose 1 (vapor separator-to-intake silencer)
4 Vapor separator 1
For installation, reverse the removal
procedure.
4110
3
4
2
1
6 × 30 mm
