Yamaha F115A - FUEL PUMP

4-30
FUEL
E
FUEL PUMP
FUEL PUMP
4

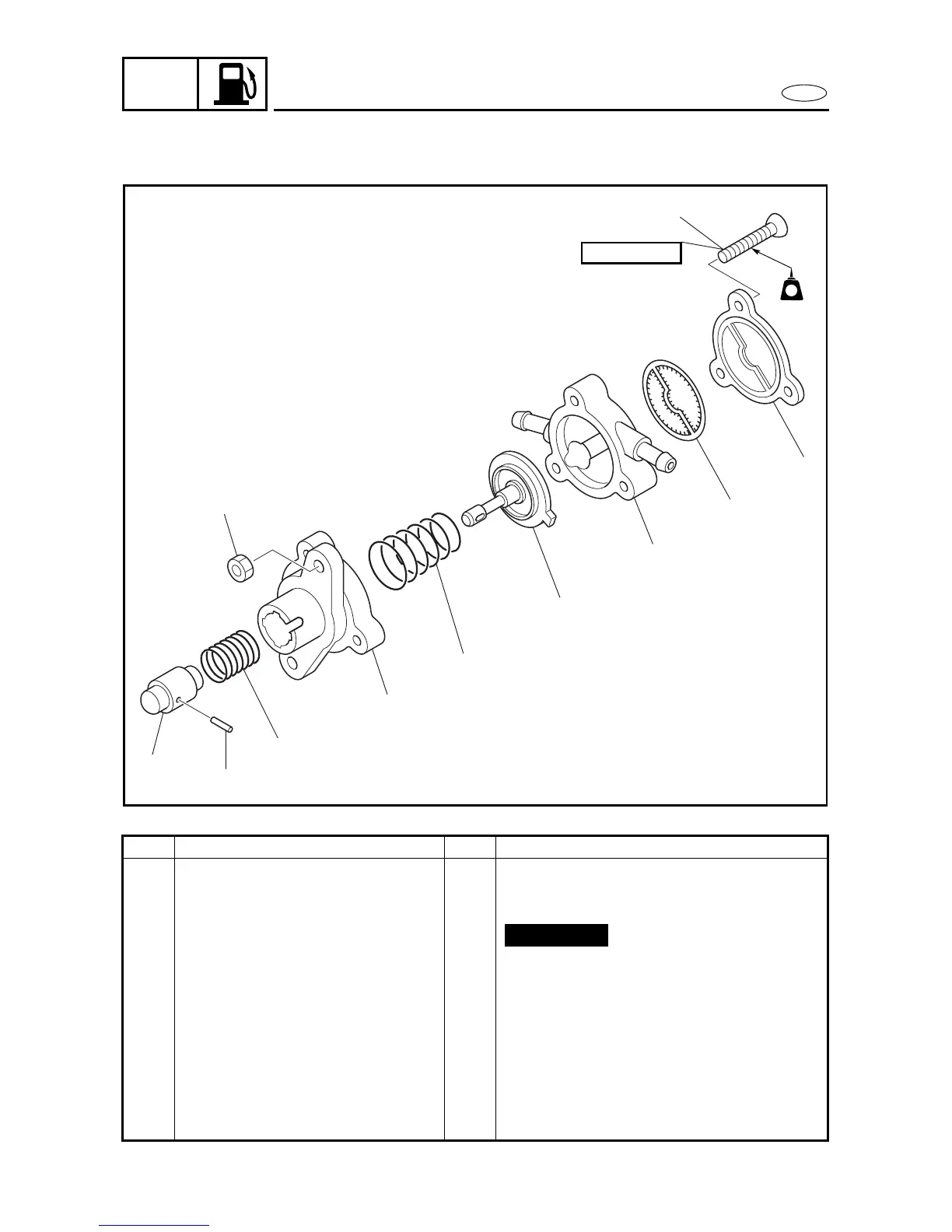

DISASSEMBLING/ASSEMBLING THE FUEL PUMP 4
Order Job/Part Q’ty Remarks
1 Screw 3
2 Nut 4
3 Fuel pump cover 1
4 Gasket 1
5 Fuel pump body 1
6 Pin 1
7 Plunger 1
8 Spring 1
9 Diaphragm 1
10 Spring 1
11 Fuel pump cover 1
For assembly, reverse the disassembly
procedure.
7
6
8
2
11
10
9
5
4
3
1
6 × 35 mm
LTLT
LT
572
4230
Not reusable
