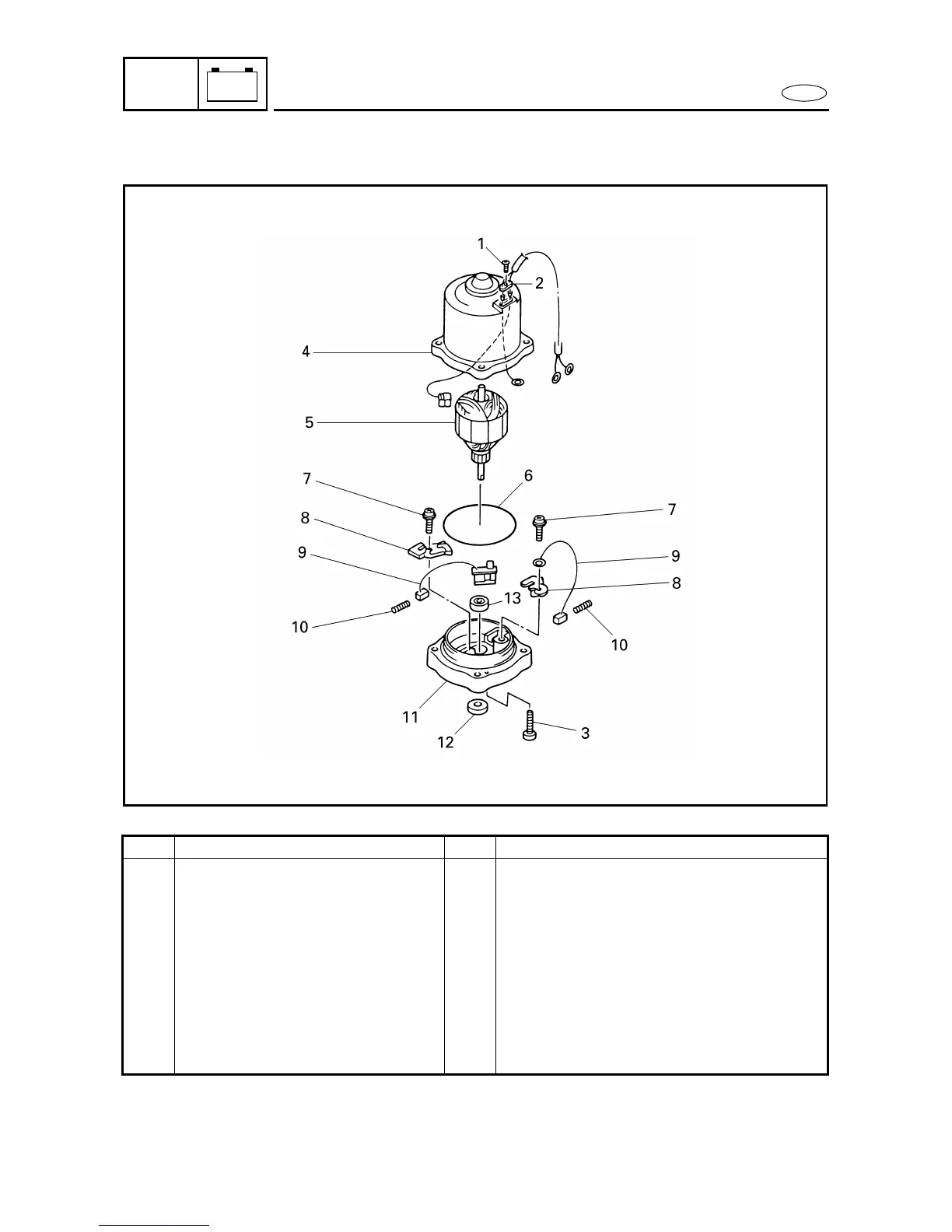

POWER TRIM AND TILT MOTOR
POWER TRIM AND TILT MOTOR
8
DISASSEMBLING/ASSEMBLING THE POWER TRIM AND TILT MOTOR 8
Order Job/Part Q’ty Remarks
Power trim and tilt motor Refer to “RESERVOIR AND POWER TRIM
AND TILT MOTOR” on page 7-33.
1 Screw 1
2 Lead holder 1
3 Screw 2
4 Stator 1
5 Armature 1
6 O-ring 1
7 Screw 2
Continued on next page.
