3-2
E
INSP
ADJ
TOP COWLING/FUEL SYSTEM
TOP COWLING
3

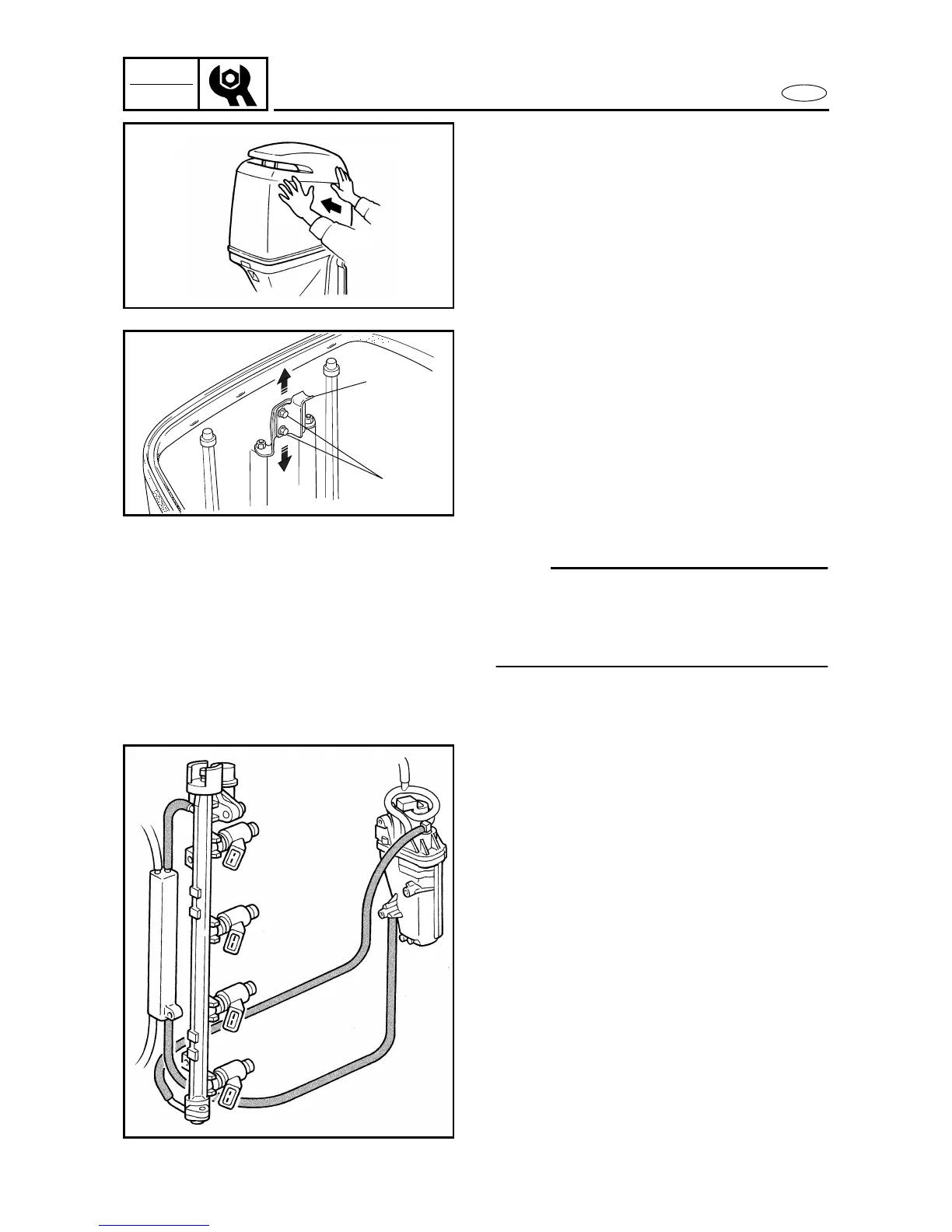

CHECKING THE TOP COWLING FIT
3
1. Check:
• Top cowling fitting
Loose/unlatched
→
Adjust the top
cowling hook.
3010
2. Adjust:
• Top cowling hook position
Adjustment steps
(1) Loosen the bolts
1
.
(2) Move the top cowling hook
2
either
up or down slightly (only a few milli-
meters).
(3) Secure the bolts.
(4) Check the top cowling fitting and
repeat the adjustment if necessary.
NOTE:
• Moving the latch towards the seal will
loosen the top cowling.
• Moving the latch away from the seal will
tighten the top cowling.
1
2
3020
FUEL SYSTEM
3
CHECKING THE FUEL LINE
3
1. Check:
• High-pressure fuel line
Cracks/damage/leaks
→
Replace.
Refer to “HIGH-PRESSURE FUEL
LINE” on page 4-8.
3030
To Next Page
