Yamaha F115A - Installing the Power Trim and Tilt Motor

7-35
E
BRKT
RESERVOIR AND POWER TRIM AND TILT MOTOR

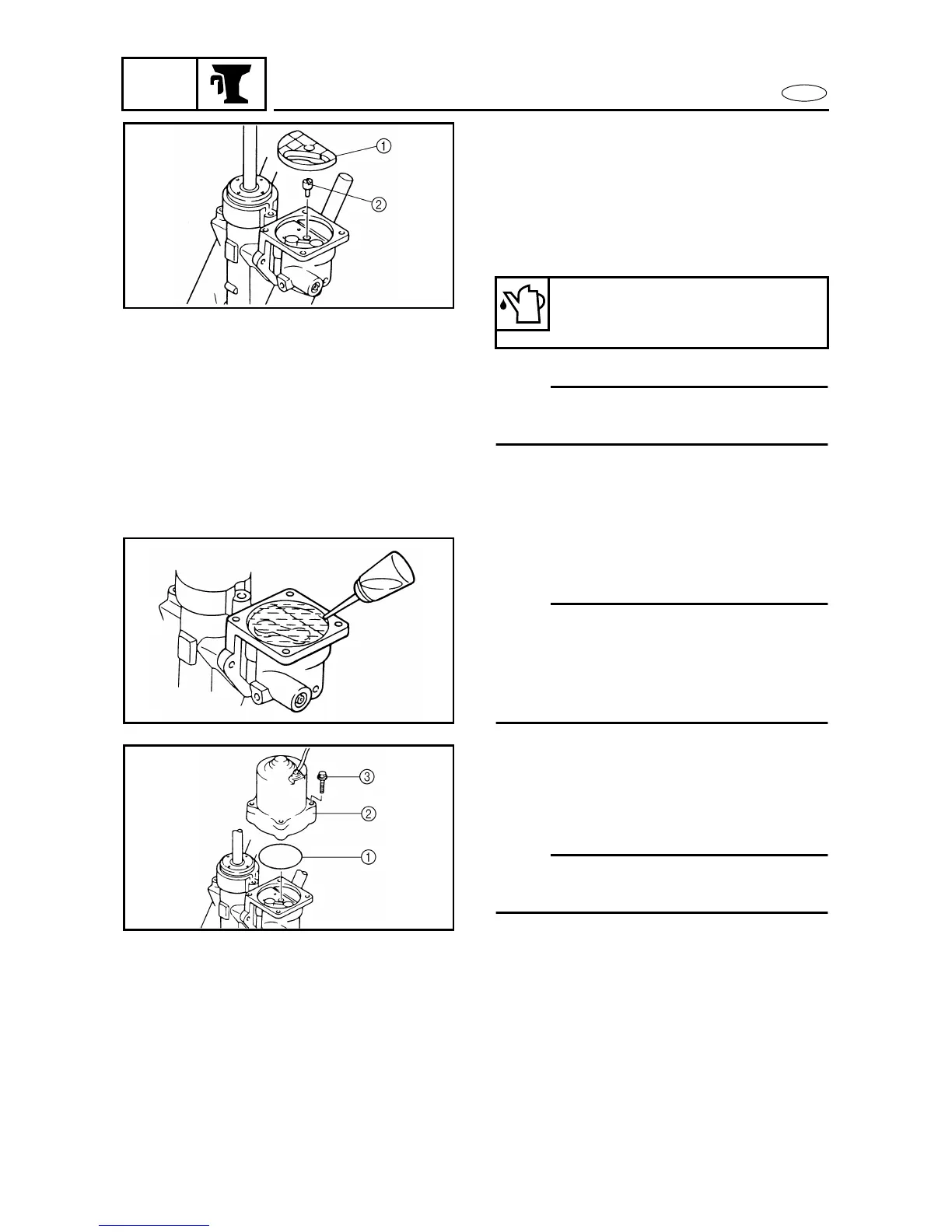

INSTALLING THE POWER TRIM AND
TILT MOTOR
1. Install:
• Gear pump housing filter 1
• Drive pin 2
2. Fill:
• Gear pump housing
NOTE:
Add power trim and tilt fluid until it reaches
the top of the gear pump housing.
Recommended power trim and
tilt fluid
ATF Dexron II
7190
3. Bleed:
• Air bubbles
NOTE:
• Remove all of the air bubbles with a
syringe or suitable tool as shown.
• Turn the gear pump gears with a screw-
driver and then remove any air between
the gear teeth.
7200
4. Install:
• O-ring 1
• Power trim and tilt motor 2
• Bolt 3
NOTE:
Align the armature shaft with the recess in
the drive pin.
7210
