Yamaha F115A - Removing the Propeller Shaft Housing Assembly; Disassembling the Propeller Shaft Housing

6-13
E
LOWR

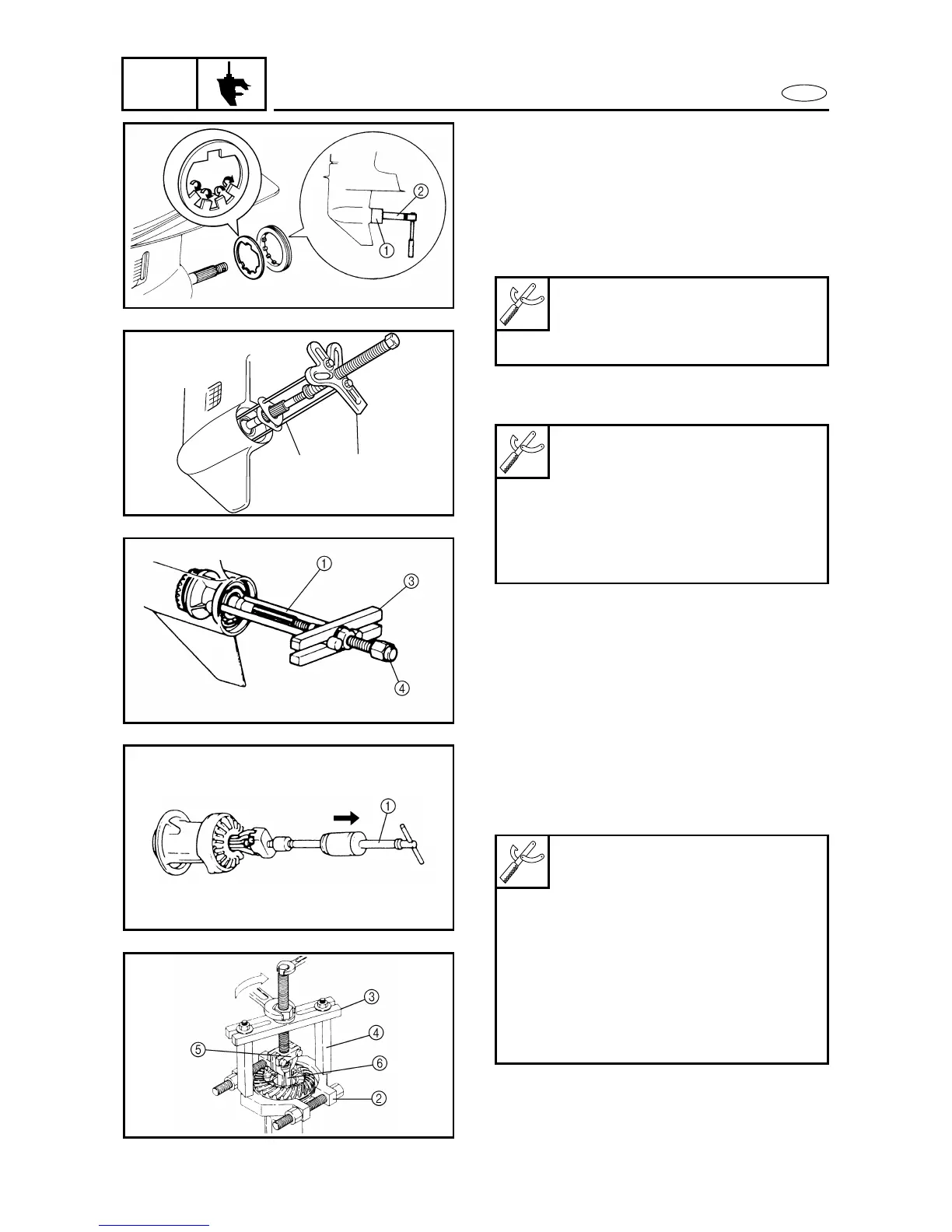

PROPELLER SHAFT HOUSING ASSEMBLY
(REGULAR ROTATION MODELS)
REMOVING THE PROPELLER SHAFT
HOUSING ASSEMBLY
6
1. Straighten:
• Claw washer tabs
2. Remove:
• Ring nut
• Claw washer
3. Remove:
• Propeller shaft housing assembly
Å For USA and Canada
ı For worldwide
Ring nut wrench ....................... 1
YB-34447 / 90890-06511
Ring nut wrench extension ..... 2
90890-06513
Propeller shaft housing puller . 1
YB-06207 / 90890-06502
Universal puller......................... 2
YB-06117
Guide plate................................ 3
90890-06501
Center bolt ................................ 4
90890-06504
6110
1
2
6120
Å
6130
ı
DISASSEMBLING THE PROPELLER
SHAFT HOUSING
6
1. Remove:
• Reverse gear
Å For USA and Canada
ı For worldwide
Slide hammer............................ 1
YB-06096
Bearing separator ..................... 2
90890-06534
Guide plate................................ 3
90890-06501
Guide plate stand ..................... 4
90890-06538
Bearing puller............................ 5
90890-06535
Small universal claws .............. 6
90890-06536
6140
Å
6150
ı
