5-6
POWR
E
POWER UNIT
5

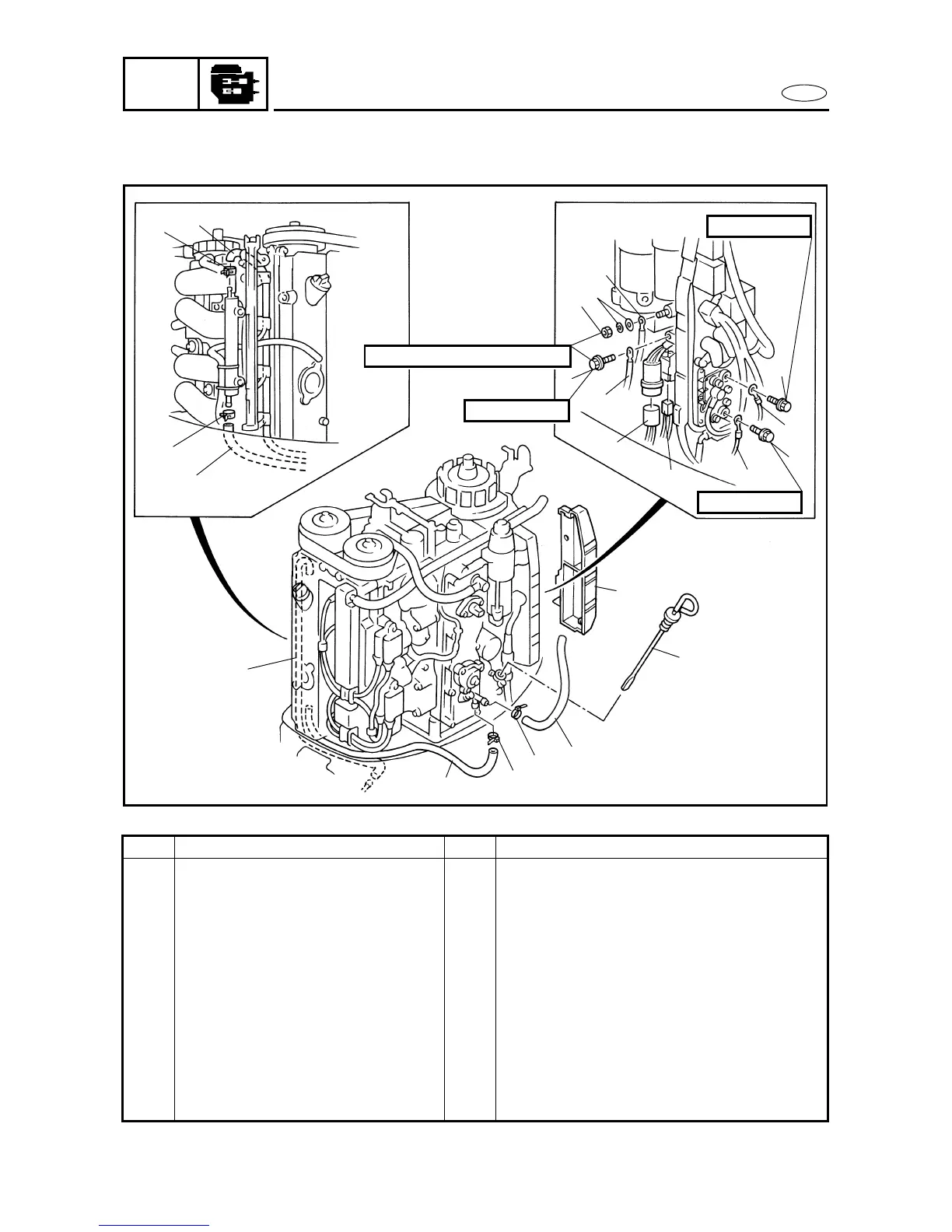

DISCONNECTING/CONNECTING THE LEADS
4
Order Job/Part Q’ty Remarks
1 Junction box cover 1
2 Wire harness coupler 1 For the remote control box.
3 Warning lamp coupler 1
4 Bolt 1
5 Negative battery lead 1
6 Nut 1
7 Washer 2
8 Positive battery lead 1
9 Bolt 1
10 PTT motor lead (sky blue) 1
11 Bolt 1
Continued on next page.
6 × 20 mm
6 × 10 mm
6 × 10 mm
9 Nm (0.9 m • kgf, 6.5 ft • Ib)
8
7
6
4
17
5
2
3
12
11
9
10
16
18
19
19
17
15
14
13
20
1
5090
