Yamaha F115A - Removing;Installing the Bottom Cowling

7-13
BRKT
E
BOTTOM COWLING
BOTTOM COWLING
7

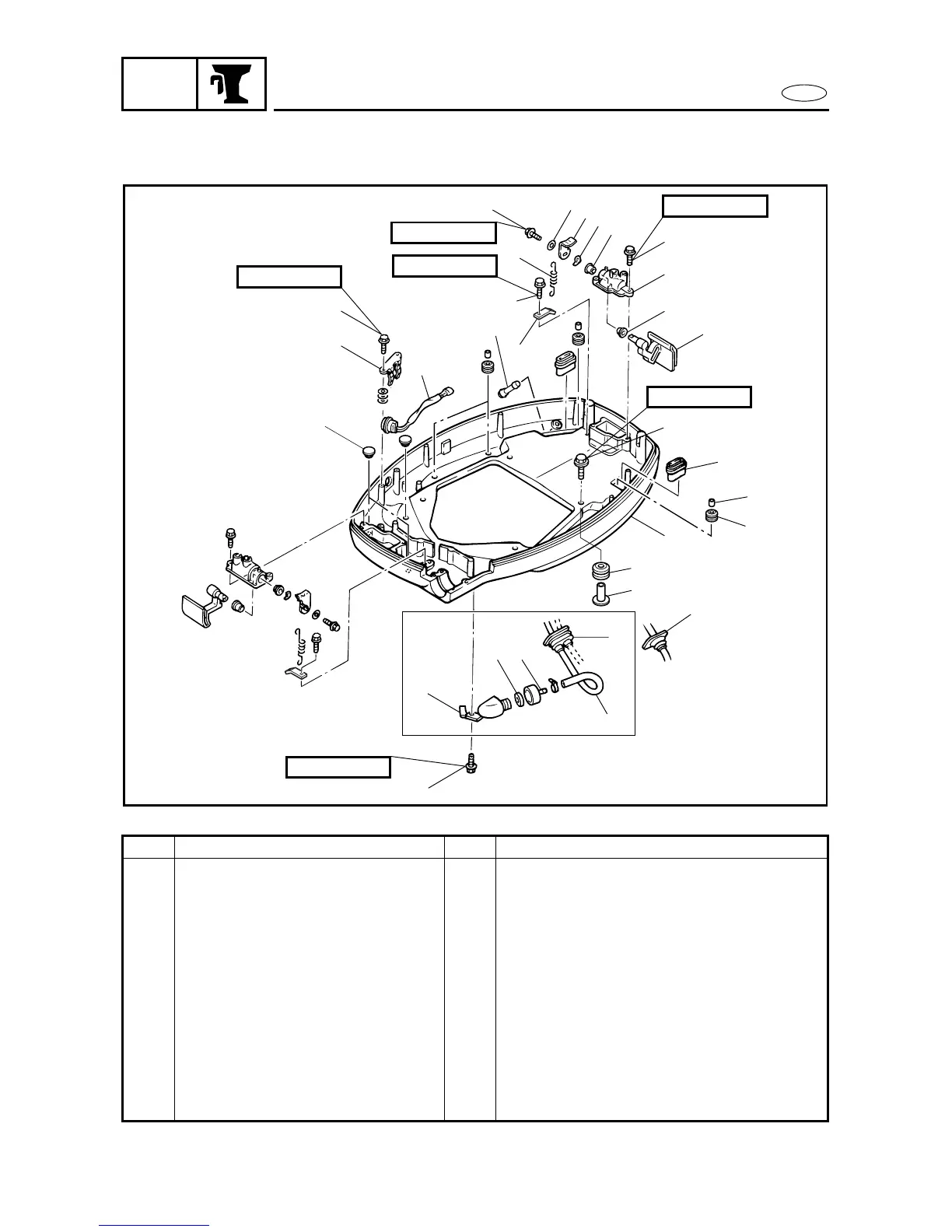

REMOVING/INSTALLING THE BOTTOM COWLING
Order Job/Part Q’ty Remarks
Power unit Refer to “POWER UNIT” on page 5-4.
1 Bolt 4
2 Bolt 2
3 Spring hook 2
4 Spring 2
5 Bolt 2
6 Washer 2
7 Clamp lever 2
8 Wave washer 2
9 Bushing 4
10 Clamp lever 2
Continued on next page.
7060
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
21
15
16
17 18
19
20
22
19
6 × 30 mm
6 × 20 mm
6 × 12 mm
6 × 16 mm
8 × 35 mm
6 × 20 mm
25
24
23
28
29
27
26
