Yamaha F115A - Installing the Forward Gear Assembly

6-43
E
LOWR
PROPELLER SHAFT HOUSING ASSEMBLY
(COUNTER ROTATION MODELS)

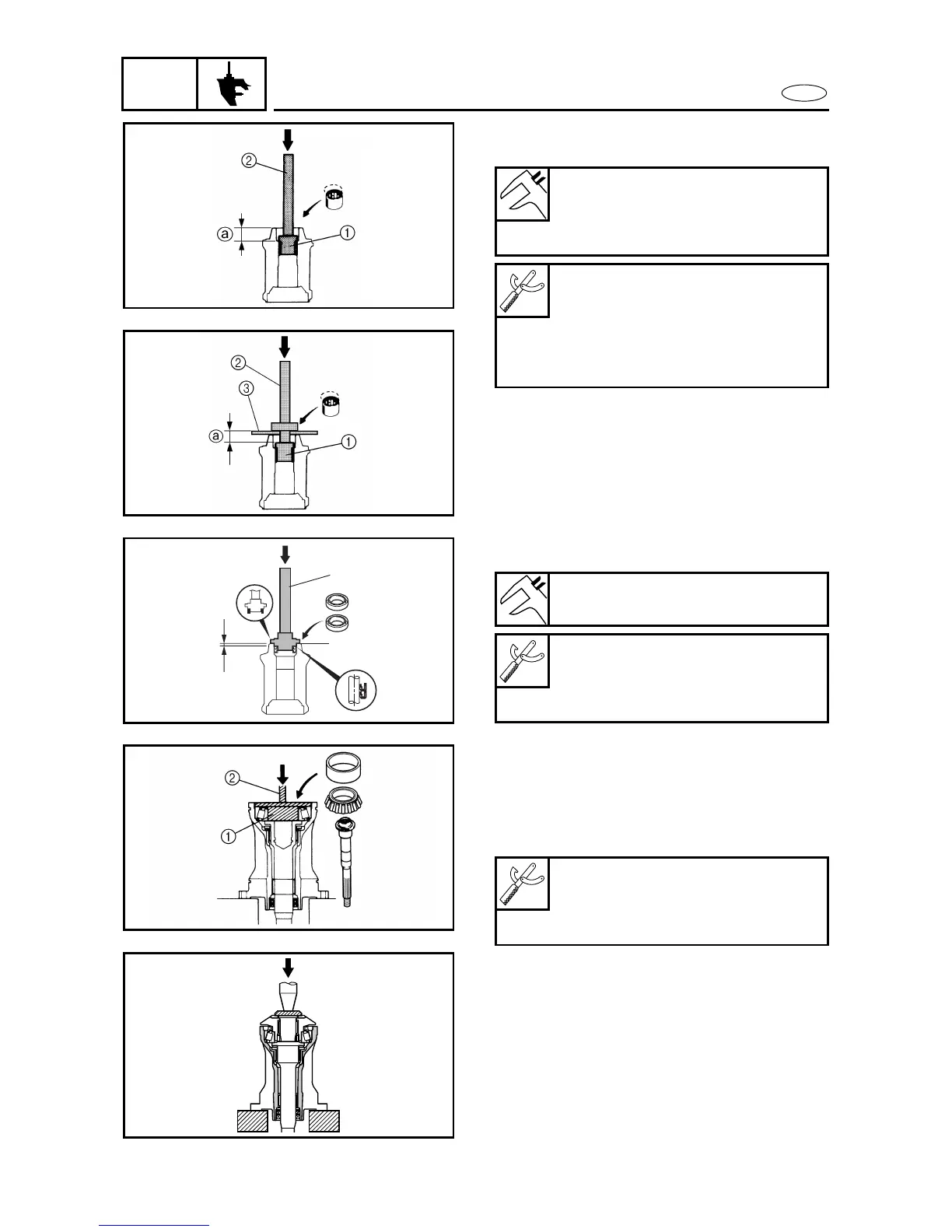

2. Install:
• Needle bearing
Å For USA and Canada
ı For worldwide
3. Install:
• Oil seal
Needle bearing installation
position a
24.75 - 25.25 mm
(0.974 - 0.994 in)
Bearing/oil seal attachment .... 1
YB-06196 / 90890-06610
Driver rod .................................. 2
YB-06071 / 90890-06604
Bearing/oil seal depth plate .... 3
90890-06603
Oil seal installation position a
4.75 - 5.25 mm (0.187 - 0.207 in)
Bearing/oil seal attachment .... 1
YB-06195
Driver rod .................................. 2
YB-06071
6610
Å
6200
ı
6620
a
1
2
INSTALLING THE FORWARD GEAR
ASSEMBLY
6
1. Install:
• Rear propeller shaft
• Tapered roller bearing
2. Install:
• Thrust washer
• Forward gear
Bearing/oil seal attachment .... 1
YB-06430 / 90890-06656
Driver rod .................................. 2
YB-06071 / 90890-06606
6630
6640
