Yamaha F115A - Checking the Starter Relay

8-23
–+
ELEC
E
STARTING SYSTEM
CHECKING THE BATTERY 8
Refer to “CHECKING THE BATTERY”
on page 3-21.
CHECKING THE FUSES 8
Refer to “CHECKING THE FUSES” on
page 8-11.
CHECKING THE WIRE HARNESS
CONTINUITY
8
Check:
• Wire harness continuity
No continuity → Replace.
CHECKING THE WIRE CONNECTIONS 8
Check:
• Wire connections
Poor connection → Properly connect.
CHECKING THE STARTER RELAY 8
Check:
• Starter relay continuity
No continuity → Replace.

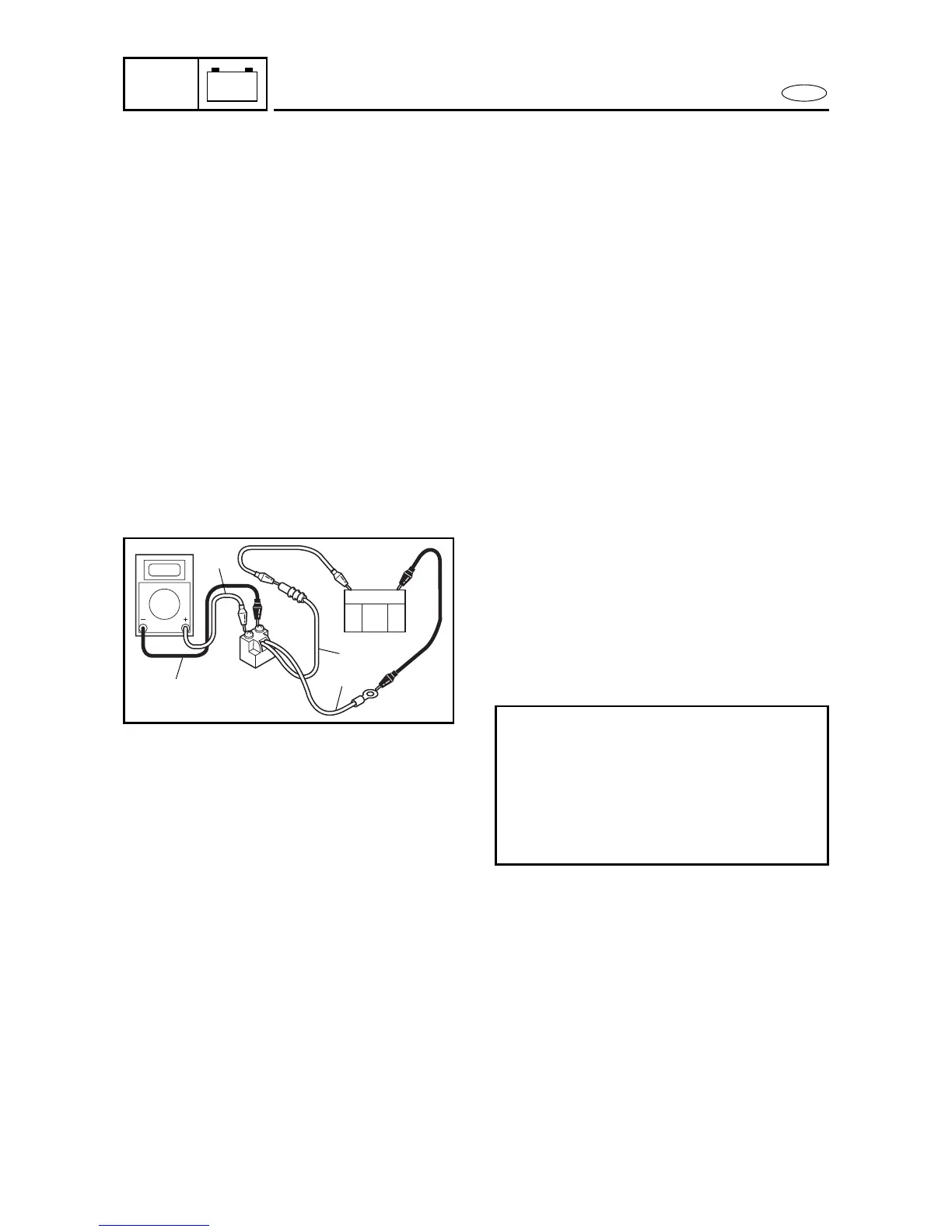

Checking steps
(1) Connect the tester and battery between
the starter relay terminals.
(2) Check that there is continuity between
the starter relay terminals.
Positive digital tester probe 1 →
Starter relay terminal
Negative digital tester probe 2 →
Starter relay terminal
Positive battery terminal →
Brown lead 3
Negative battery terminal →
Black lead 4
+-
1
2
4
3
8360
