Yamaha F115A - Checking the Power Trim and Tilt Relay

8-34
–+
ELEC
E
POWER TRIM AND TILT SYSTEM
CHECKING THE BATTERY 8
Refer to “CHECKING THE BATTERY”
on page 3-21.

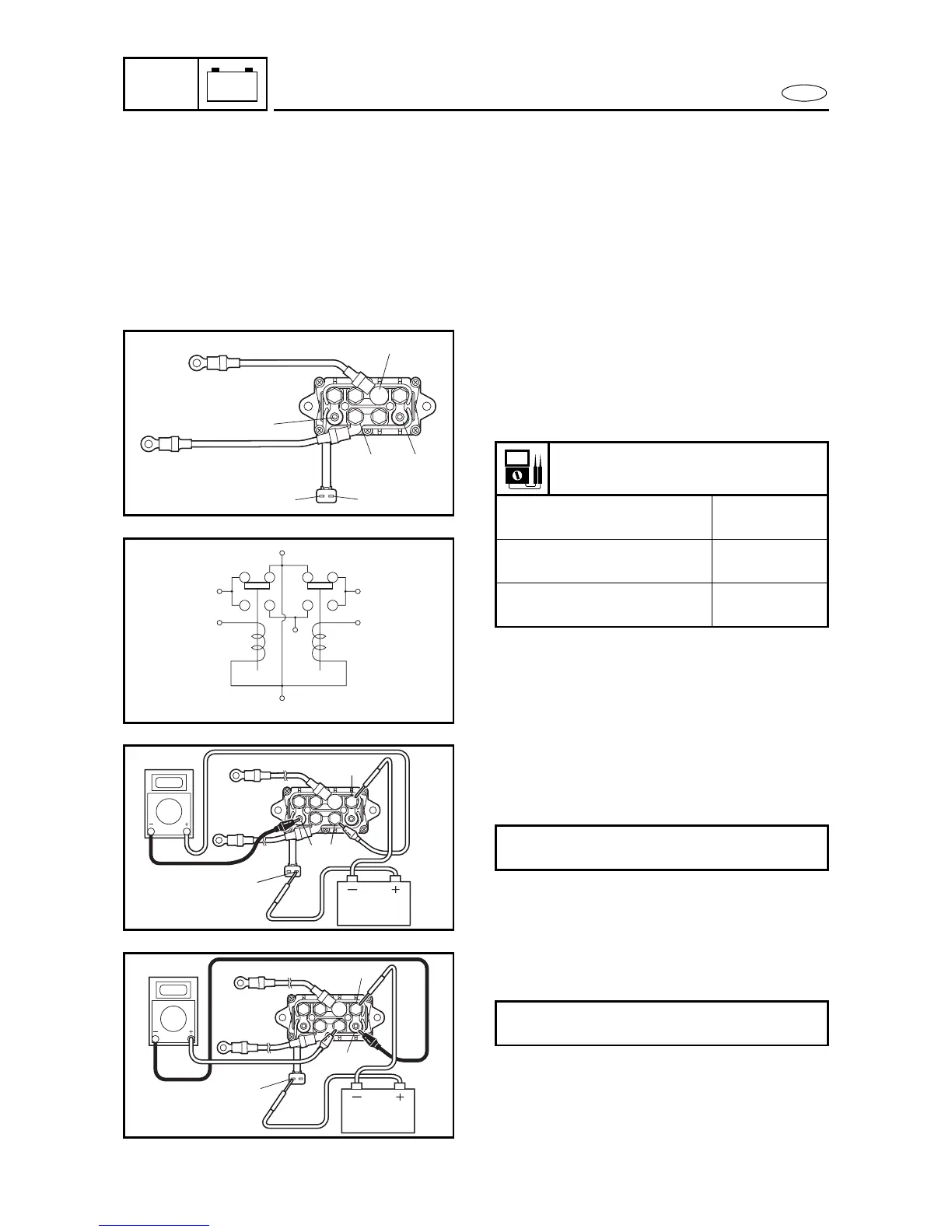

CHECKING THE POWER TRIM AND
TILT RELAY
8
1. Check:
• Power trim and tilt relay continuity
Out of specification → Replace.
2. Check:
• Power trim and tilt relay operation
No continuity → Replace.
Checking steps
(1) Connect the digital tester between
power trim and tilt relay terminals 1
and +.
(2) Connect a 12-V battery as shown.
(3) Check that there is continuity between
the power trim and tilt relay terminals.
(4) Connect the digital tester between
power trim and tilt relay terminals +
and 2.
(5) Connect a 12-V battery as shown.
(6) Check that there is continuity between
the power trim and tilt relay terminals.
Power trim and tilt relay
continuity
Sky blue (Sb) – Black (B)
Light green (Lg) – Black (B)
Continuity
Terminal 1 – Terminal -
Terminal 2 – Terminal -
Continuity
Terminal 1 – Terminal +
Terminal 2 – Terminal +
No continuity
Light green (Lg) lead → Positive terminal
Terminal - → Negative terminal
Sky blue (Sb) lead → Positive terminal
Terminal - → Negative terminal
2
+
-
1
Lg
Sb
8510
8520
21
Lg
Sb
B
+
-
1
+
-
Lg
Sb
8530
2
-
Sb
8540
