Yamaha F115A - Removing;Installing the Low-Pressure Fuel Line

4-26
FUEL
E
LOW-PRESSURE FUEL LINE
LOW-PRESSURE FUEL LINE
4

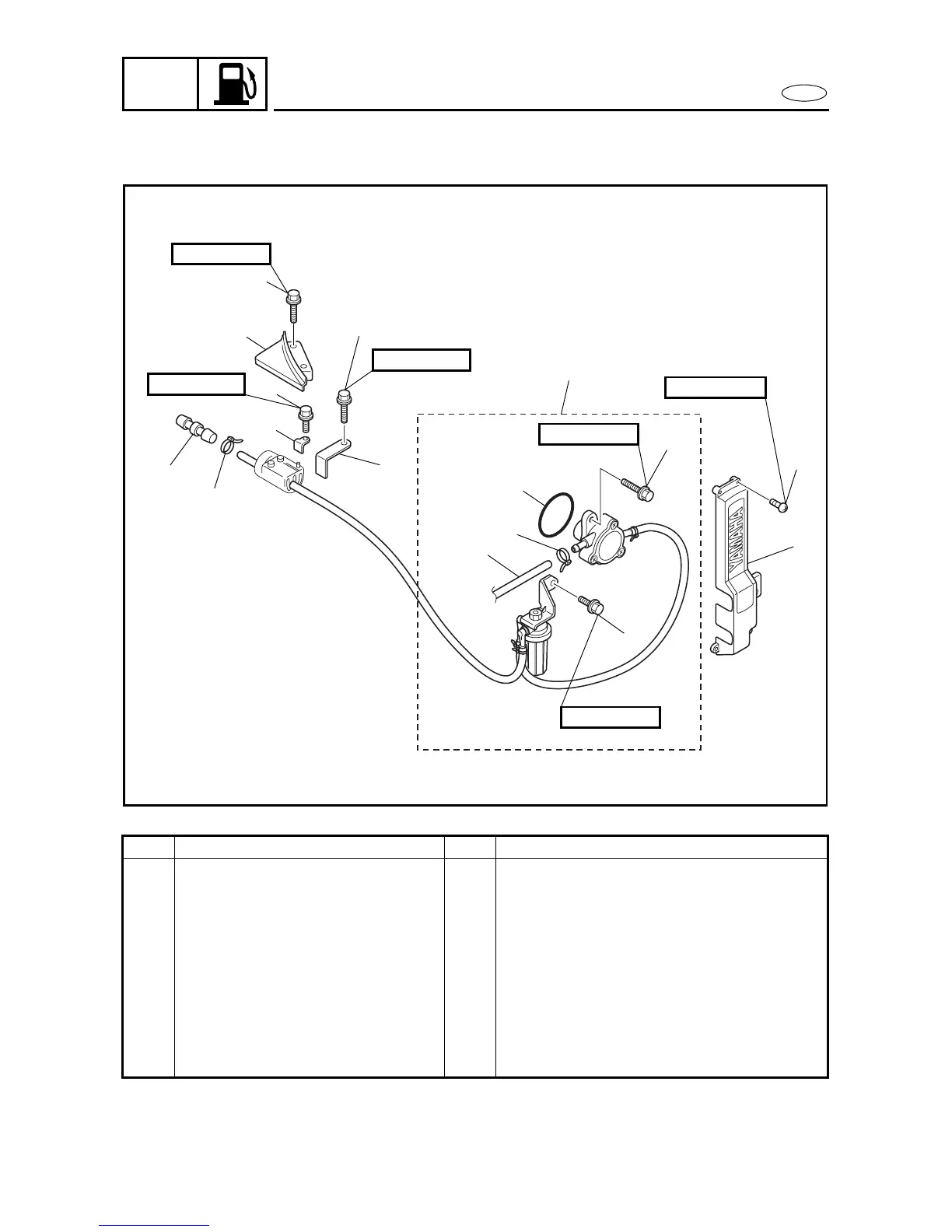

REMOVING/INSTALLING THE LOW-PRESSURE FUEL LINE 4
Order Job/Part Q’ty Remarks
1 Bolt 2
2 Grommet retaining plate 1
3 Bolt 1
4 Plate 1
5 Bolt 1
6 Clamp plate 1
7 Bolt 1
8 Screw 5
9 Plug cover 1
Continued on next page.
6 × 20 mm
6 × 28 mm
6 × 16 mm
6 × 35 mm
6 × 28 mm
1
2
3
5
6
7
13
12
11
10
8
9
4
15
14
6 × 16 mm
16
