3-18
E
INSP
ADJ
POWER TRIM AND TILT SYSTEM/LOWER UNIT

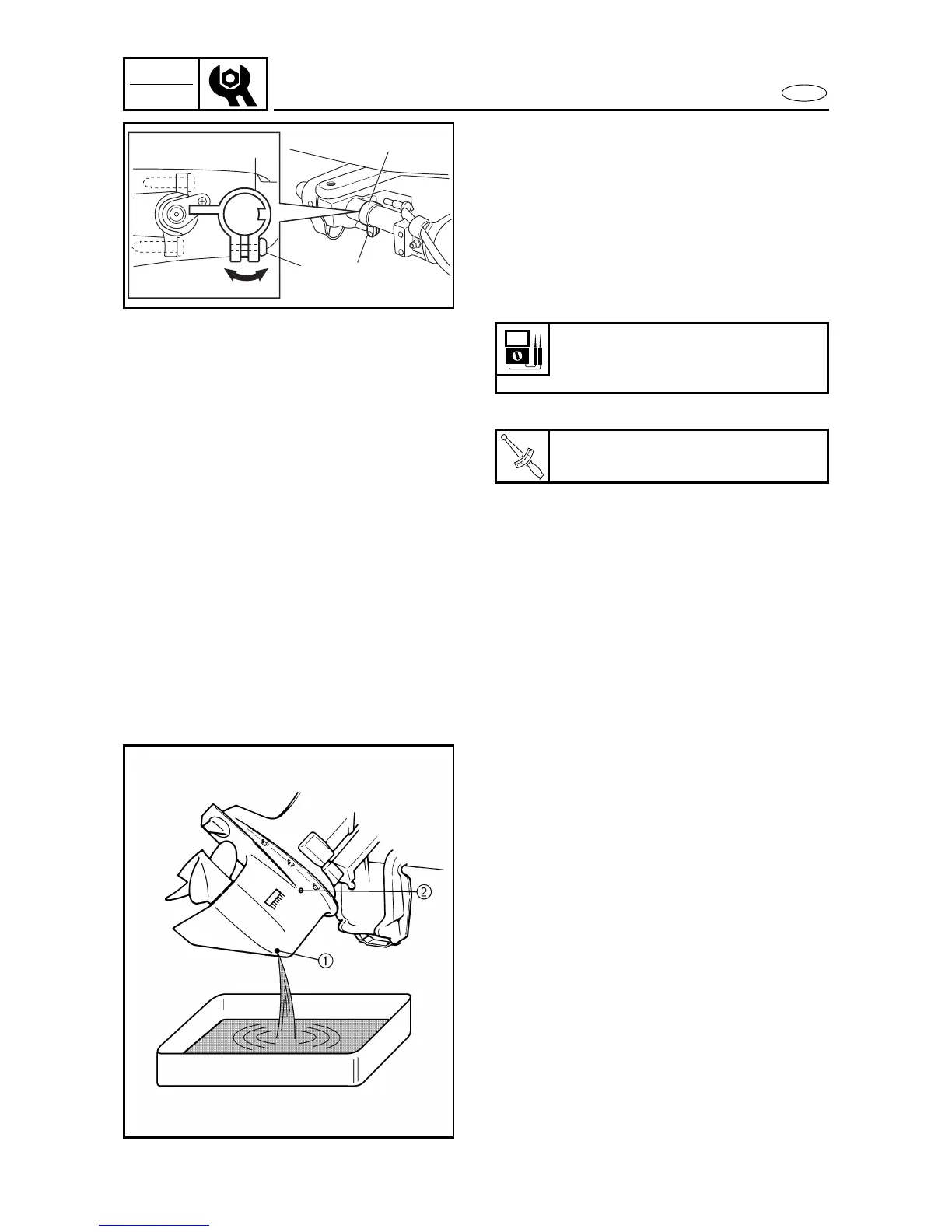

2. Adjust:
• Trim sensor cam position
Adjusting steps
(1) Fully tilt the outboard to full trim-in
position.
(2) Loosen the screw 1.
(3) Adjust the position of the trim sensor
cam 2 until the specified resistance is
obtained.
(4) Tighten the screw.
Trim sensor resistance
Pink (P) – Black (B)
80 ± 12 Ω at 20 ˚C (68 ˚F)
T
R
.
.
Trim sensor cam screw
2 Nm (0.2 m • kgf, 1.4 ft • lb)
2
1
1
2
3325
LOWER UNIT 3
CHECKING THE GEAR OIL LEVEL 3
Check:
• Gear oil level
Level is low → Add gear oil to the
proper level.
CHANGING AND CHECKING THE
GEAR OIL
3
1. Check:
• Gear oil
Milky oil → Replace the oil seal.
Slag oil → Check the gears, bearings,
and clutch dog.
Checking steps
(1) Tilt up the outboard slightly.
(2) Place a container under the gear oil
drain screw 1.
(3) Remove the gear oil drain screw and
gear oil level check screw 2.
3330
To Next Page
