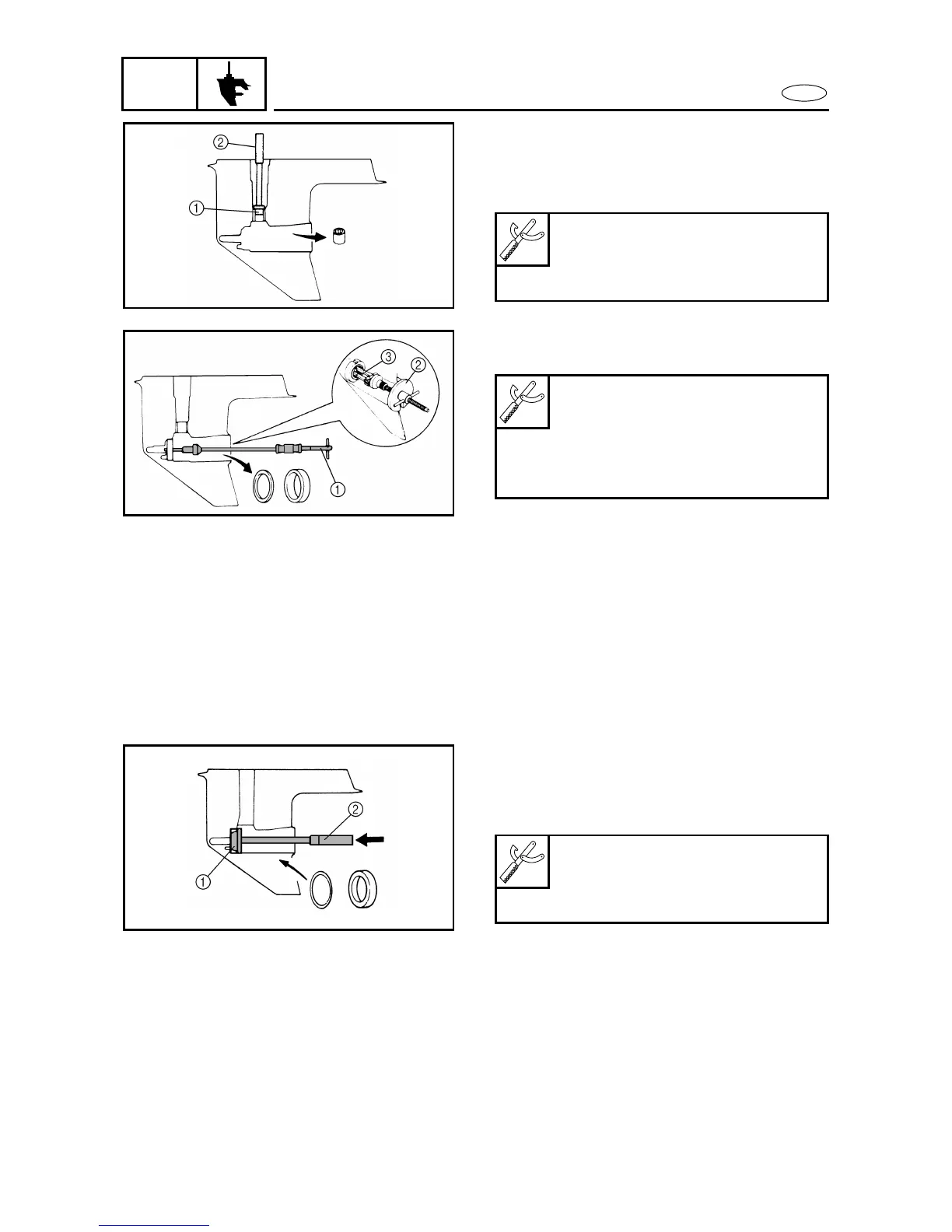

Yamaha F115A - Disassembling the Lower Case Assembly; Checking the Drive Shaft Sleeve; Checking the Needle Bearing; Assembling the Lower Case Assembly

6-24
E
LOWR
DISASSEMBLING THE LOWER CASE
ASSEMBLY
6
1. Remove:
• Needle bearing
Bearing/oil seal attachment .... 1
YB-06194 / 90890-06636
Driver rod .................................. 2
YB-06071 / 90890-06605
6360
2. Remove:
• Tapered roller bearing outer race
Slide hammer............................ 1
YB-06096
Bearing puller............................ 2
90890-06523
Large universal claws............... 3
90890-06532
6370
CHECKING THE DRIVE SHAFT SLEEVE6
Check:
• Drive shaft sleeve
Damage/wear → Replace.
CHECKING THE NEEDLE BEARING 6
Check:
• Needle bearing
Pitting/rumbling → Replace.
ASSEMBLING THE LOWER CASE
ASSEMBLY
6
1. Install:
• Tapered roller bearing outer race
Bearing/oil seal attachment .... 1
YB-06199 / 90890-06620
Driver rod .................................. 2
YB-06071 / 90890-06605
6380
LOWER CASE ASSEMBLY
(REGULAR ROTATION MODELS)
