5-9
POWR
E
STATOR COIL ASSEMBLY
STATOR COIL ASSEMBLY
5

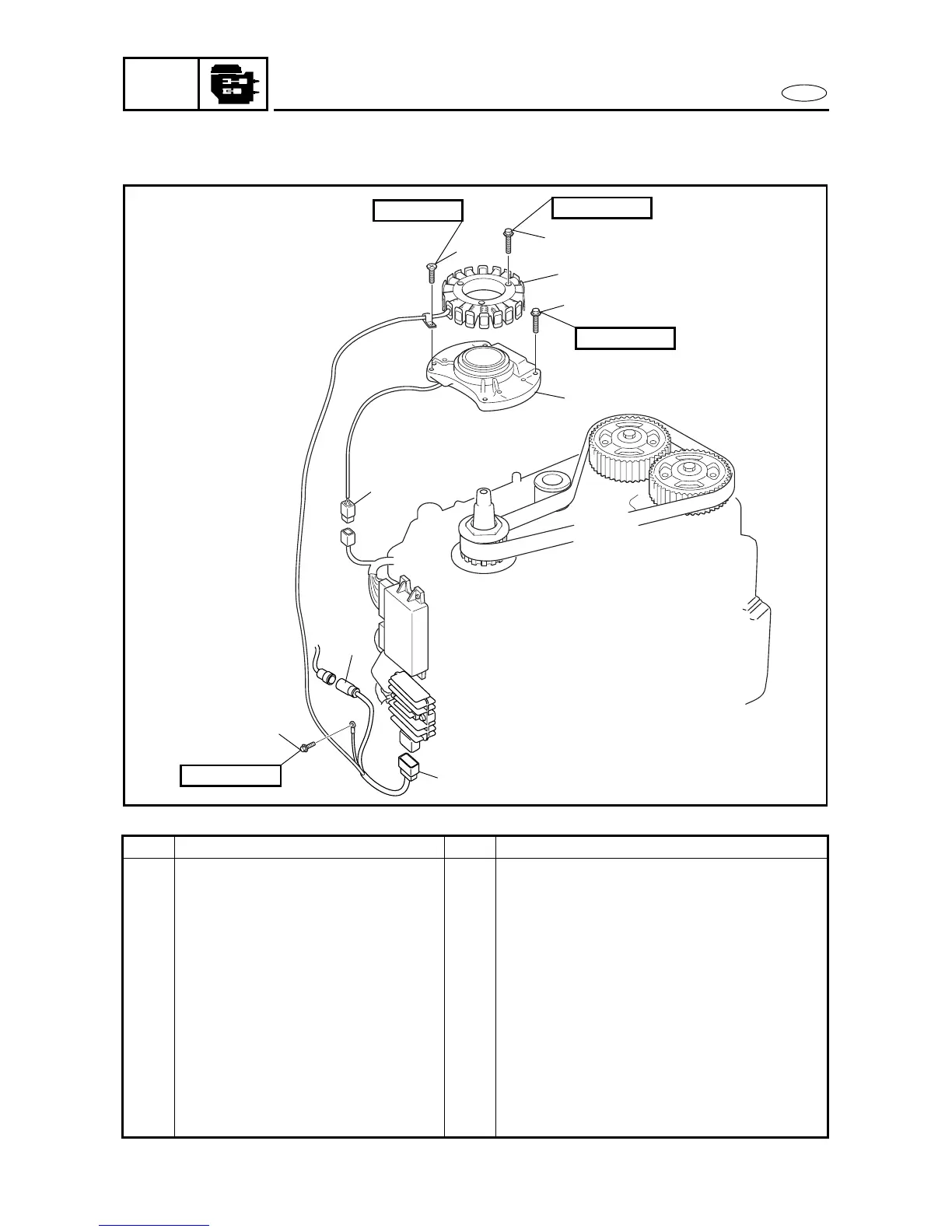

REMOVING/INSTALLING THE STATOR COIL ASSEMBLY
4
Order Job/Part Q’ty Remarks
Flywheel magnet assembly Refer to “FLYWHEEL MAGNET
ASSEMBLY” on page 5-1.
1 Stator coil coupler 1
2 Rectifier/regulator connector 1
3 Bolt 1
4 Screw 1
5 Bolt 3
6 Lighting coil assembly 1
7 Pulser coil connector 1
8 Bolt 4
9 Base 1
For installation, reverse the removal
procedure.
4
5
6
8
7
3
9
4 × 8 mm
6 × 28 mm
6 × 28 mm
2
6 × 16 mm
1
5110
