DRIVE SHAFT (REGULAR ROTATION MODELS)
CHECKING THE PINION 6
Check:
• Teeth
Damage/wear → Replace.
CHECKING THE DRIVE SHAFT 6
Check:
• Drive shaft
Damage/wear → Replace.
CHECKING THE DRIVE SHAFT
HOUSING
6
Check:
• Drive shaft housing
Cracks/damage → Replace.
CHECKING THE BEARINGS 6
Check:
• Bearings
Pitting/rumbling → Replace.
ASSEMBLING THE FORWARD GEAR
ASSEMBLY
6

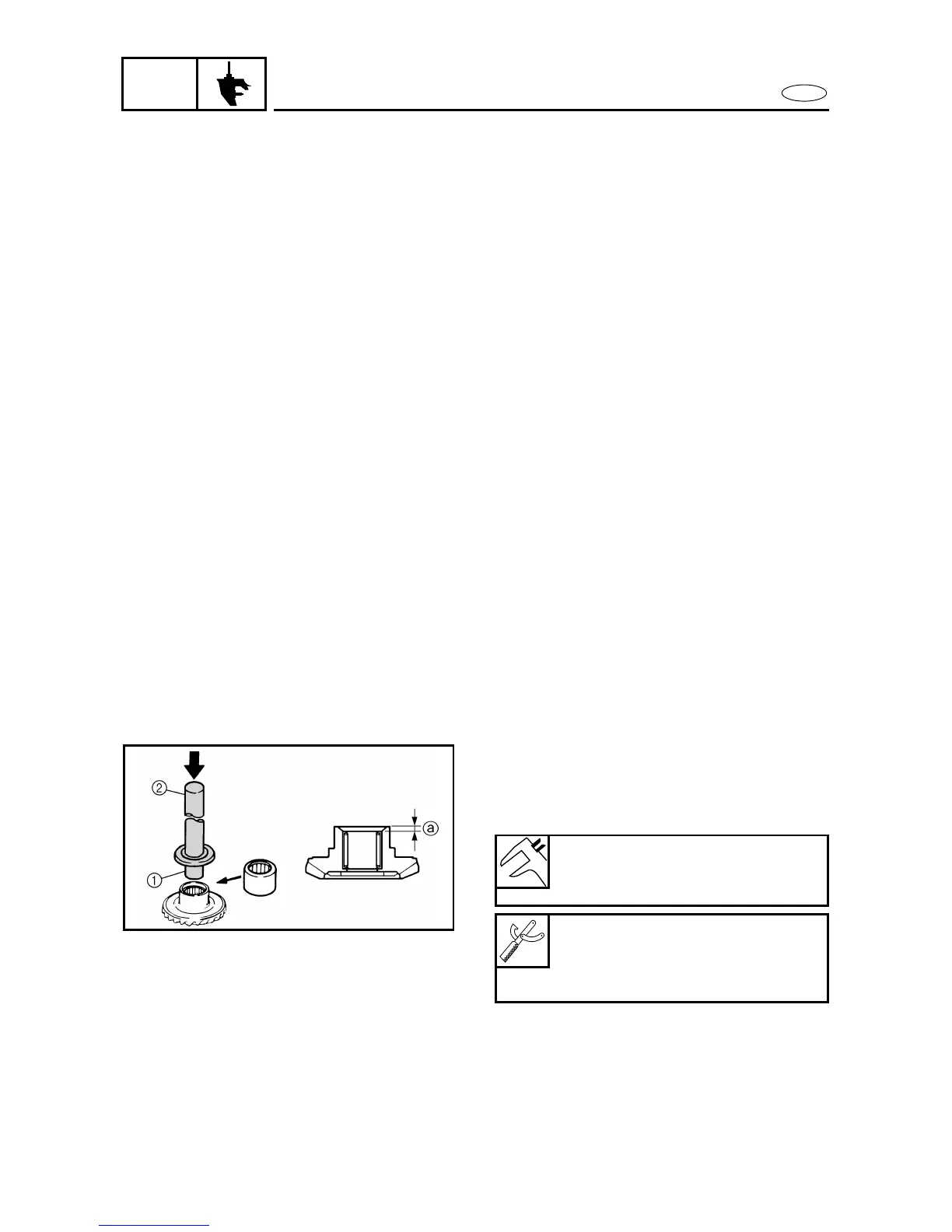

1. Install:
• Needle bearing
Needle bearing installation
position a
2.5 - 3.5 mm (0.098 - 0.138 in)
Bearing/oil seal attachment .... 1
YB-06200 / 90890-06612
Driver rod .................................. 2
YB-06071 / 90890-06604
