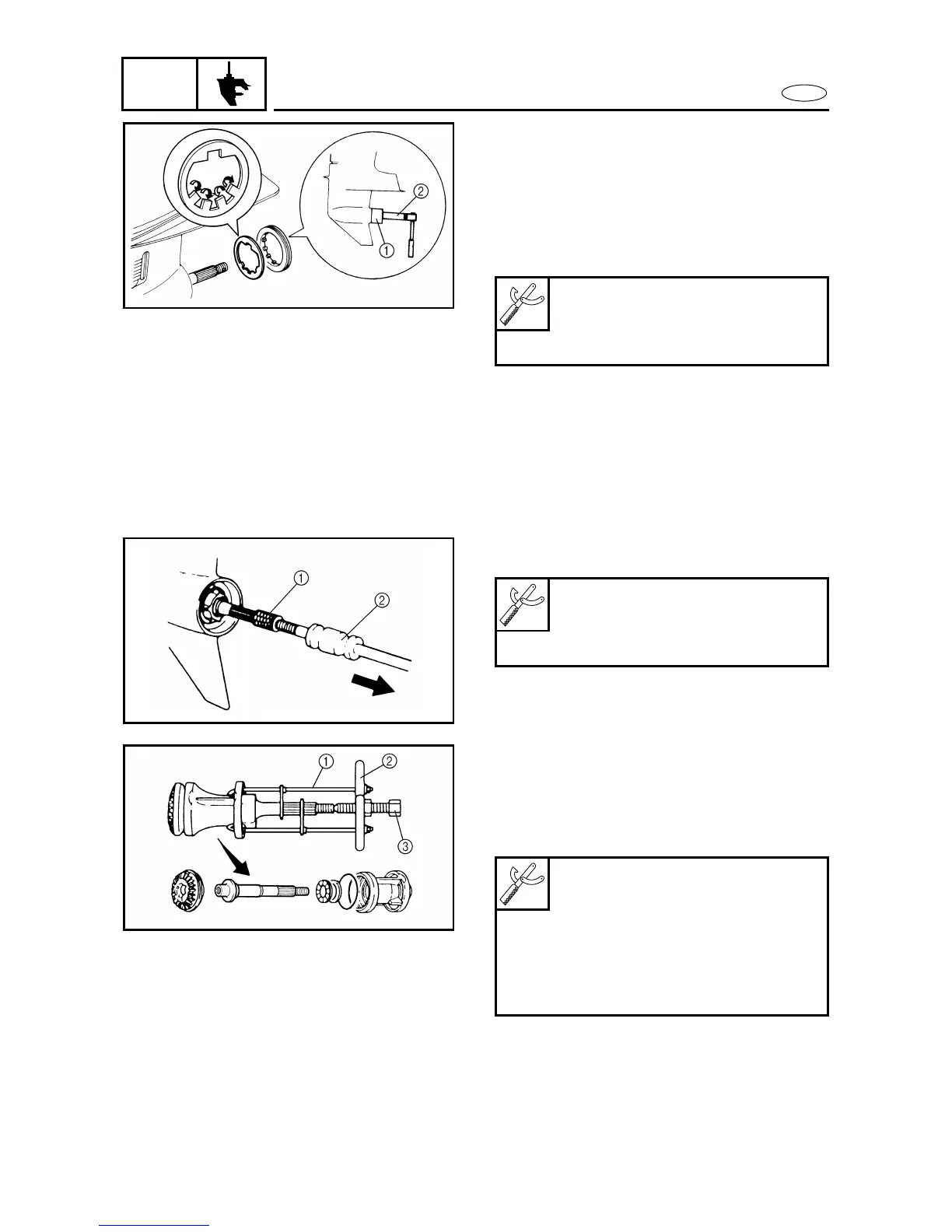

Yamaha F115A - Removing the Forward Gear Assembly

6-39
E
LOWR
REMOVING THE PROPELLER SHAFT
HOUSING ASSEMBLY
6
1. Straighten:
• Claw washer tabs
2. Remove:
• Ring nut
• Claw washer
Ring nut wrench ....................... 1
YB-34447 / 90890-06511
Ring nut wrench extension ..... 2
90890-06513
6110
3. Remove:
• Propeller shaft housing assembly
Slide hammer attachment....... 1
YB-06335 / 90890-06514
Slide hammer............................ 2
YB-06096 / 90890-06531
6490
REMOVING THE FORWARD GEAR
ASSEMBLY
6
Remove:
• Rear propeller shaft
• Forward gear assembly
Propeller shaft housing puller . 1
YB-06207 / 90890-06502
Universal puller
YB-06117
Guide plate................................ 2
90890-06501
Center bolt ................................ 3
90890-06504
6500
PROPELLER SHAFT HOUSING ASSEMBLY
(COUNTER ROTATION MODELS)
