POWER TRIM AND TILT MOTOR

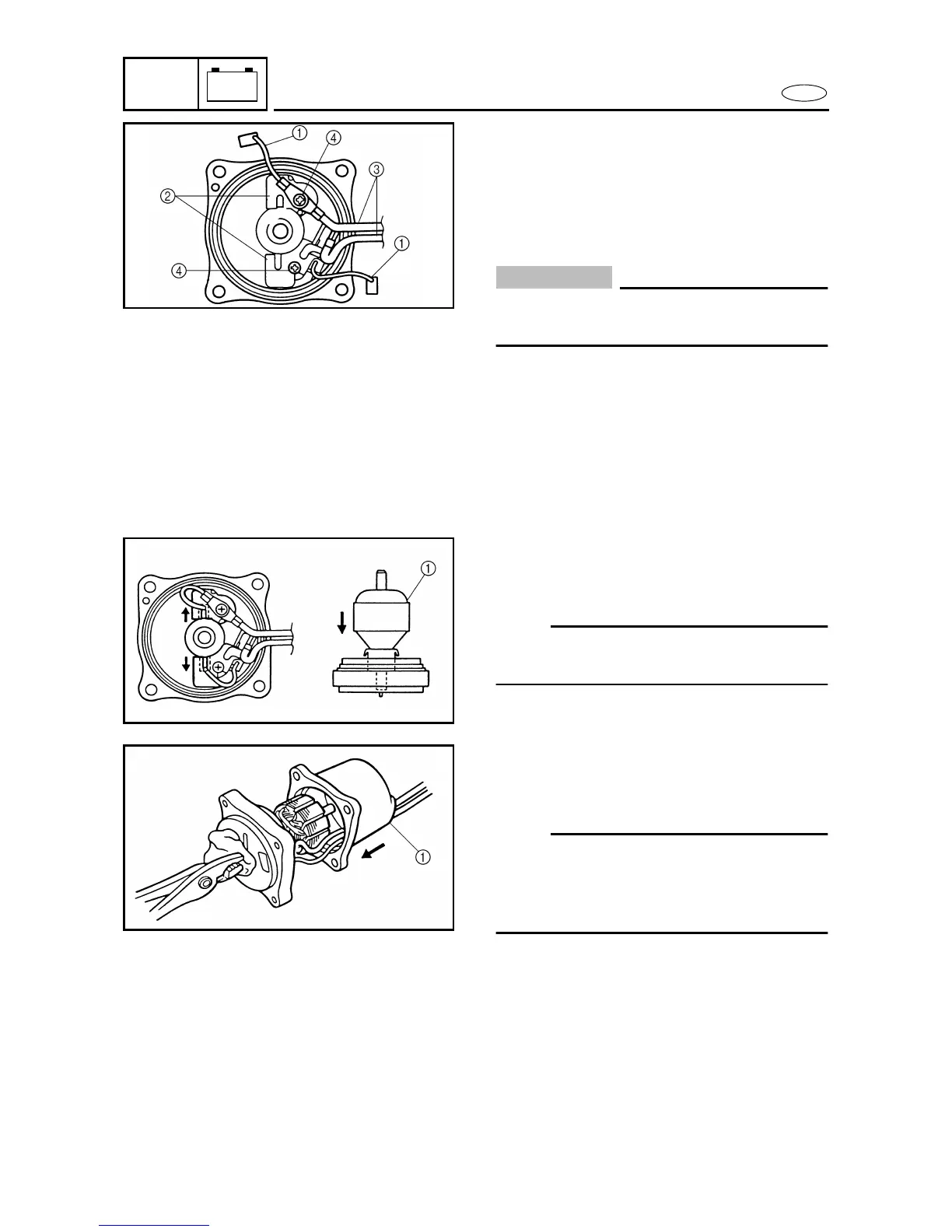

INSTALLING THE BRUSH 8
Install:
• Brushes 1
• Brush holders 2
• Power trim and tilt motor leads 3
• Screw 4
CAUTION:
Do not touch the bimetal; touching it may
affect the operation of the breaker.
8670
INSTALLING THE ARMATURE 8
Install:
• Armature 1
NOTE:
Push the brushes into the holder and then
install the armature.
8680
INSTALLING THE STATOR 8
Install:
• Stator 1
NOTE:
Place a clean cloth over the end of the
armature shaft and carefully push the arma-
ture into the stator with a pair of pliers as
shown.
8690
