Yamaha F115A - CRANKSHAFT AND PISTON;CONNECTING ROD ASSEMBLY

5-36
POWR
E
CRANKSHAFT AND PISTON/
CONNECTING ROD ASSEMBLY
CRANKSHAFT AND PISTON/CONNECTING ROD ASSEMBLY
5

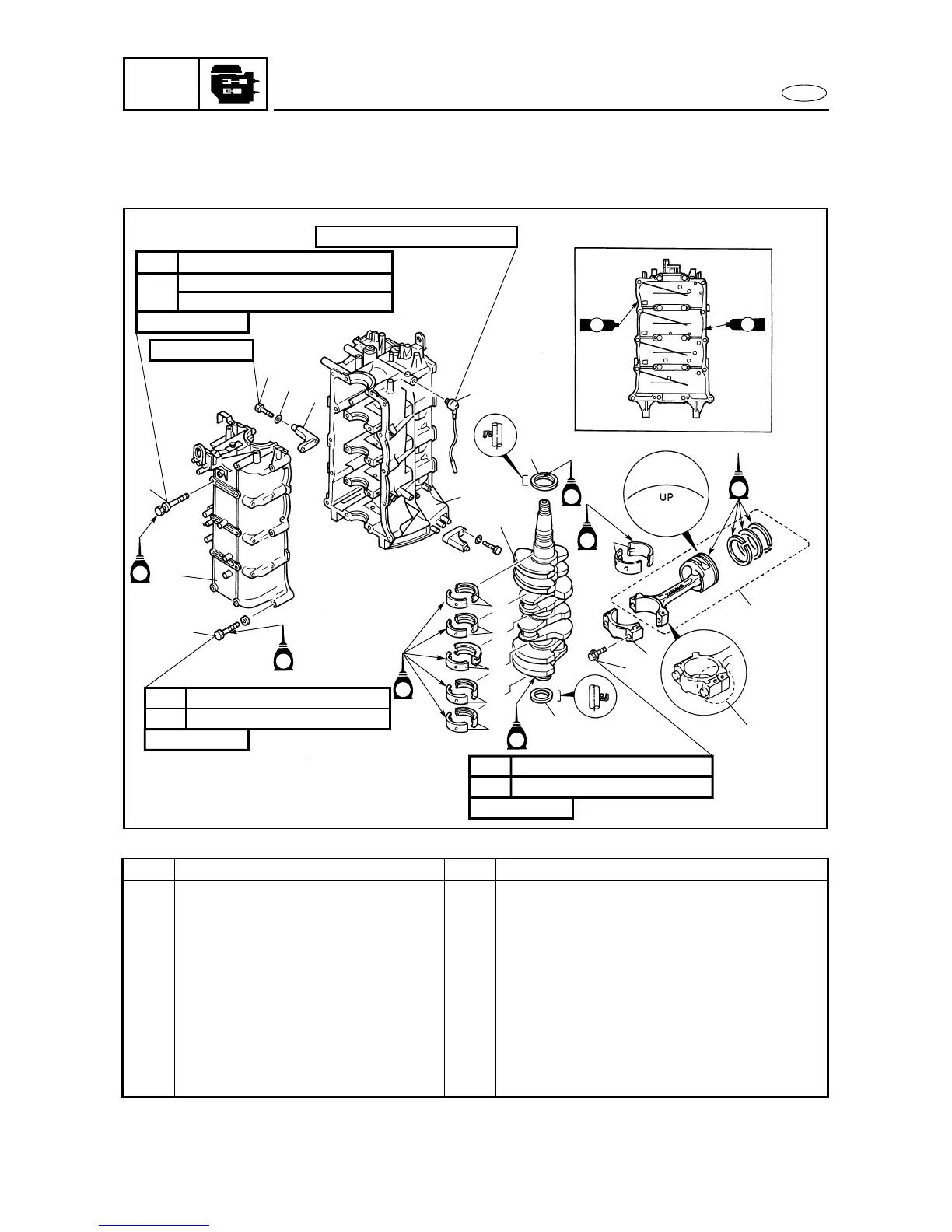

REMOVING/INSTALLING THE CRANKSHAFT AND PISTON/CONNECTING ROD
ASSEMBLY
4
Order Job/Part Q’ty Remarks
Oil filter and exhaust cover Refer to “OIL FILTER AND EXHAUST
COVER” on page 5-32.
1 Bolt 2
2 Washer 2
3 Bracket 2
4 Oil pressure switch 1
5 Bolt 10
6 Bolt (1.5 mm thread pitch) 10
7 Crankcase 1
Continued on next page.
*: Torque value (for reference only)
19 Nm (1.9 m • kgf, 14 ft • Ib)1st
60°
2nd
10 × 135 mm
14 Nm (1.4 m • kgf, 10 ft • Ib)1st
28 Nm (2.8 m • kgf, 20 ft • Ib)2nd
8 × 55 mm
15 Nm (1.5 m • kgf, 11 ft • Ib)1st
60°2nd
8 × 38 mm
E
E
E
E
E
6
7
1
2
3
4
5
15
13
a
8
12
14
16
10
9
GM
GM
11
11
11
11
11
E
E
50 Nm (5.0 m • kgf, 36 ft • Ib)*
8 Nm (0.8 m • kgf, 5.8 ft • Ib)
6 × 25 mm
