4-4
FUEL
E

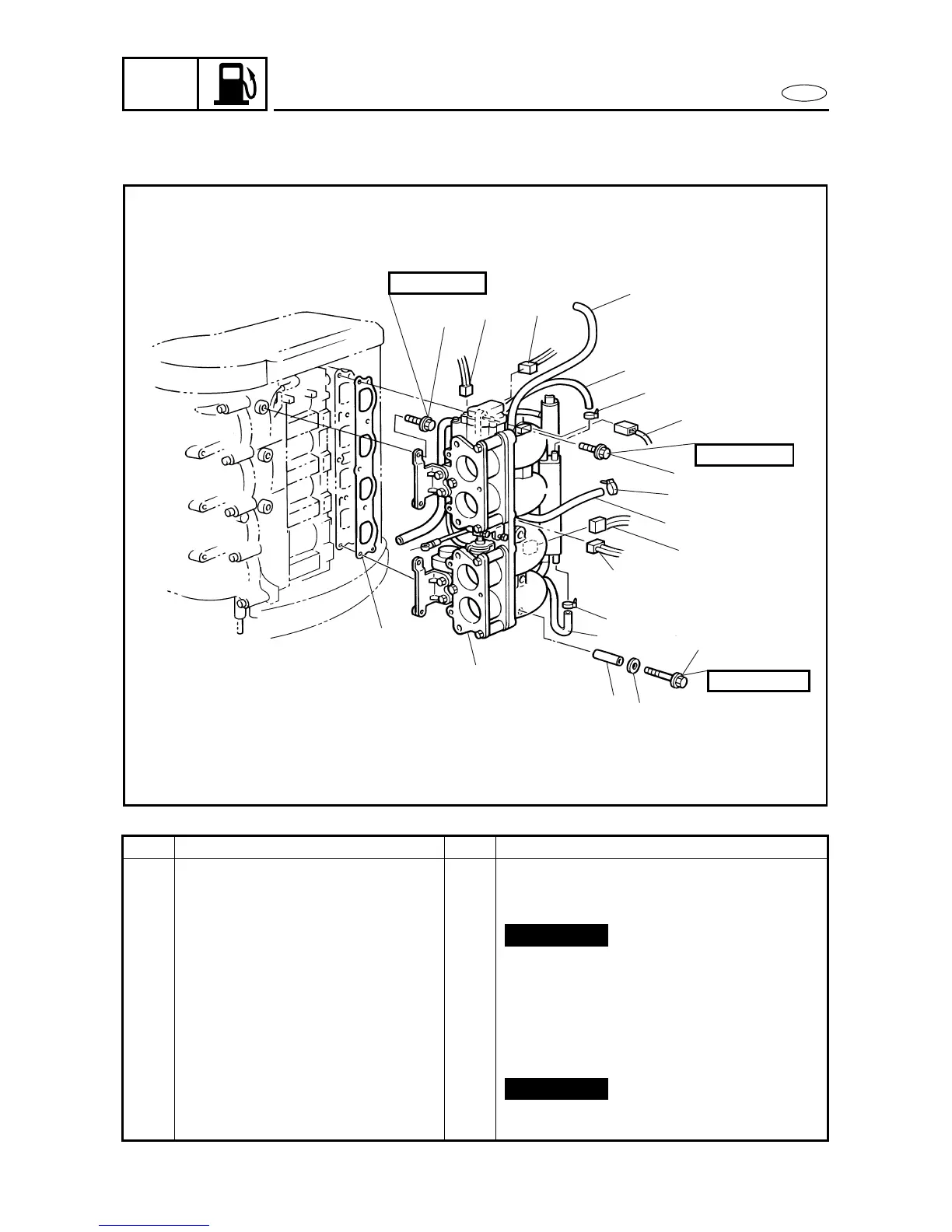

INTAKE ASSEMBLY
4
4
Order Job/Part Q’ty Remarks
9 Bolt 1
10 Washer 1
11 Collar 1
12 Plastic locking tie 1
13 Fuel inlet hose 1 (fuel pump-to-vapor separator)
14 Hose clamp 2
15 Water hose 1 (fuel cooler-to-water outlet)
16 Water hose 1 (fuel cooler-to-exhaust cover)
17 Hose 1
18 Intake assembly 1
19 Gasket 1
For installation, reverse the removal
procedure.
4010
7
3
2
17
15
14
4
8
12
5
6
9
10
11
14
16
1
8 × 40 mm
8 × 120 mm
6 × 20 mm
18
13
19
Not reusable
Not reusable
