Yamaha F115A - Page 146

4-9
FUEL
E

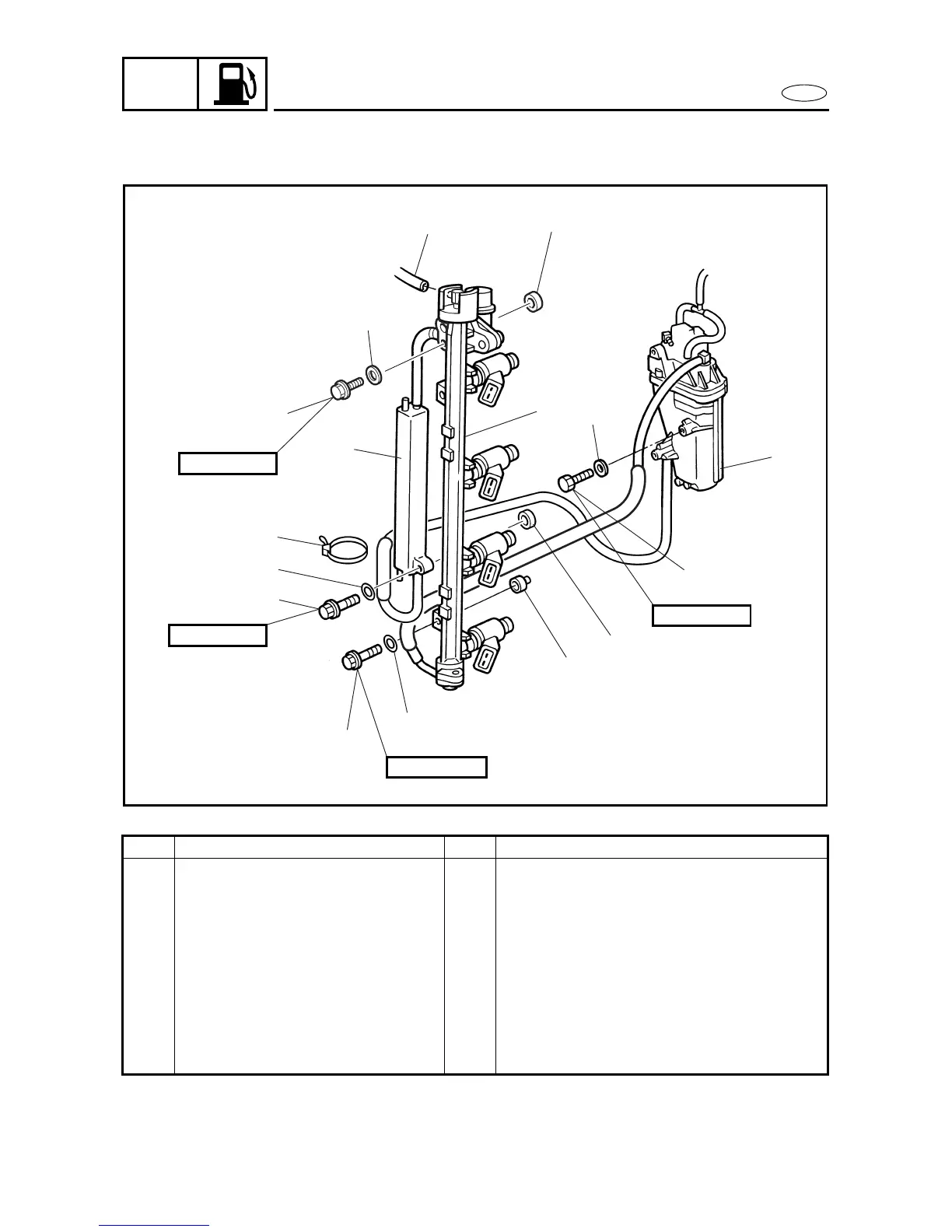

HIGH-PRESSURE FUEL LINE
4
4
Order Job/Part Q’ty Remarks
9 Hose 1 (intake manifold-to-pressure regulator)
10 Bolt 2
11 Washer 2
12 Bolt 1
13 Washer 1
14 Fuel rail 1
15 Collar 2
16 Collar 1
For installation, reverse the removal
procedure.
1
3
2
15
11
10
6
4
5
7
9
14
8
8 × 45 mm
6 × 30 mm
6 × 25 mm
12
13
16
6 × 10 mm
4040
