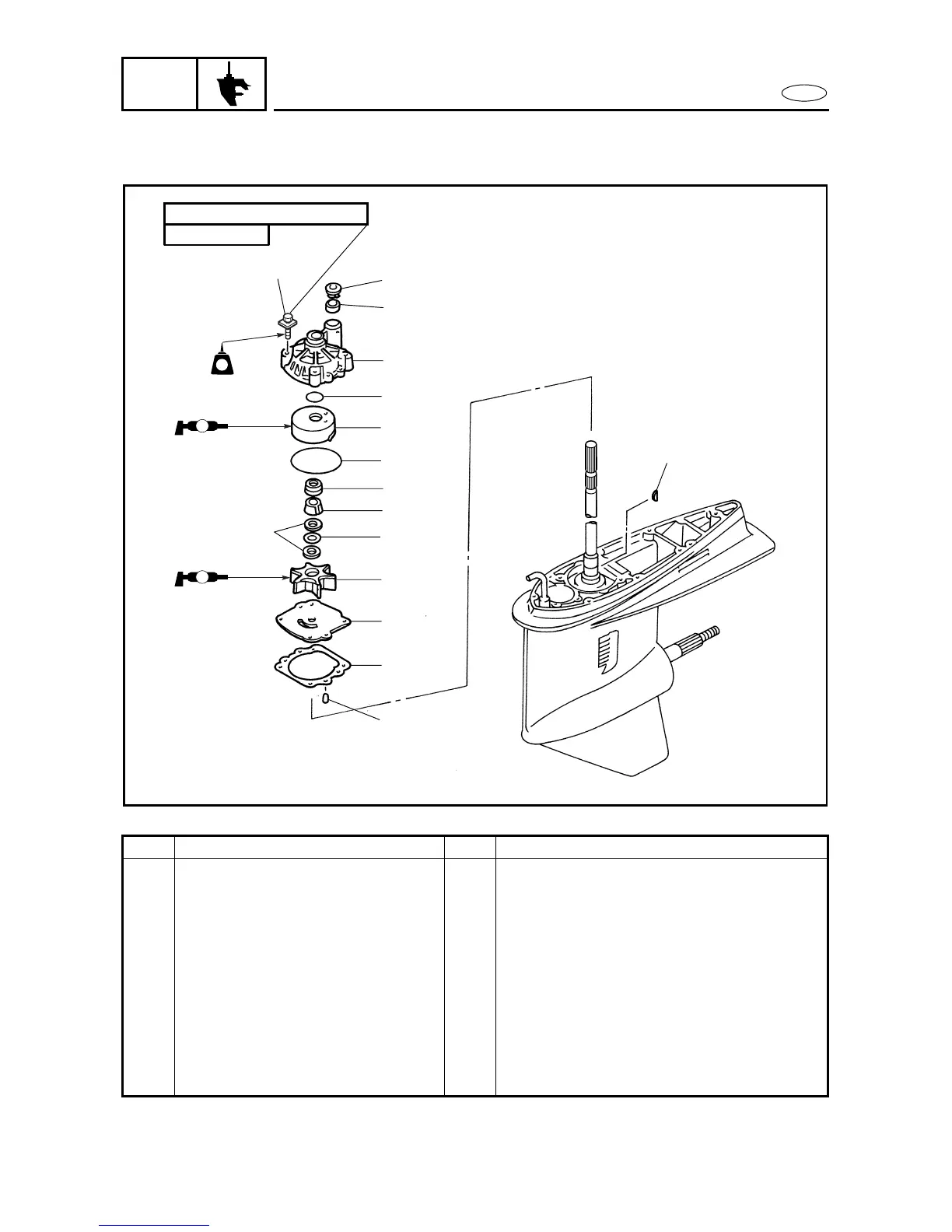

WATER PUMP (COUNTER ROTATION MODELS)
WATER PUMP (COUNTER ROTATION MODELS)
6
REMOVING/INSTALLING THE WATER PUMP 6
Order Job/Part Q’ty Remarks
Lower unit Refer to “LOWER UNIT (COUNTER
ROTATION MODELS)” on page 6-26.
1 Bolt 4
2 Impeller housing 1
3 Impeller housing cup 1
4 O-ring 1
5 O-ring 1
6 Grommet 1
7 Spacer 1
8 Collar 1
Continued on next page.
18 Nm (1.8 m
•
kgf, 13 ft
•
Ib)
6
7
2
4
3
5
8
9
11
10
12
14
15
16
13
A
A
LTLT
LT
572572
8 × 45 mm
1
6040
To Next Page
