7-6
BRKT
E

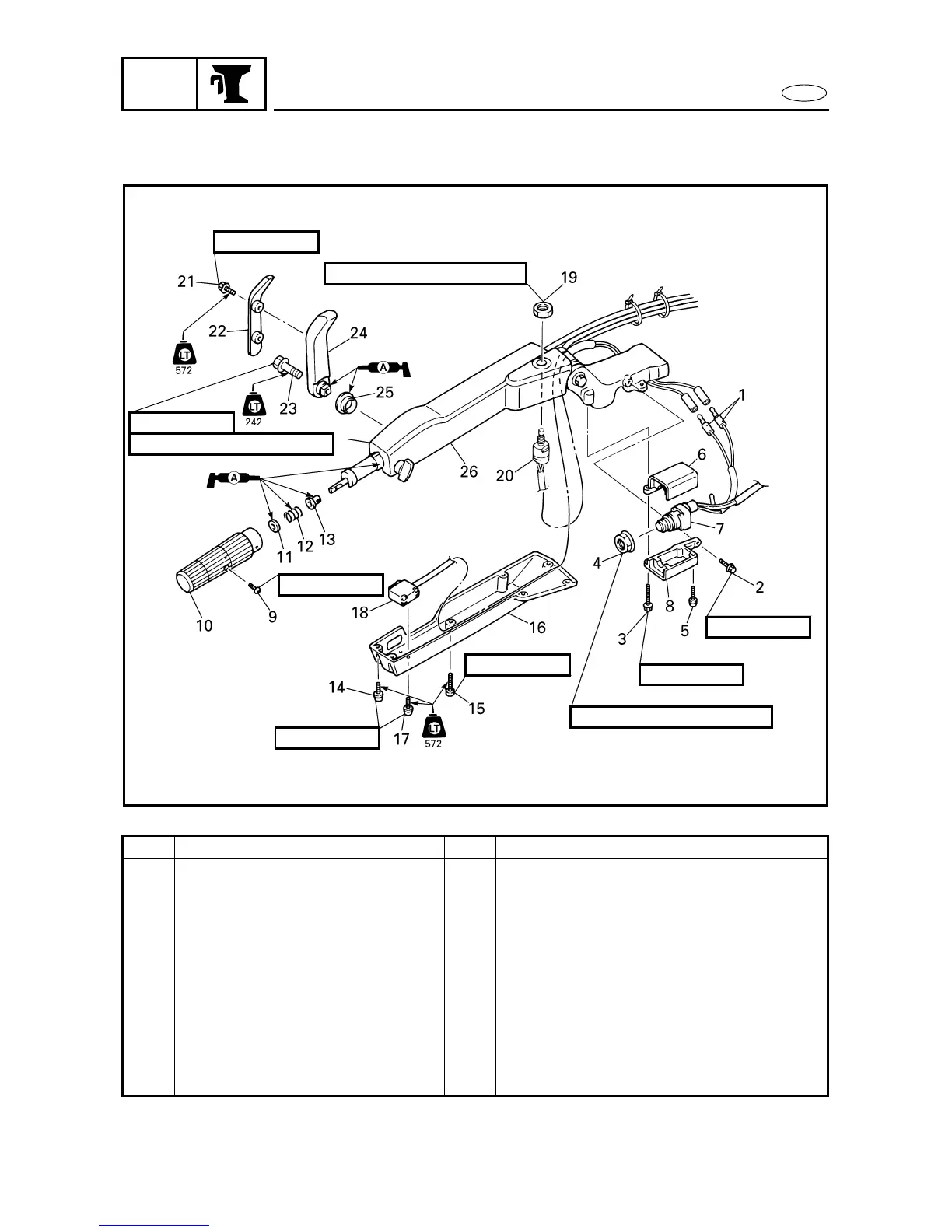

STEERING HANDLE (OPTION)
7
Order Job/Part Q’ty Remarks
18 Power trim and tilt switch 1
19 Nut 1
20 Engine stop lanyard switch 1
21 Screw 2
22 Shift lever cover 1
23 Bolt 1
24 Shift lever 1
25 Bushing 1
26 Steering handle sub assembly 1
For assembly, reverse the disassembly
procedure.
7030
5 × 20 mm
6 × 16 mm
6 × 16 mm
4 Nm (0.4 m • kgf, 2.9 ft • Ib)
8 × 40 mm
18 Nm (1.8 m • kgf, 13 ft • Ib)
6 × 40 mm
6 × 25 mm
6 × 20 mm
5 Nm (0.5 m • kgf, 3.7 ft • Ib)
