Yamaha F115A - Page 500

7-11
BRKT
E
7
Order Job/Part Q’ty Remarks
8 Washer 1
9 Clip 1
10 Bushing 1
11 Shift rod lever 1
12 Bolt 1
13 Spring 1
14 Ball 1
15 Cotter pin 1
16 Washer 1
Continued on next page.
4
1
7
8
12
13
14
15
16
21
17
22
23
24
18 Nm (1.8 m • kgf, 13 ft • Ib)
20
6
2
3
19
5
21
11
9
10
6 × 40 mm
6 × 25 mm
4 × 16 mm
18
6 × 12 mm
A
A
7050

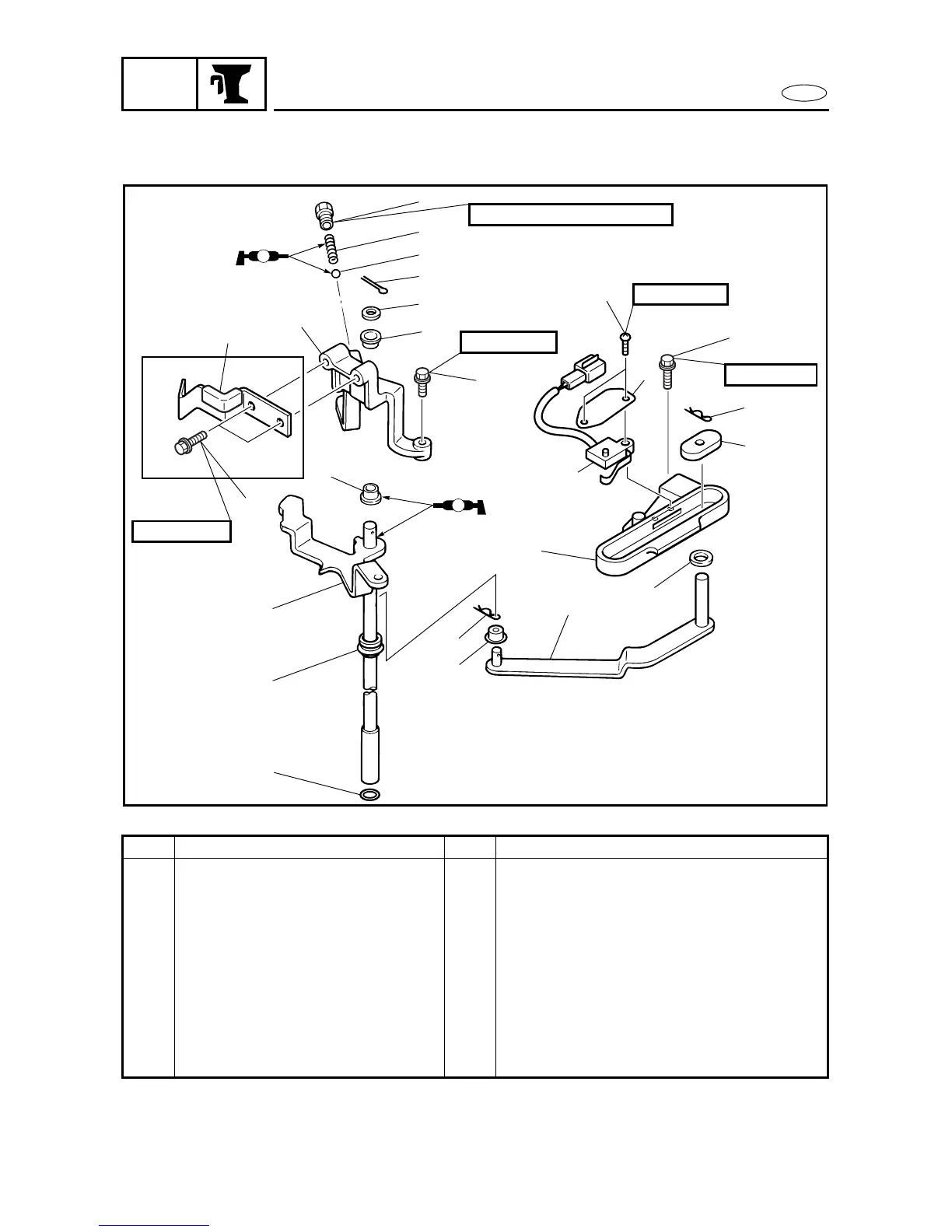

SHIFT ROD ASSEMBLY
