Yamaha F115A - Page 502

7-12
BRKT
E

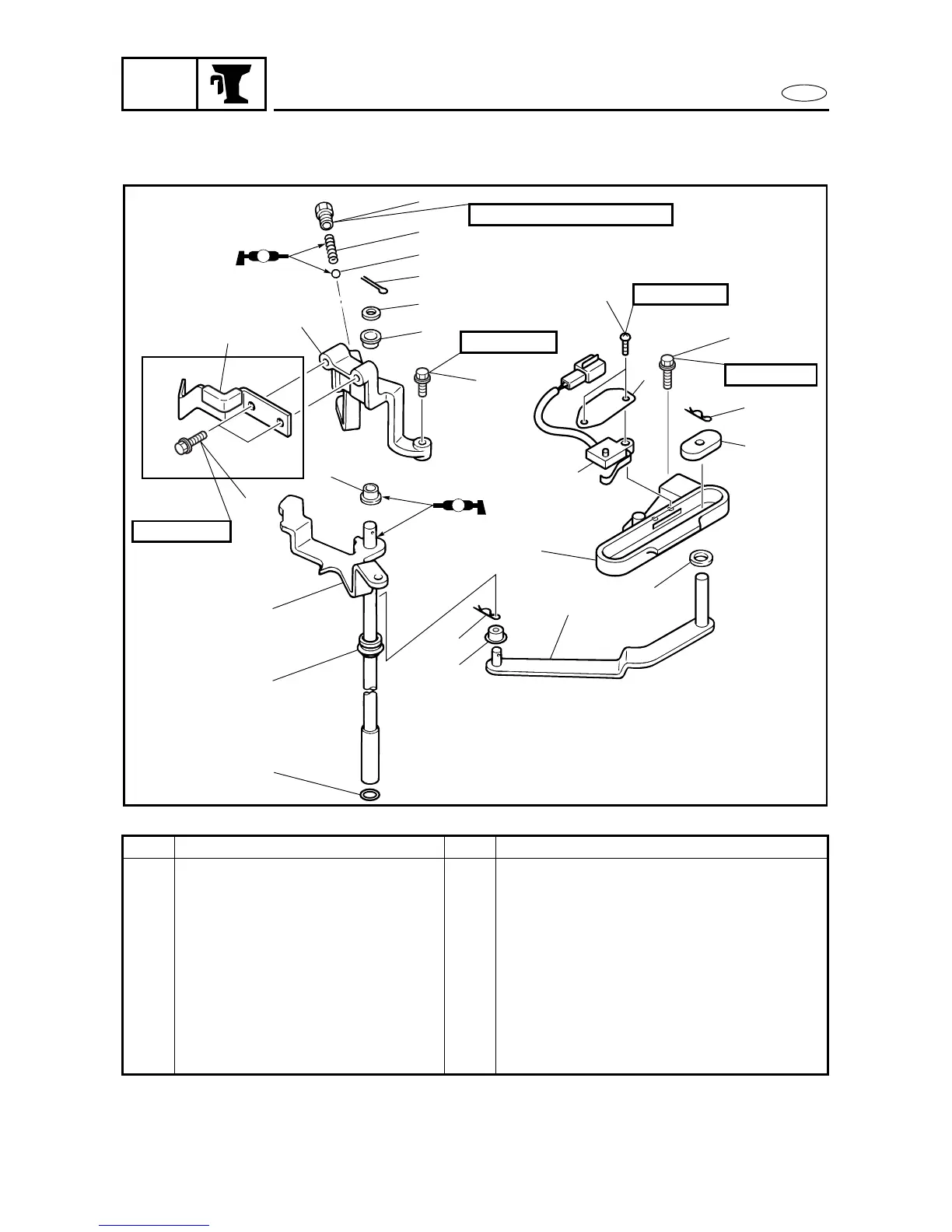

SHIFT ROD ASSEMBLY
7
Order Job/Part Q’ty Remarks
17 Bolt 2
18 Bracket 1
19 Bolt 2
20 Shift rod bracket 1
21 Bushing 2
22 Shift rod 1
23 Grommet 1
24 O-ring 1
For installation, reverse the removal
procedure.
4
1
7
8
12
13
14
15
16
21
17
22
23
24
18 Nm (1.8 m • kgf, 13 ft • Ib)
20
6
2
3
19
5
21
11
9
10
6 × 40 mm
6 × 25 mm
4 × 16 mm
18
6 × 12 mm
A
A
