Yamaha F115A - Page 516

7-19
BRKT
E

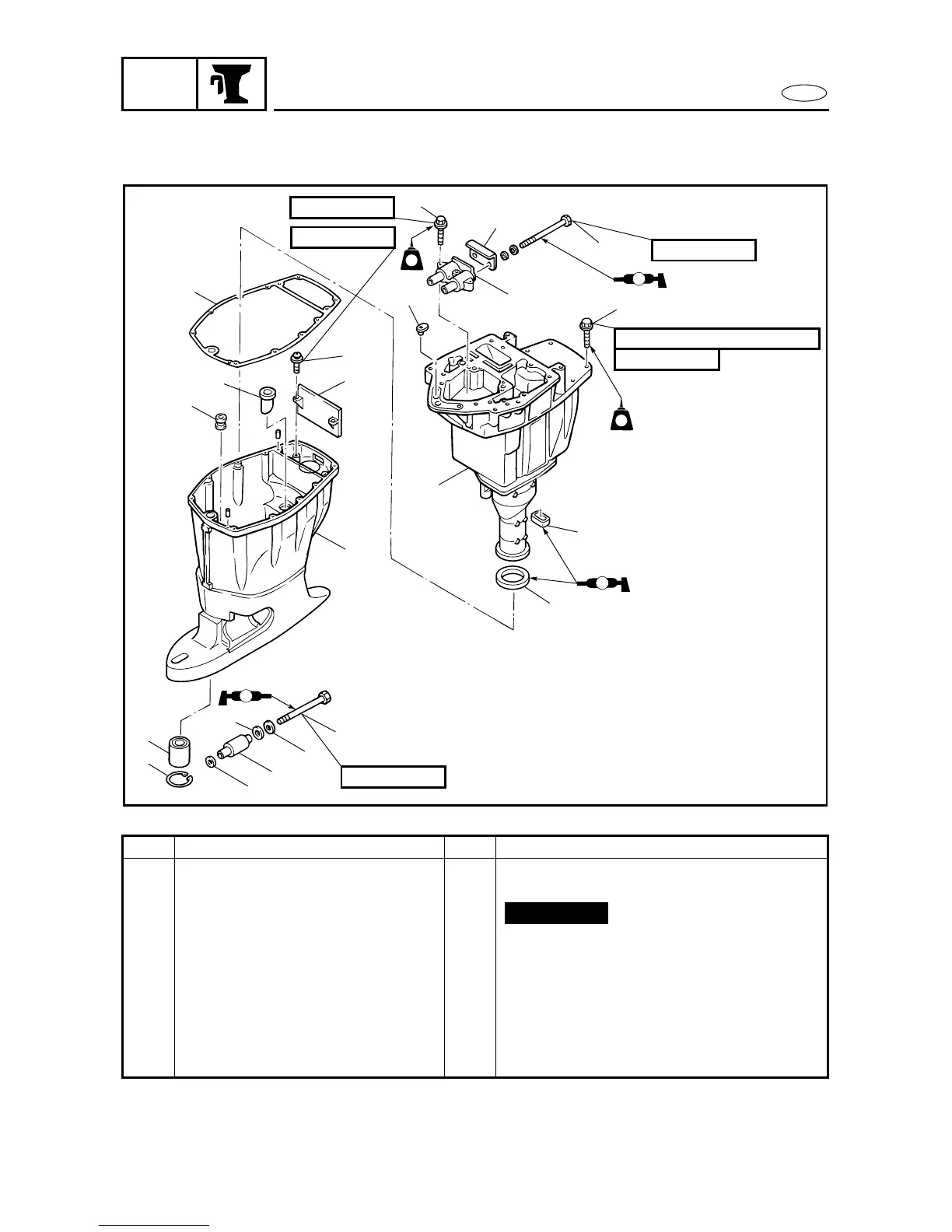

UPPER CASE ASSEMBLY
7
Order Job/Part Q’ty Remarks
10 Bolt 4
11 Muffler assembly 1
12 Gasket 1
13 Rubber gasket 1
14 Rubber seal 1
15 Grommet 1
16 Screw 2
17 Baffle plate 1
18 Damper 1
Continued on next page.
1
2
15
3
4
5
6
7
9
8
10
13
14
11
16
18
19
21
20
22
17
12 × 193 mm
8 × 40 mm
8 × 45 mm
6 × 15 mm
14 × 235 mm
LTLT
LT
572
LTLT
LT
572
A
A
A
20 Nm (2.0 m • kgf, 14 ft • Ib)
12
7080
Not reusable
