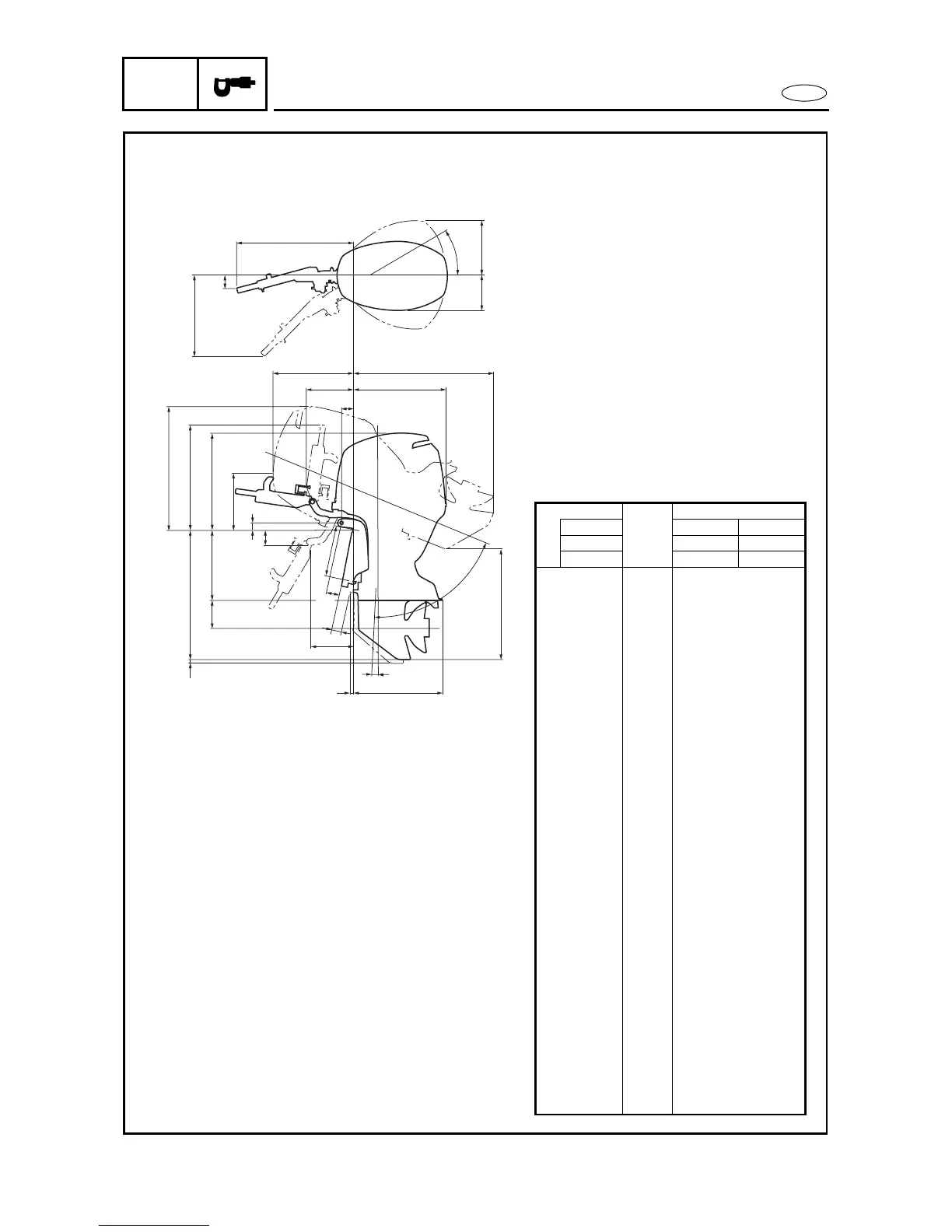

MAINTENANCE SPECIFICATIONS
H9
H5
H2
H7
H10
H8
H4
H3
L8
L9 L4
A3
A2
H6
L5
C3
B6
H1
H11
L7 L6
L1L2
L10
W6
W2
L3
A1
W5
W1
Symbol
Unit
Models
Worldwide F115AET FL115AET
USA F115TR LF115TR
Canada F115TR LF115TR
A1 Degree 30
A2 Degree 70
A3 Degree 3.24
B6 mm (in) 367 (14.4)
C3 mm (in) 82 (3.2)
L1 mm (in) 665 (26.2)
L2 mm (in) 316 (12.4)
L3 mm (in) 832 (32.8)
L4 mm (in) 631 (24.8)
L5 (L) mm (in) 69 (2.7)
(X) mm (in) 89 (3.5)
L6 (L) mm (in) 1,005 (39.6)
(X) mm (in) 1,122 (44.2)
L7 mm (in) 555 (21.9)
L8 mm (in) 294 (11.6)
L9 (L) mm (in) 25 (1.0)
(X) mm (in) 33 (1.3)
H1 (L) mm (in) 929 (36.6)
(X) mm (in) 1,056 (41.6)
H2 mm (in) 681 (26.8)
H3 mm (in) 191 (7.5)
H4 (L) mm (in) 516 (20.3)
(X) mm (in) 643 (25.3)
H6 (L) mm (in) 773 (30.4)
(X) mm (in) 850 (33.5)
H7 mm (in) 406 (16.0)
H8 mm (in) 105 (4.1)
H9 mm (in) 879 (34.6)
H10 mm (in) 44 (1.7)
H11 mm (in) 25 (1.0)
W1 mm (in) 249 (9.8)
W2 mm (in) 93 (3.7)
W5 mm (in) 392 (15.4)
W6 mm (in) 574 (22.6)
