IGNITION SYSTEM

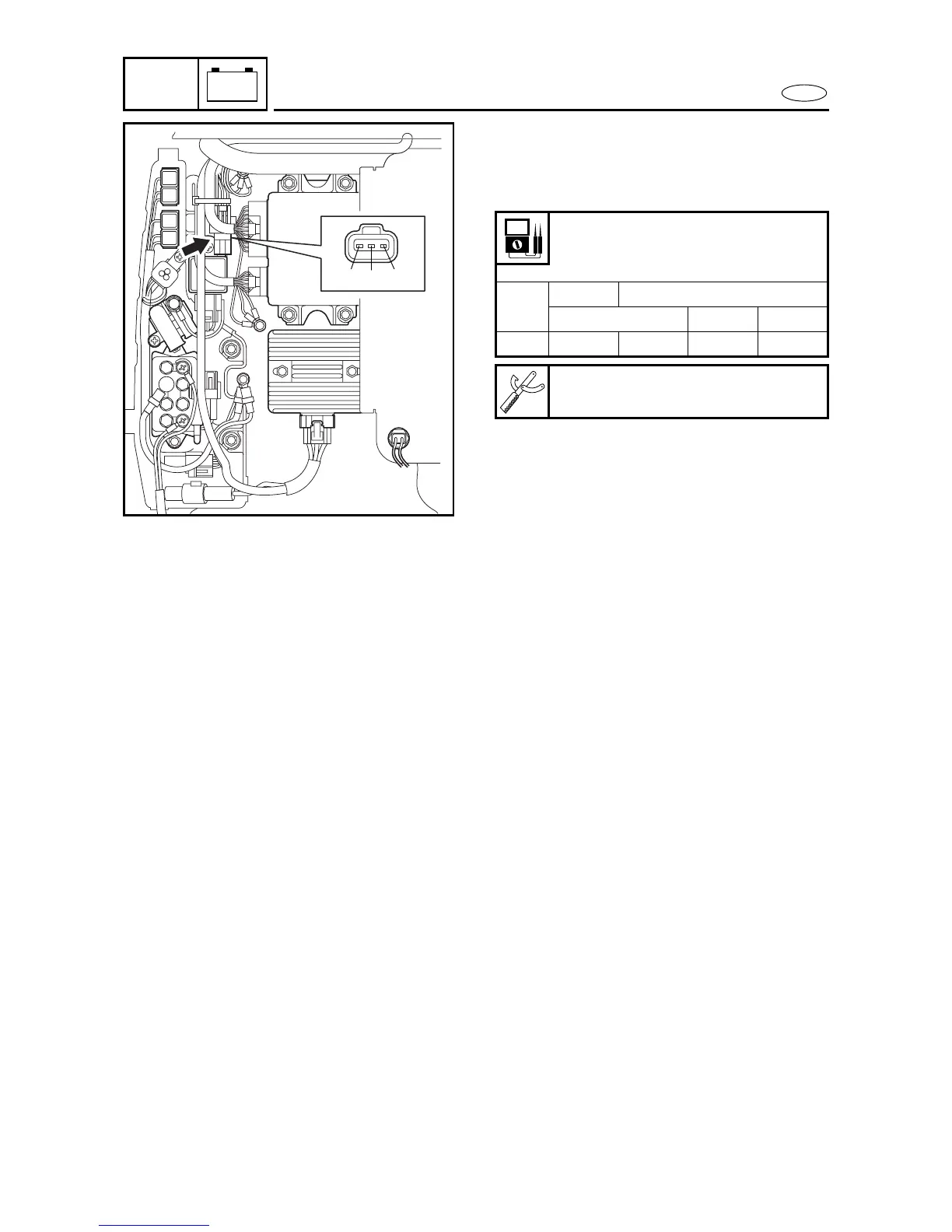

2. Measure:
• Pulser coil output peak voltage
Below specification → Replace the
pulser coil.
Pulser coil output peak voltage
White/black (W/B) – Black (B)
White/red (W/R) – Black (B)
r/min
Circuit Loaded
Cranking 1,500 3,500
V 3.5 3.0 26 44
Test harness (3-pin)
90890-06791
W/R W/BB
8210
