Yamaha F115A - Page 638

8-26
–+
ELEC
E

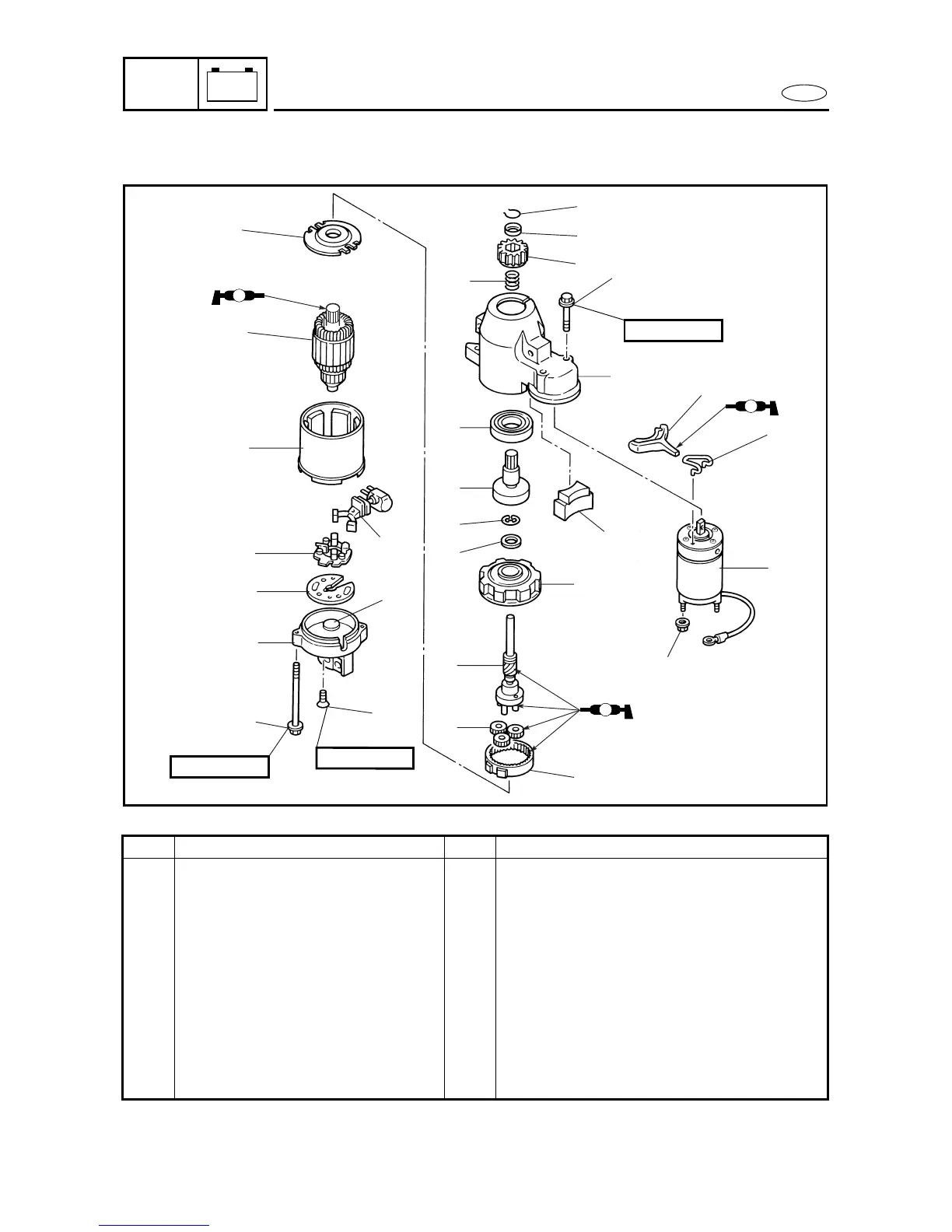

STARTER MOTOR
8
8
Order Job/Part Q’ty Remarks
10 Bolt 2
11 Screw 2
12 Yoke assembly 1
13 Rear cover 1
14 Thrust washer 1
15 Plate 1
16 Brush holder assembly 1
17 Brush assembly 1
18 Armature 1
19 Center bracket plate 1
Continued on next page.
3
1
5
20
29
25
4
24
22
21
2
28
27
23
26
8
6
7
19
18
12
17
16
15
13
14
11
10
4 × 14 mm
6 × 120 mm
6 × 52 mm
9
A
A
A
