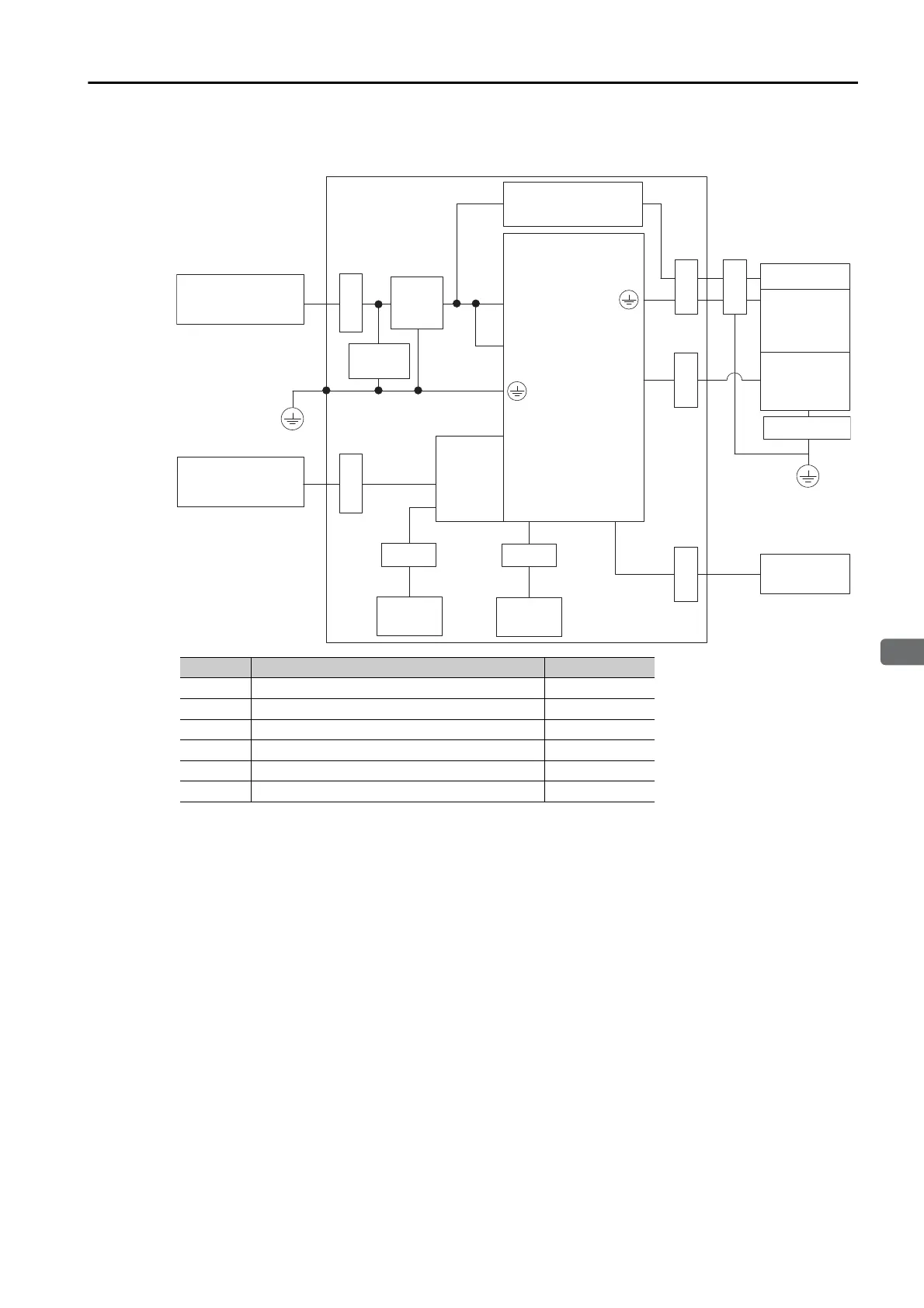

3.7 EMC Installation Conditions

3-11

Installation

• Single-Phase, 100 VAC

Symbol Cable Name Specification

 I/O Signal Cable Shielded cable

 Safety Function Device Cable Shielded cable

 Servomotor Main Circuit Cable Shielded cable

 Encoder Cable Shielded cable

 Main Circuit Power Cable Shielded cable

 Cable for Serial Command Communications Shielded cable

CN1

CN2













Host controller

Clamp

INDEXER

Module

CN12

CN11

Safety device



Clamp

CN8

L1C and L2C

L1 and L2

U, V, and W

Noise

filter

Surge

absorber

Clamp

Brake

Servomotor

Encoder

Brake power supply

SERVOPACK

I/O

controller

Shield box

Power supply:

Single-phase, 100 VAC

ClampClamp

Clamp

Clamp Clamp

Clamp

I/O

controller
