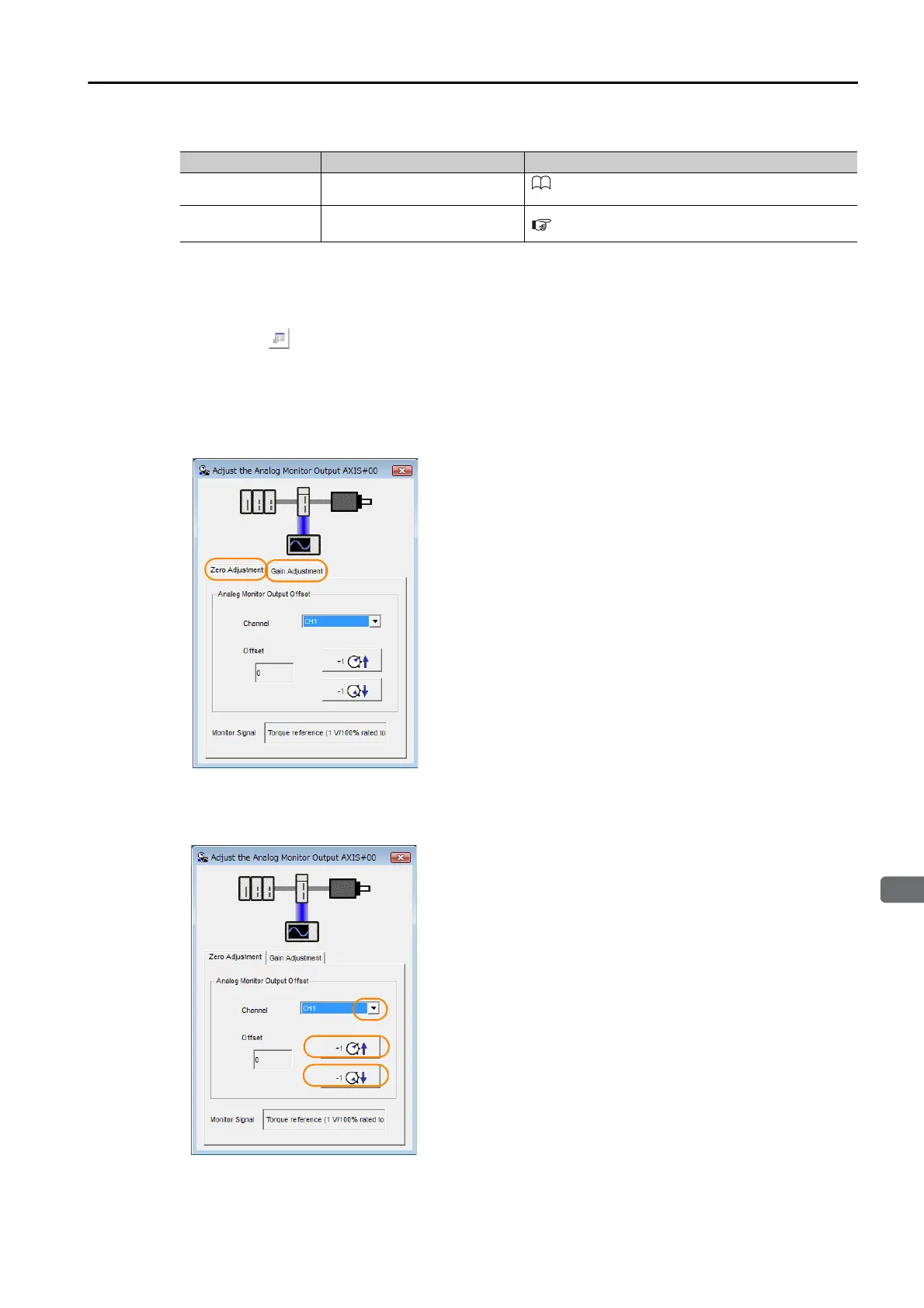

9.3 Monitoring Machine Operation Status and Signal Waveforms
9.3.3 Using the Analog Monitors
9-13
• Gain Adjustment
Operating Procedure
Use the following procedure to adjust the analog monitor output.
1.
Click the Servo Drive Button in the workspace of the Main Window of the Sig-
maWin+.
2.
Select Adjust the Analog Monitor Output in the Menu Dialog Box.
The Adjust the Analog Monitor Output Dialog Box will be displayed.
3.
Click the Zero Adjustment or Gain Adjustment Tab.
4.
While watching the analog monitor, use the +1 and -1 Buttons to adjust the offset.
There are two channels: CH1 and CH2. If necessary, click the down arrow on the Channel Box and
select the channel.
This concludes adjusting the analog monitor output.
Tool Function Operating Procedure Reference
Digital Operator Fn00D
Σ-7-Series Digital Operator Operating Manual
(Manual No.: SIEP S800001 33)
SigmaWin+
Setup - Analog Monitor Out-
put Adjustment
Operating Procedure on page 9-13
