13.5 ZONE Outputs
13.5.4 ZONE Output Application Example
13-62

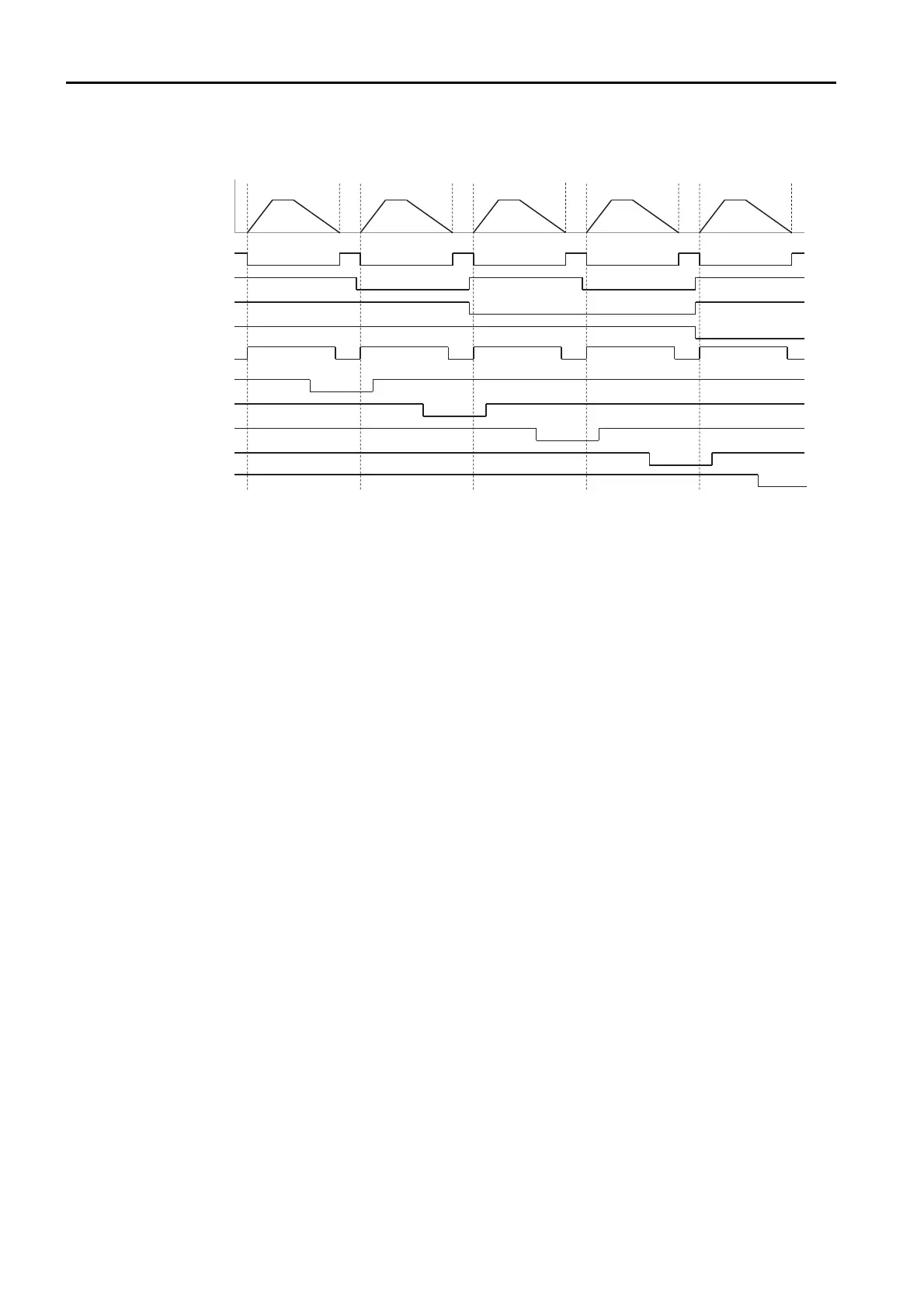

The relationship between the operation pattern, ZONE signals, and /POUT signal is shown in
the following figure.
/Z1 (/POUT1)
/Z2 (/POUT2)
/Z3 (/POUT3)
/Z4 (/POUT4)
Operation
Pattern
/START-STOP
/SEL0
/INPOSITION
Speed
Time
/SEL1
/SEL2
Step 0
/Z0 (/POUT0)
Step 1
Step 2
Step 3
Step 4
