Call to the Public Network via a Gateway PINX with Overflow Routing
and Automatic CLIP = no
User B (330) on PINX 2 calls user F on the public network via PINX 3 as all the availa-
ble communication channels between PINX 2 and PINX 1 are busy.
PINX 3 does not have a DDI number for user B.
Automatic CLIP = no is set in the user configuration of user B. The CLIP settings of
the user configuration are used:
• CLIP number = 55 555 55 53
• NPI = E.164
• TON = national

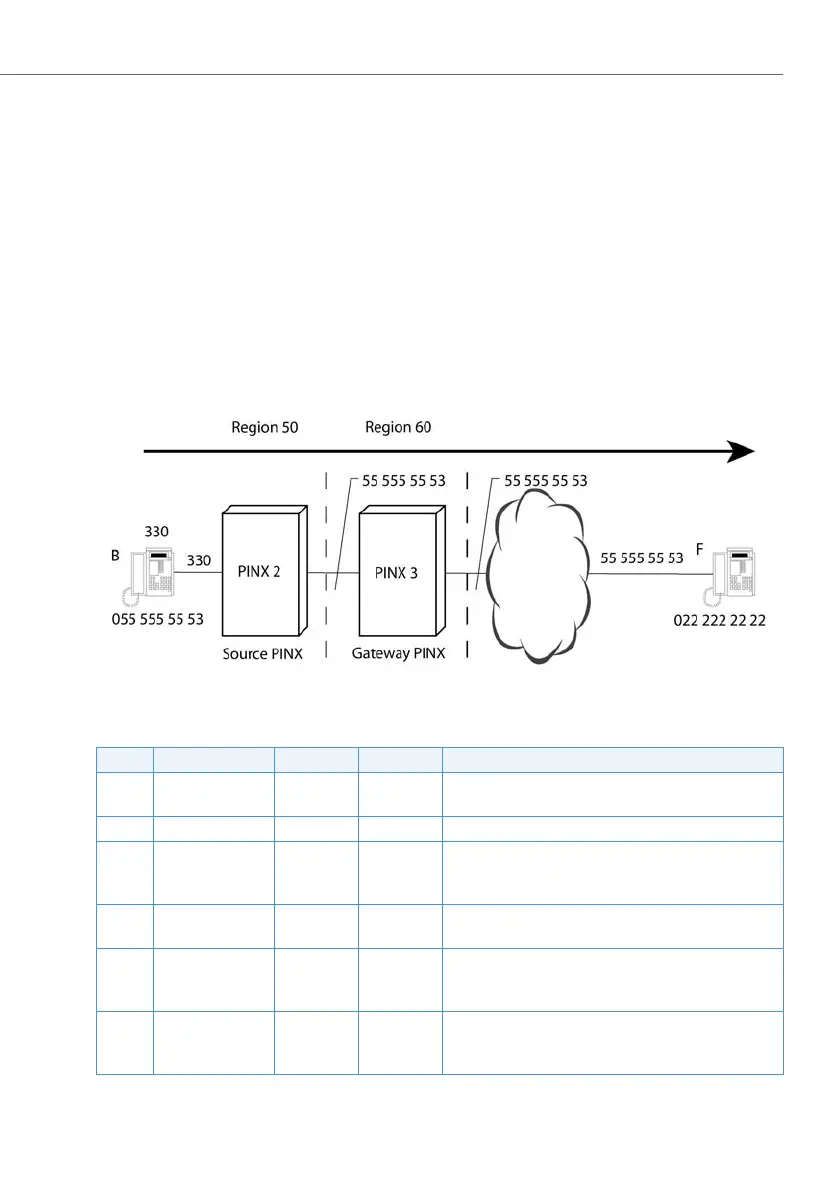

Fig. 40 Example 5: User B calls user F (excerpt from Fig. 35)
Tab. 29 Example 5: Creating and presenting user B’s CLIP number
Step CLIP number NPI TON Description
1 330 PNP level 0 User B → PINX 2
• A suitable DDI number is not searched for.
2 55 555 55 53 E.164 National PINX 2 → PINX 3
3 55 555 55 53 E.164 National PINX 3
• CLIP No. is buffered unchanged
• A suitable DDI number is not searched for.
4 55 555 55 53 E.164 National PINX 3 → Exchange
• CLIP No. is sent unchanged to the public network.
5a 055 555 55 53 Exchange → User F
• Presentation on the terminal if special arrangement
is available (see page 77).
5b 066 666 66 60 Exchange → User F
• Presentation on the terminal if special arrangement
is not available (see page 77).
