Identification elements
98
System functions and features as of R3.0
syd-0367/1.3 – R3.0 – 03.2013
4. 7 Examples of CLIP Displays in the PISN
Various scenarios are used in a sample network to illustrate how CLIP displays are
handled in a PISN.Fig. 35 shows the sample network.

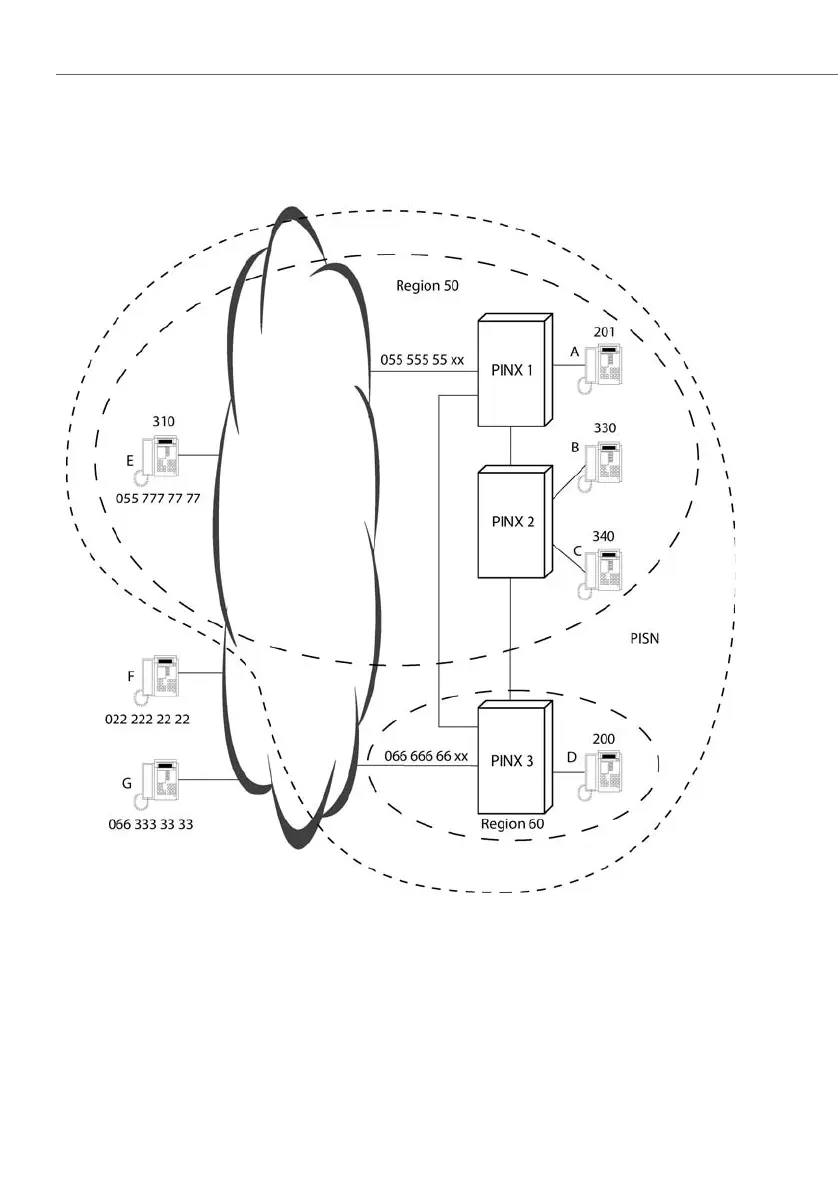

Fig. 35 Sample network: PISN with two regions and one virtual network user
