System interfaces
23
System functions and features as of R3.0
syd-0367/1.3 – R3.0 – 03.2013
2. 1. 1. 3 Point-to-Point and Point-to-Multipoint Connections
Basic accesses can be configured as point-to-point or as point-to-multipoint (TEI
Management setting in the configuration of the network interfaces).
Point-to-Multipoint Connection without a communication server
The basic access in point-to-multipoint configuration allows a selective dial-up of
the terminals connected in parallel using MSN, the Multiple Subscriber Number.
Here the network itself provides a kind of direct dialling, so to speak.
NT1: Network Termination
MSN: Multiple Subscriber Number

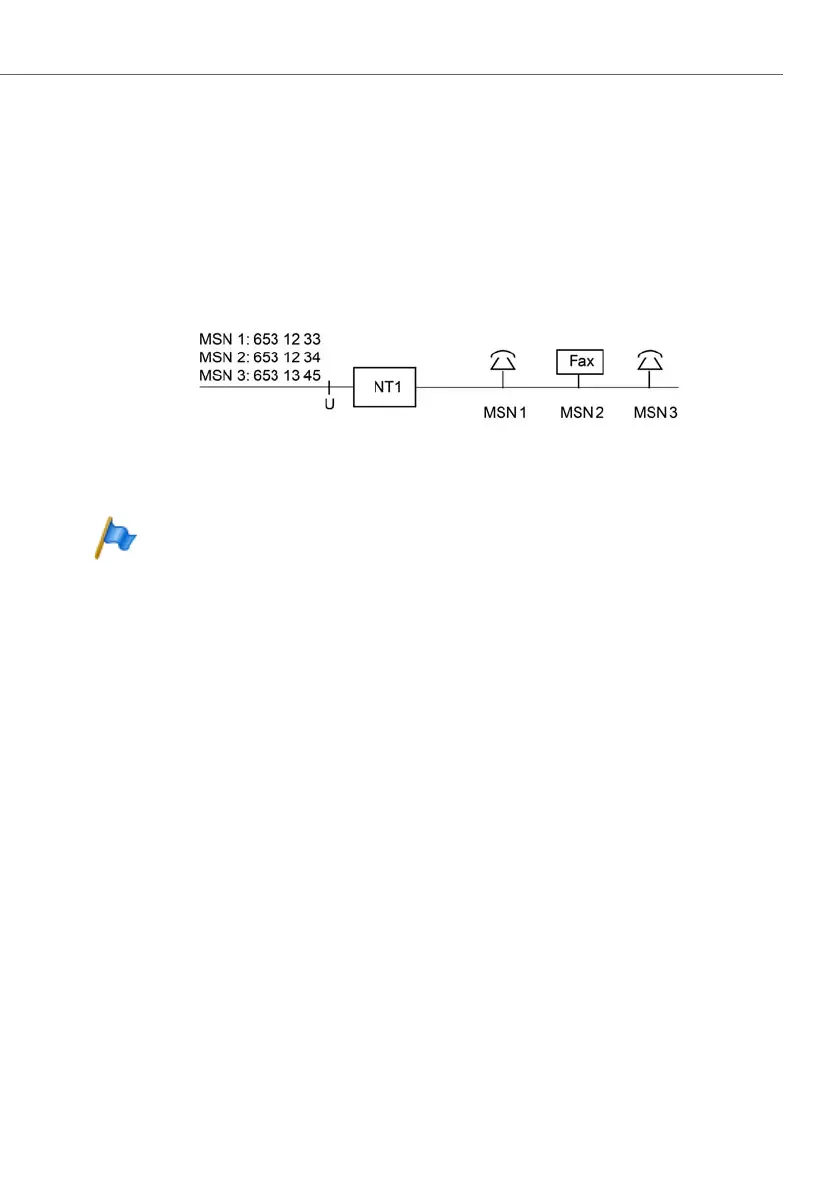

Fig. 3 Single basic access in point-to-multipoint configuration
Note:
The fax with ISDN connection is implemented as a fax card in a PC.
Default setting:
Digital network interfaces are set on point-to-point configuration.
