Call logging (CL)
344
System functions and features as of R3.0
syd-0367/1.3 – R3.0 – 03.2013
Example of PC1 format
The charge data is printed out every time the handset goes on-hook. This also ap-
plies in cases where an external connection is forwarded.

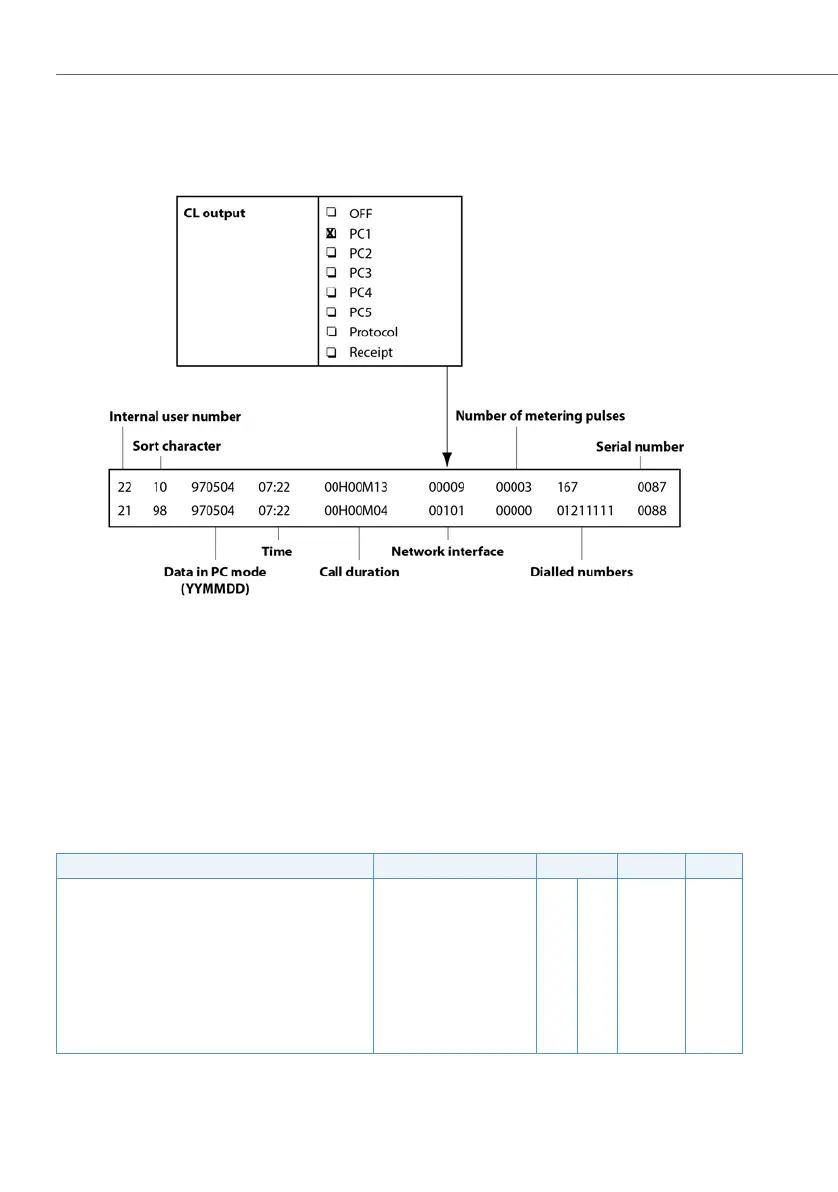

Fig. 171 CL output with PC1
8. 7. 7. 2 PC2 format
This format is an extension of the PC1 format. Here the cost centre number is also
output as a separate field, along with the DDI number.
Format structure
Tab. 136 PC2 format
Data field, meaning Structure Format Length Offset
Start of data record HT 1 0
User number ttttt |- SP 5 1
Cost centre number kkkkkkkkk |- SP 9 7
Sort character oo 00 -| 2 17
Date of start of connection yymmdd 00 -| 6 20
Time of start of connection hh:mm 00 -| 5 27
Duration of connection hhHmmMss 00 -| 8 33
